Relative Humidify

After running for prescribed length of time on recirculated air and maximum cooling, relative humidity will remain at approximately 35-40% regardless of ambient temperature or humidity. In areas of high humidity, thermometer and gauge readings may approach but not reach specifications listed even though system is operating in a satisfactory manner. However, low pressures that are too low may result in ice gradually forming on evaporator fins resulting in insufficient or no cooling.

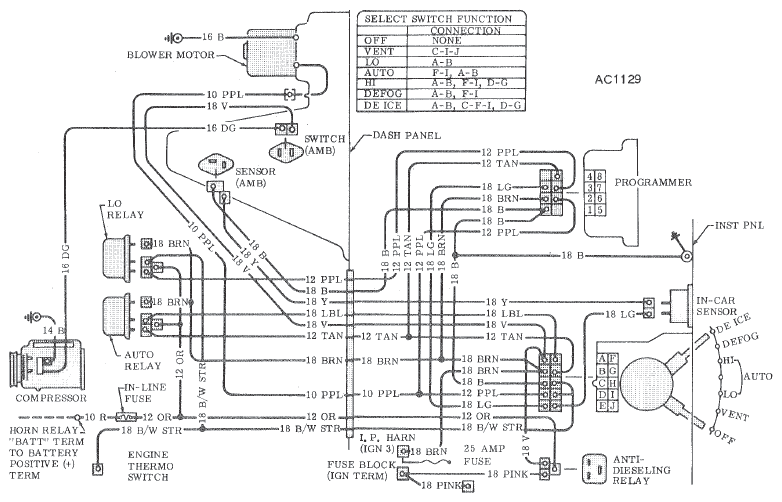

Fig 1: Chevrolet Wiring Diagram (Schematic)
G09311421Courtesy of GENERAL MOTORS COMPANY
