Center Link: Installation

Connect center link to idler arm, making certain idler stud seal is in place, then tighten nut. Install end of rod in pitman arm, and tighten nut. Install tie rod ends, tighten nuts and install new cotter pins. Lower vehicle and adjust toe-in. See Wheel Alignment Specifications & Procedures in WHEEL ALIGNMENT Section.

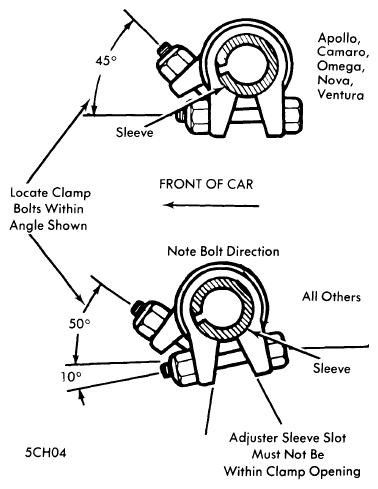

Fig 1: Tie Rod Clamp Positioning (General Motors) (Exc. "H" Series, Eldorado & Toronado)

Courtesy of NOT AVAILABLE
