Tune-Up - V8: Distributor

All models are equipped with High Energy Ignition systems and no adjustments are required.

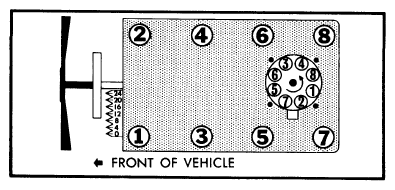

Fig 1: 4.3L (260" & 265"), 4.9L (301") & 5.0L (307") Firing Order and Timing Marks
G09317549Courtesy of GENERAL MOTORS COMPANY

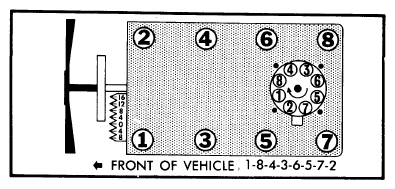

Fig 2: 4.4L (267"), 5.0L (305") & 5.7L (350") Firing Order and Timing Marks
G09317550Courtesy of GENERAL MOTORS COMPANY

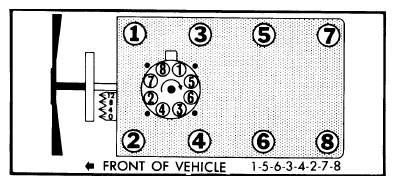

Fig 3: 6.0L (368") Firing Order and Timing Marks
G09317551Courtesy of GENERAL MOTORS COMPANY
