Wiper Switch: Service and Repair

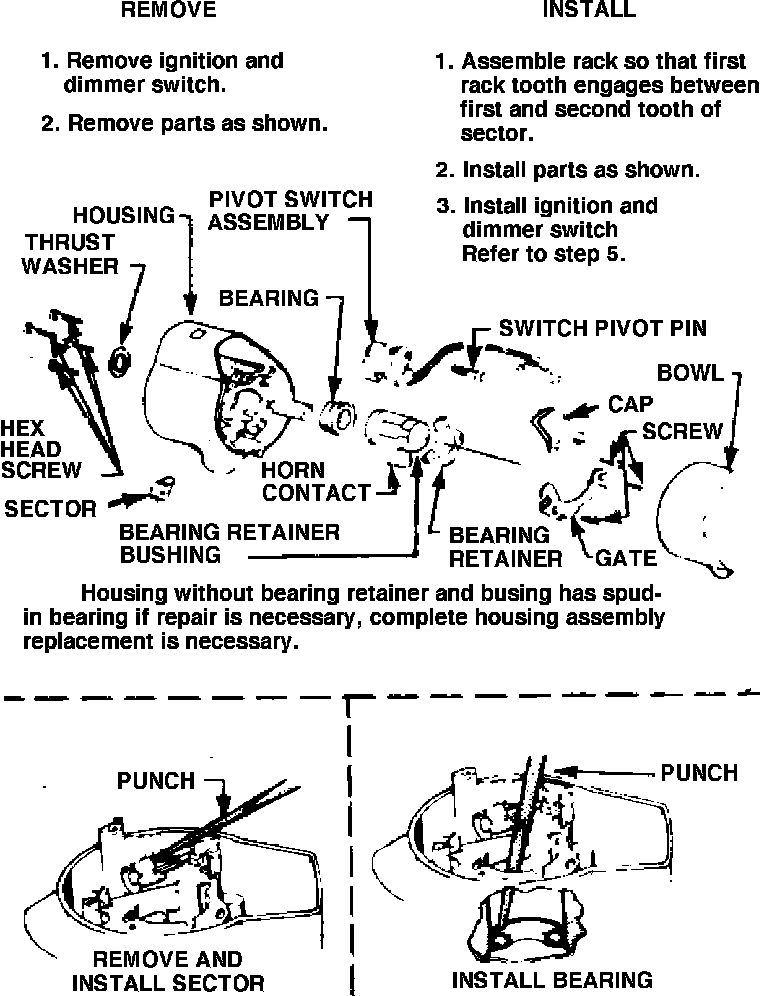

Fig. 17 Column mounted wiper switch removal. 1982---88 w/standard column:

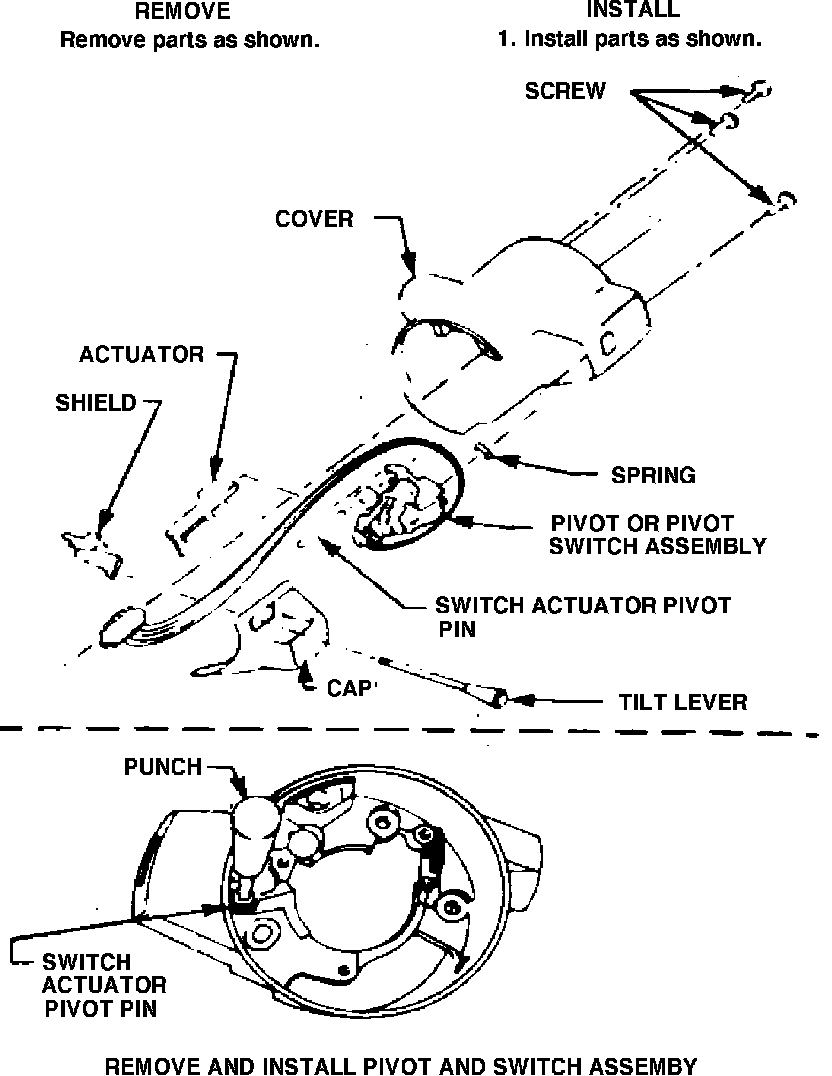

Fig. 18 Column mounted wiper switch removal. 1982---88 w/tilt column:

Fig. 19 Wiper switch pivot removal. Models w/column mounted switch:

CAMARO EXC. 1984-86 BERLINETTA, 1983 MALIBU, 1983---88 MONTE CARLO, 1984-88 CHEVROLET

1. Disconnect battery ground cable and remove turn signal switch as outlined.
2. Remove ignition lock, ignition switch and dimmer switch as outlined.
3. Remove ignition lock housing retaining screws and housing, Figs. 17 and 18.
4. Remove pivot bolt and wiper switch from lock housing, Fig. 19.
5. Reverse procedure to install.
