Ignition Coil: Locations

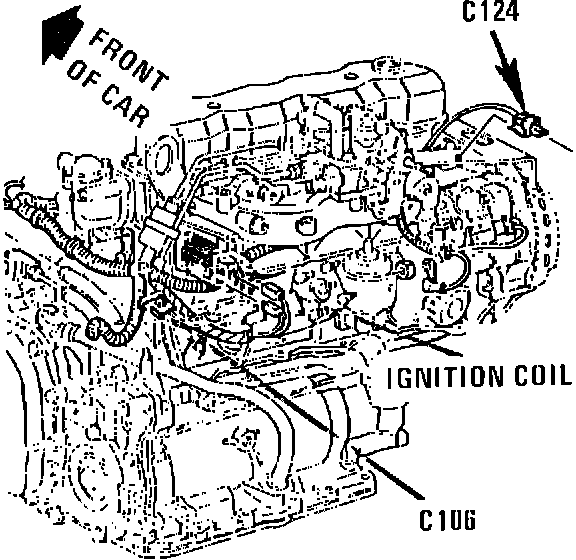

Rear Of Engine.:




Rear Of Engine, Below LH Side Of Valve Cover

Applicable to: 1982-83 Celebrity w/4-151

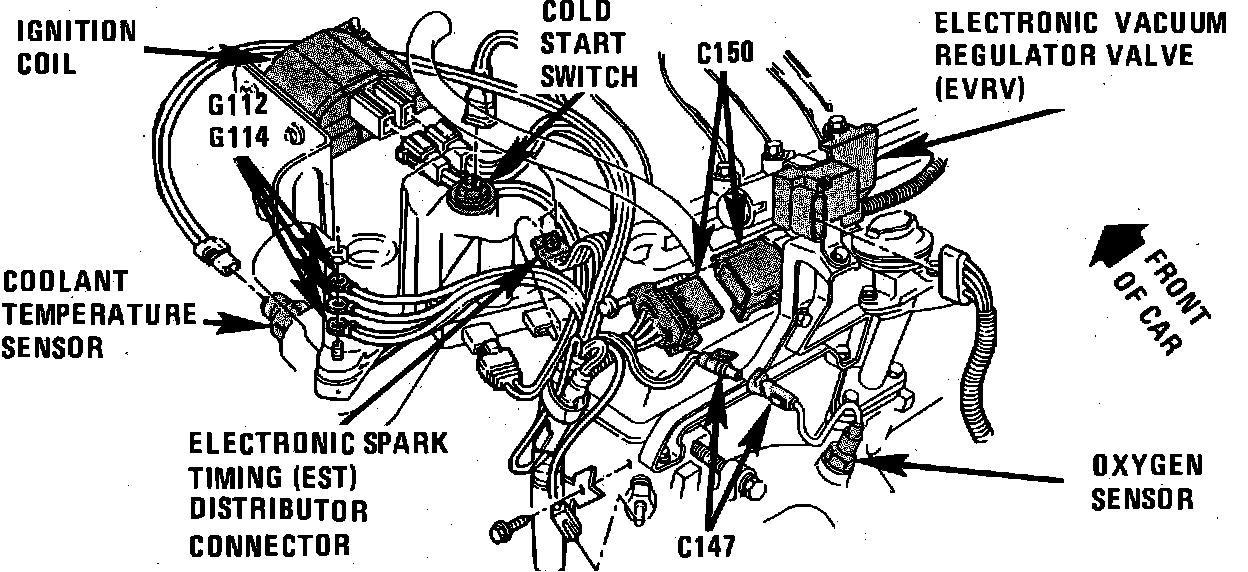

LH Rear Of Engine.:




Rear Of Engine, Below LH Side Of Valve Cover

Applicable to: 1984-85 Celebrity w/4-151

LH Rear Engine.:




Rear Of Engine

Applicable to: Celebrity w/V6-173 VIN W

LH Side Of Engine.:




Rear Of Engine

Applicable to: 1984-85 Celebrity w/V6-173 VIN X
