Removal

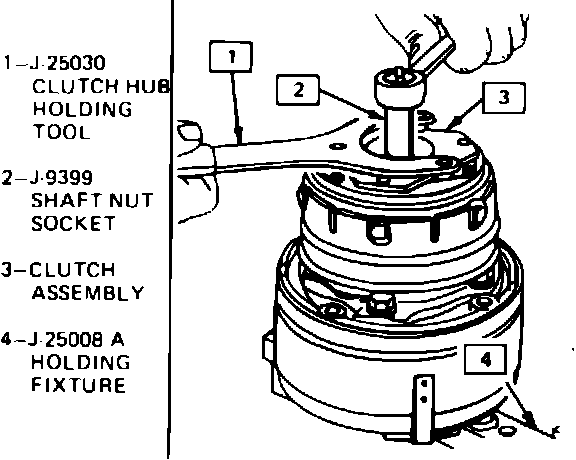

Fig. 2 Replacing compressor shaft nut:

1. With compressor secured to a suitable holding fixture and clamped in a vise, remove shaft nut using tools J-25030 and J-9399.

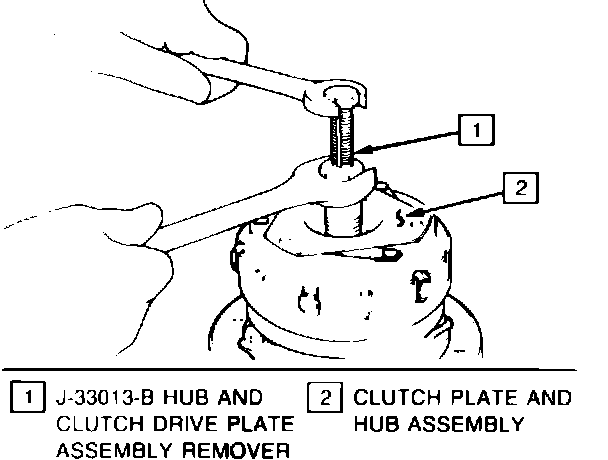

Fig. 3 Removing clutch plate & hub assembly:

2. Using tool J-33013-B, remove clutch plate and hub assembly and shaft key, Fig. 3.
