System Check - High Energy Ignition (HEI) System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Check - High Energy Ignition (HEI) System

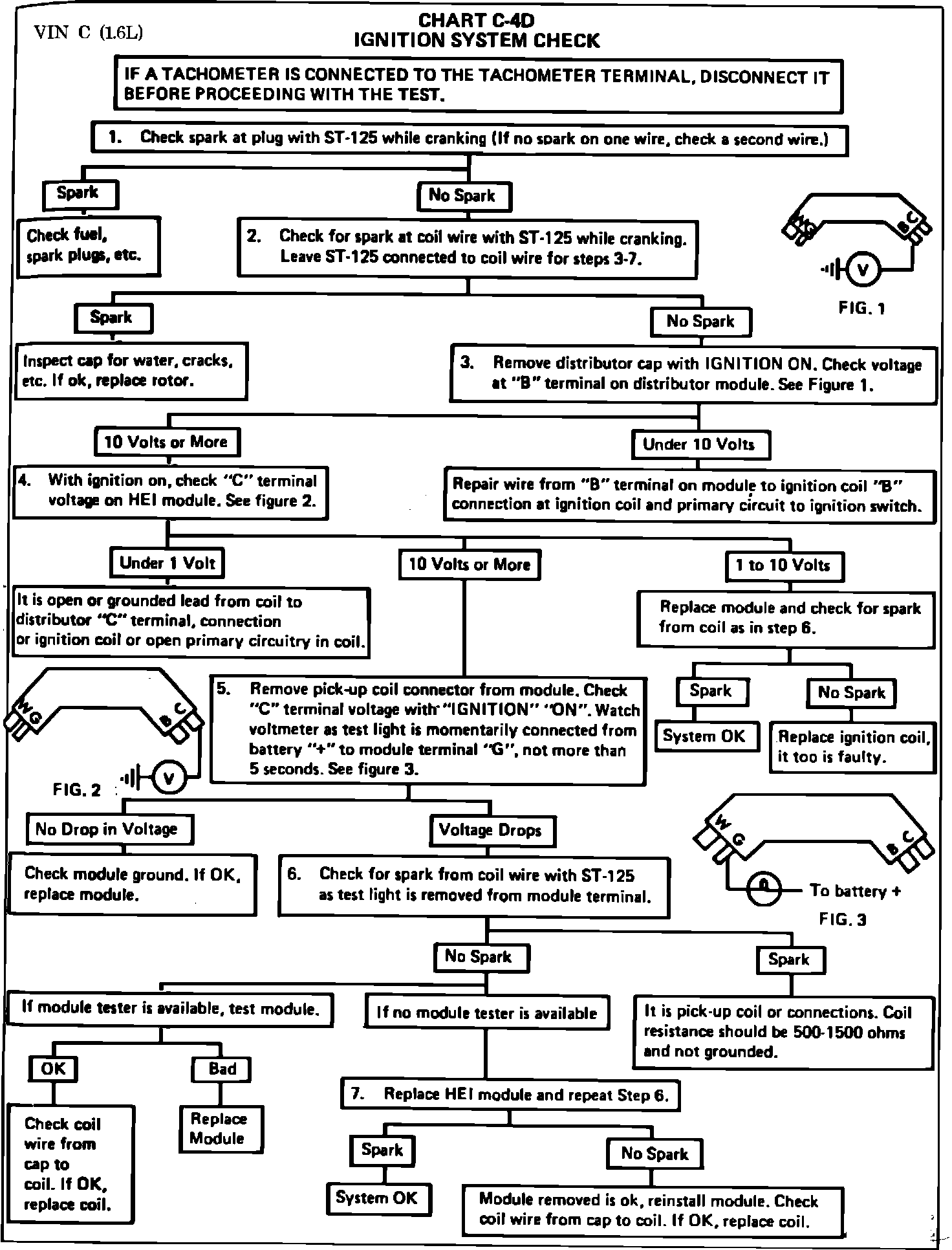

Fig. 037 - Chart C-4D Ignition System Check.:
