Home >> Chevrolet >> 1982 >> Malibu V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> Electronic/Engine Control Module (ECM)

April 5, 2026: LEMON Manuals is launched! Read the announcement.

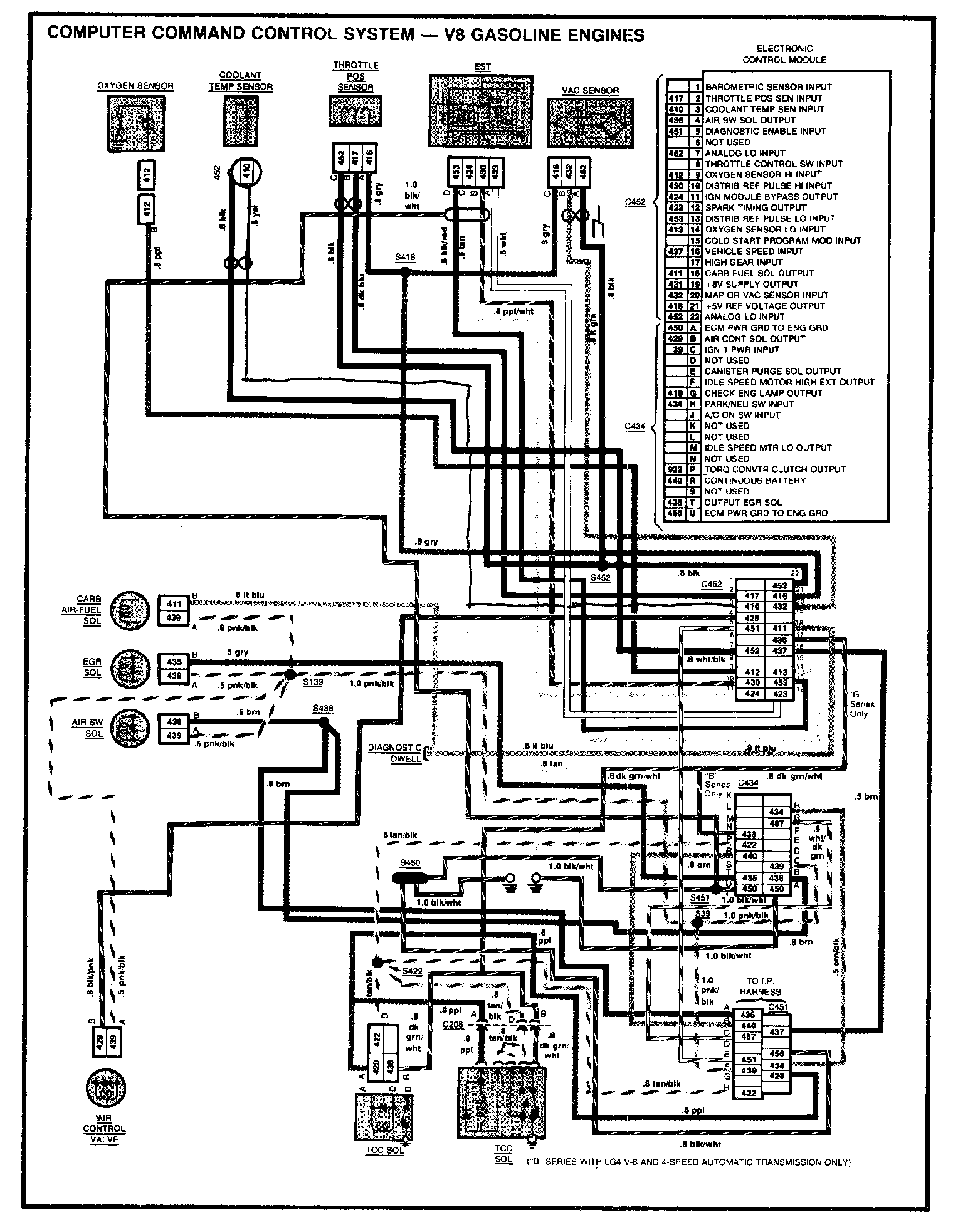

Electronic/Engine Control Module (ECM)
