System Performance Check

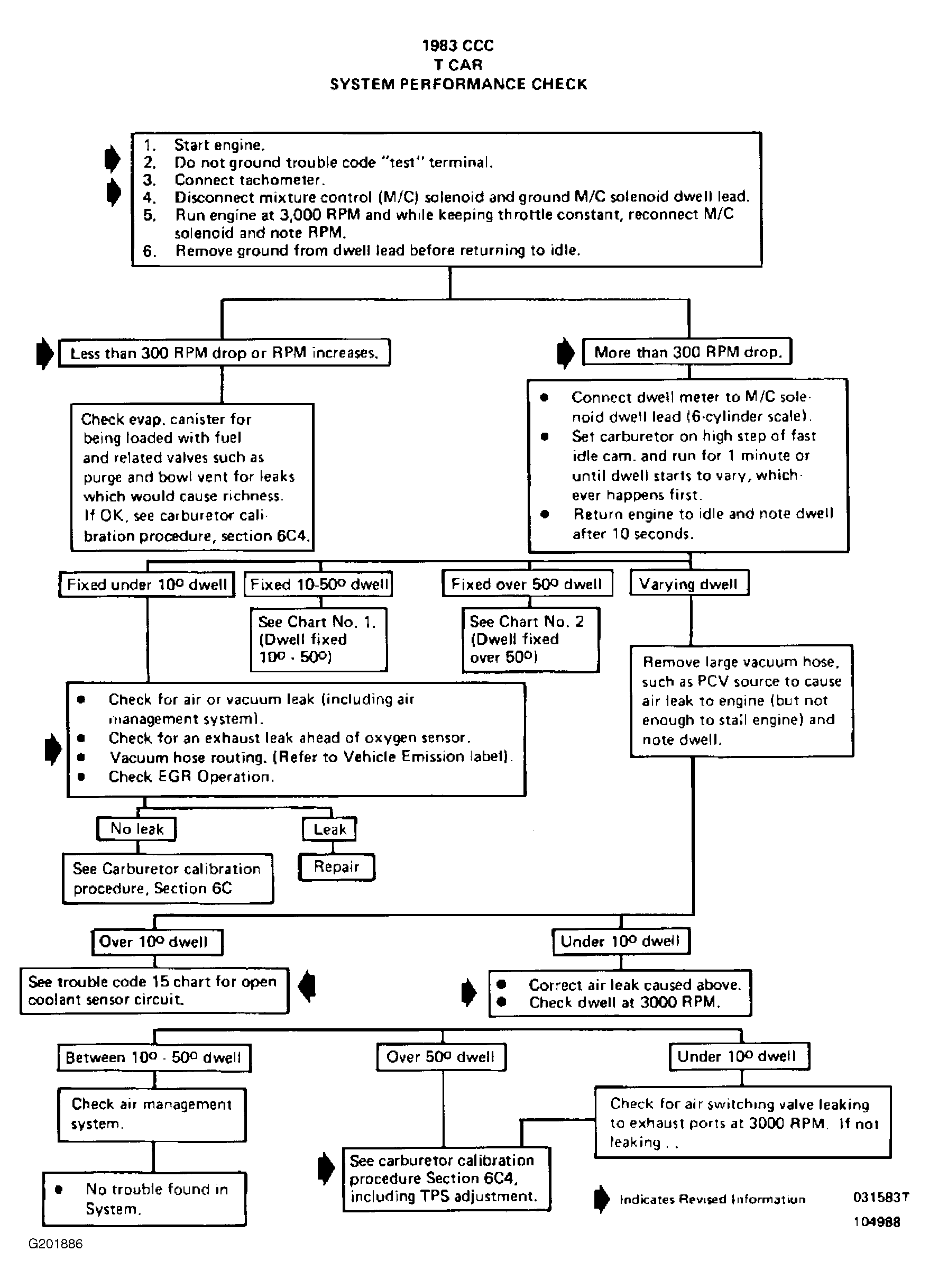

Fig 1: Flow Chart - System Performance Check Chart

G201886

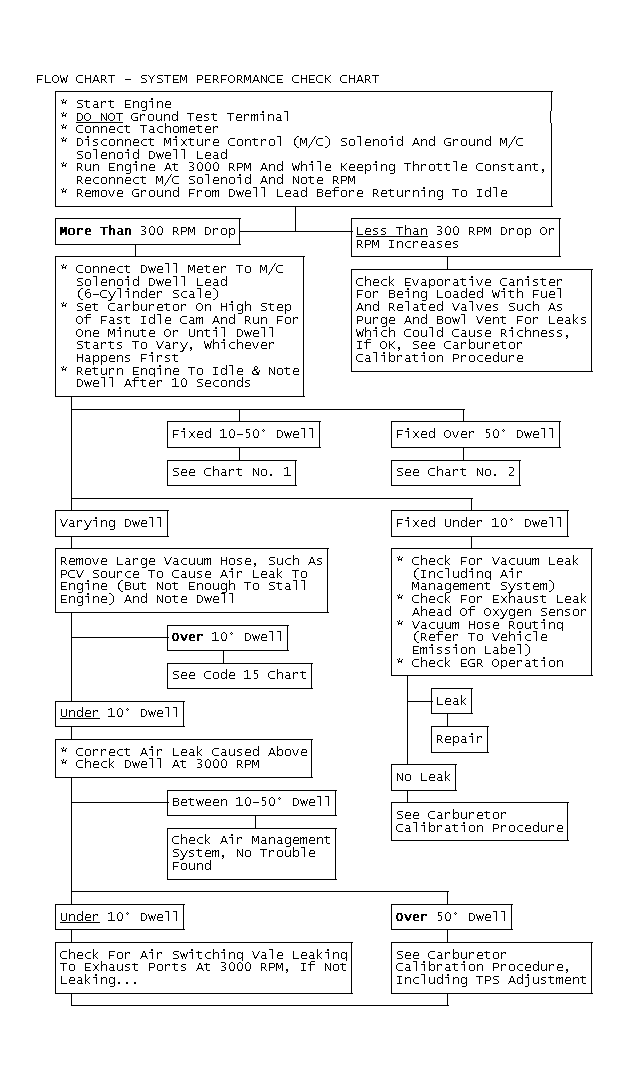

Fig 2: Flow Chart - System Performance Check Chart

GB0045532
