Code 15 - Open Coolant Temperature Sensor (Cts) CKT

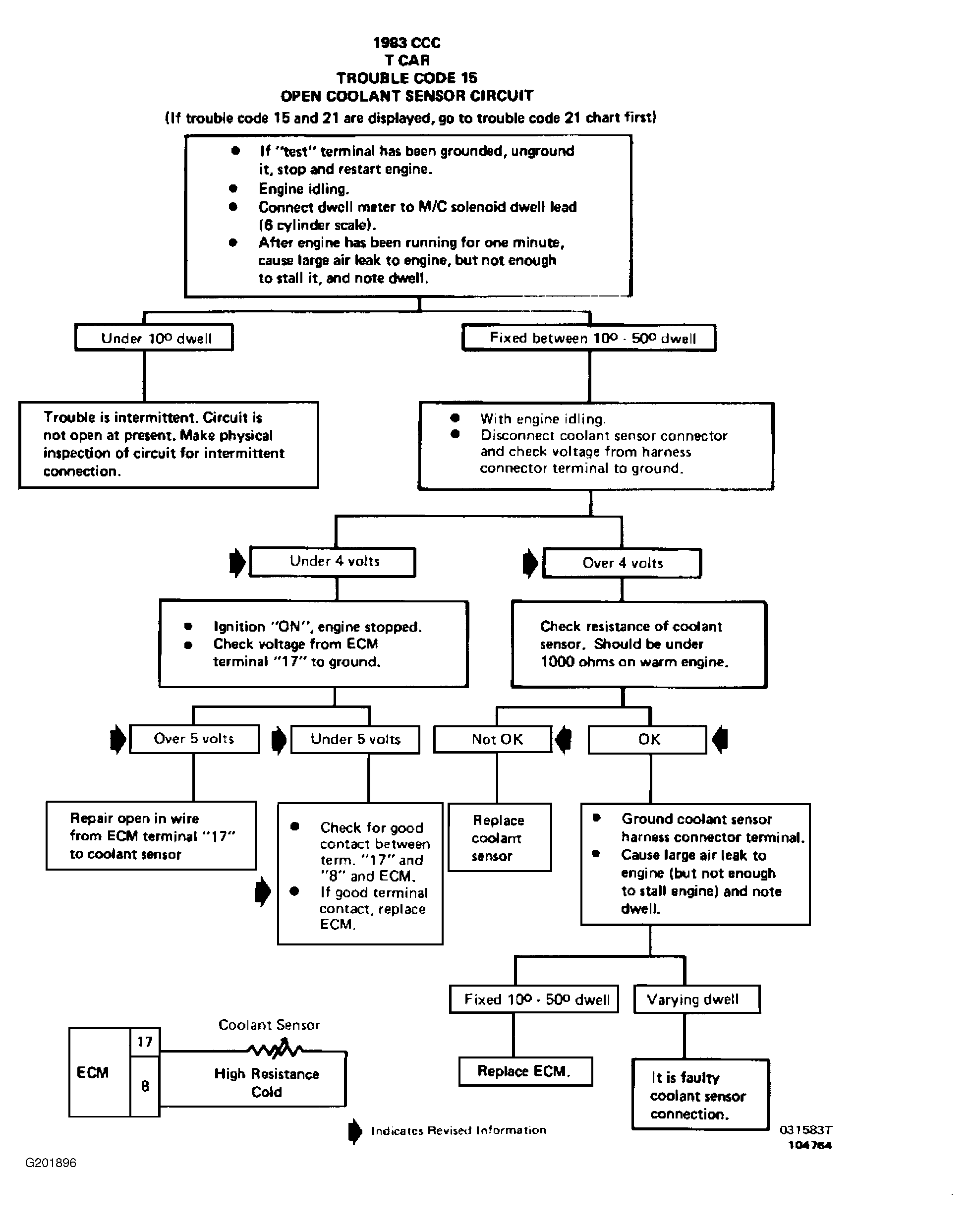

Fig 1: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit

NOTE: If trouble code 15 and 21 are displayed, go to trouble code 21 chart first.

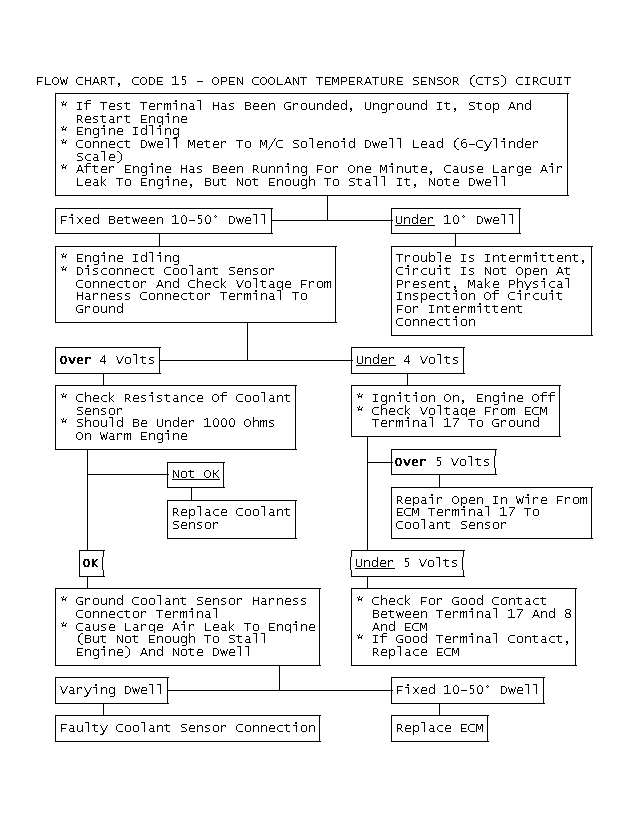

Fig 2: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit
