Code 13: Open O2 Sensor Circuit

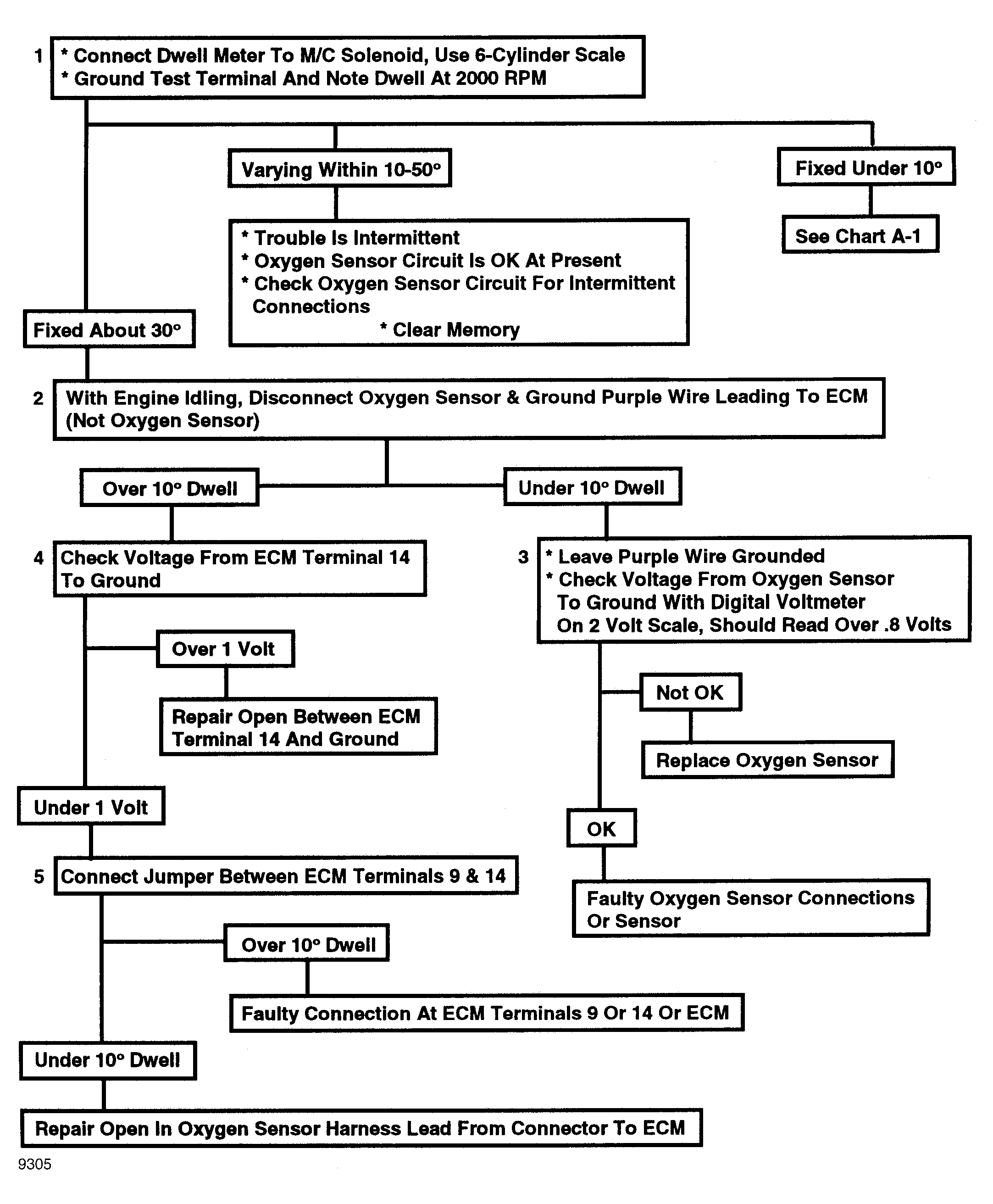

Fig 1: Code 13: Open Oxygen Sensor Circuit Flow Chart

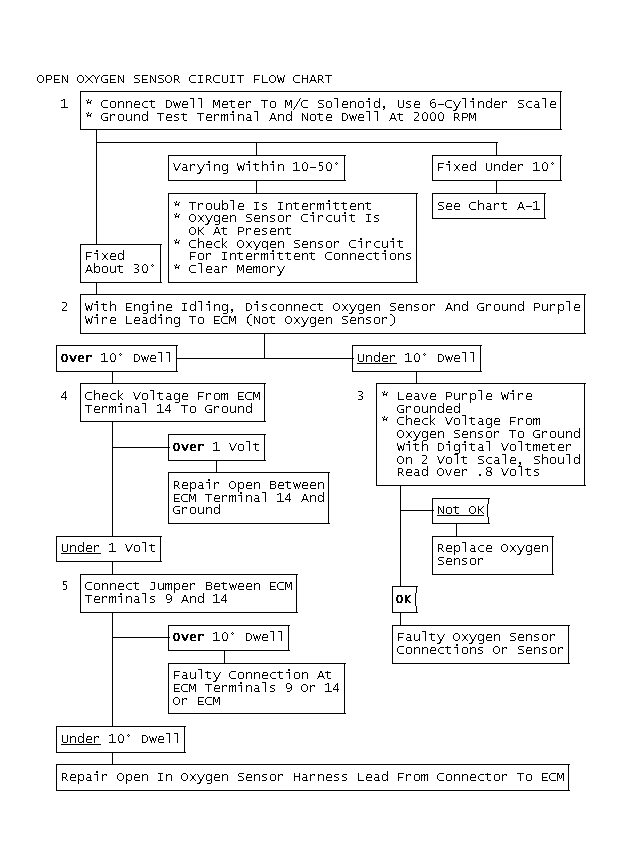

Fig 2: Open Oxygen Sensor Circuit Flow Chart
