Component Testing

NOTE: See Fig 1 and Fig 2 .

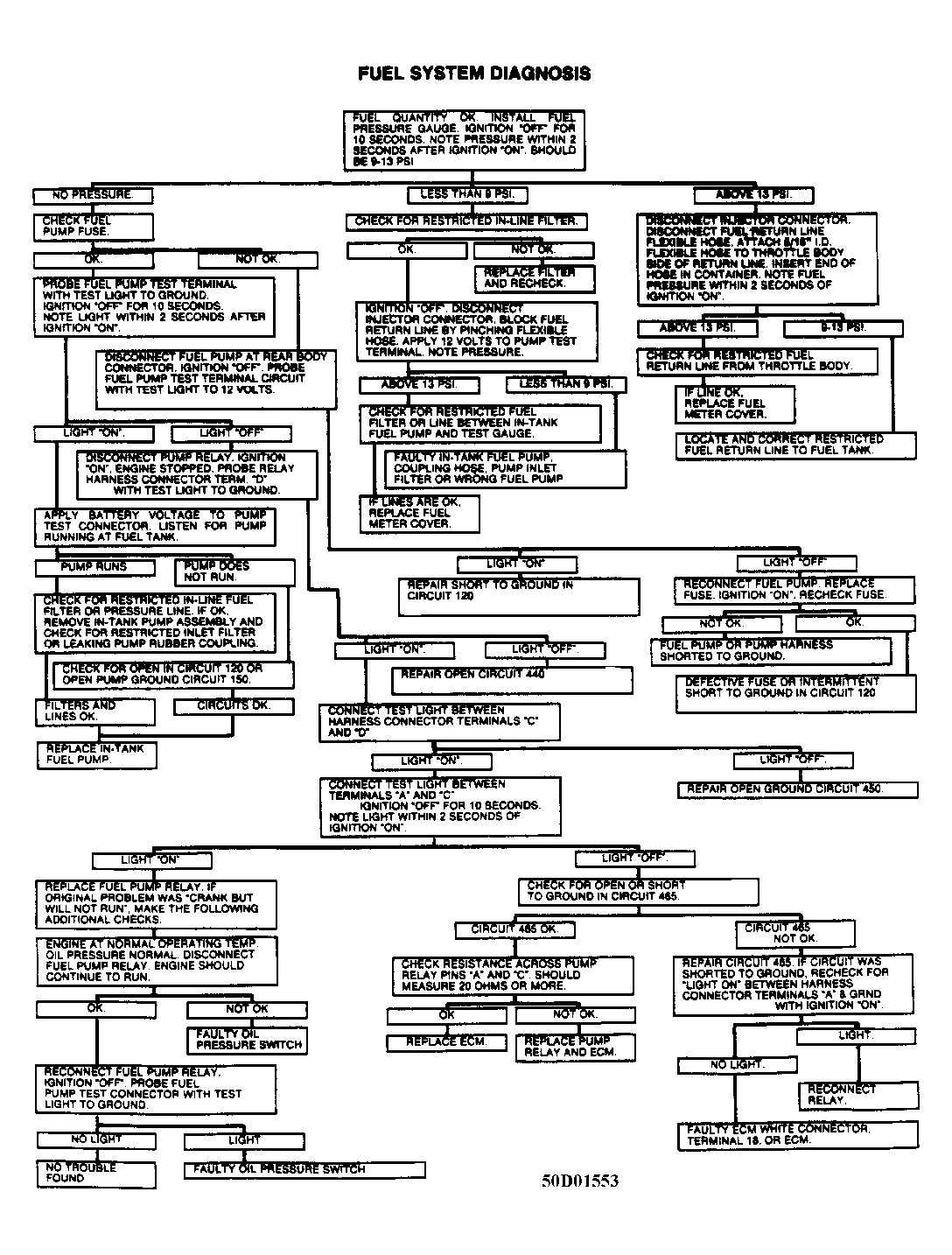

Fig 1: Fuel System Diagnosis

G50D01553

Fig 2: Injector System Diagnosis

G10513
