Powertrain Management: Locations

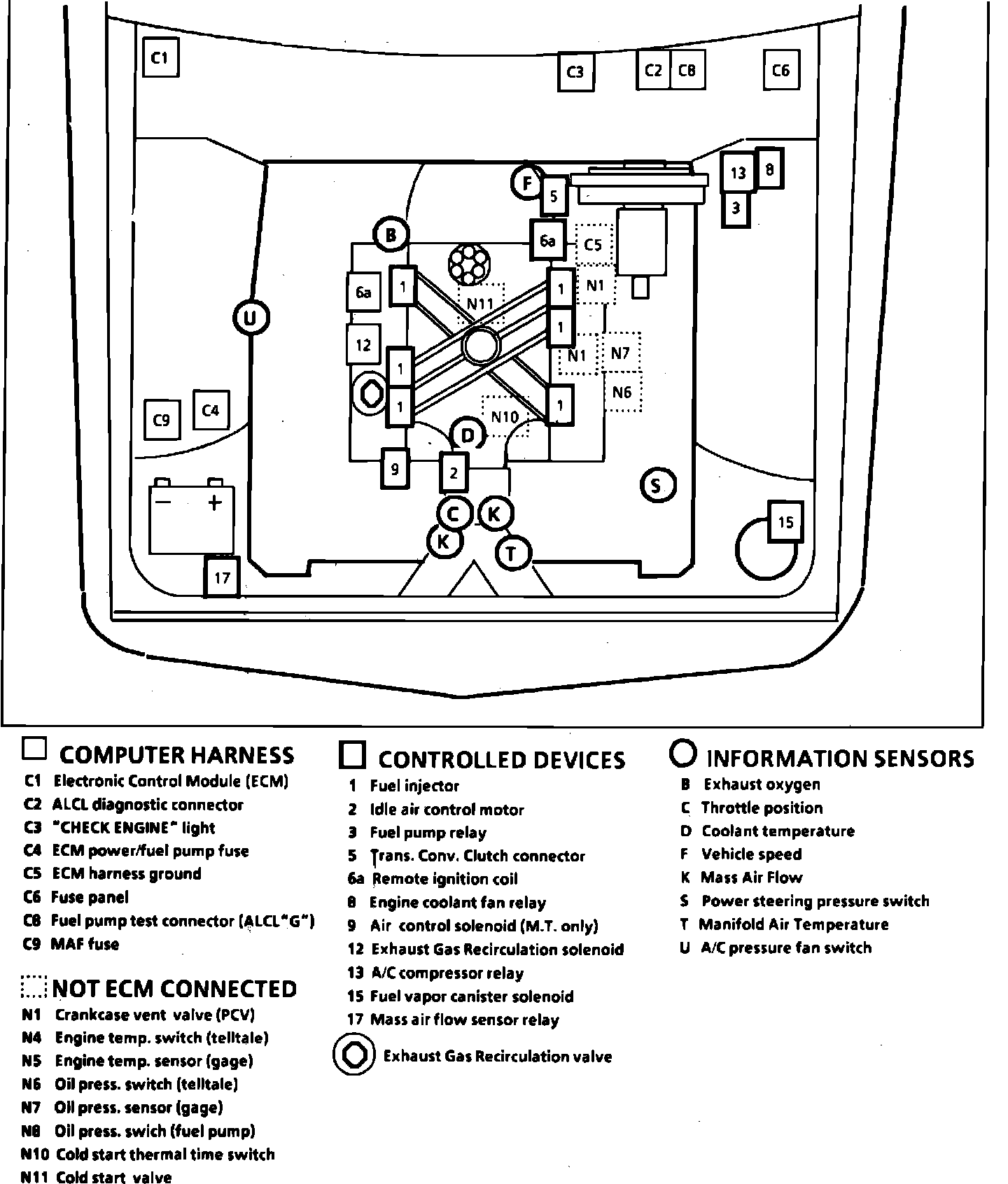

Fig. 21 Emission Component Location. 1985 Camaro W/V6-173/2.8L, PFI:
