Code 35, Idle Air Control (2.8L)

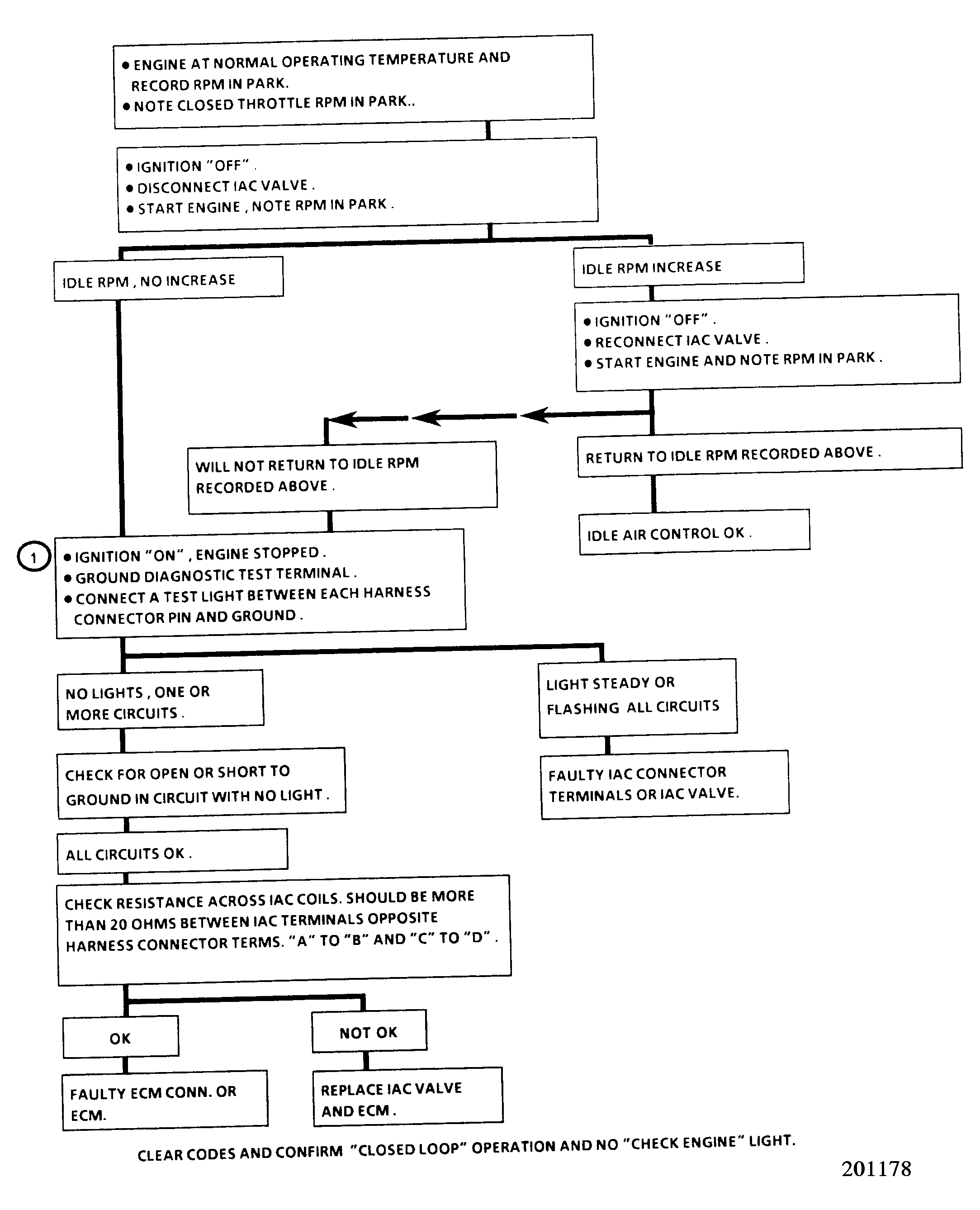

Fig 1: Code 35, Idle Air Control (2.8L)
G201178

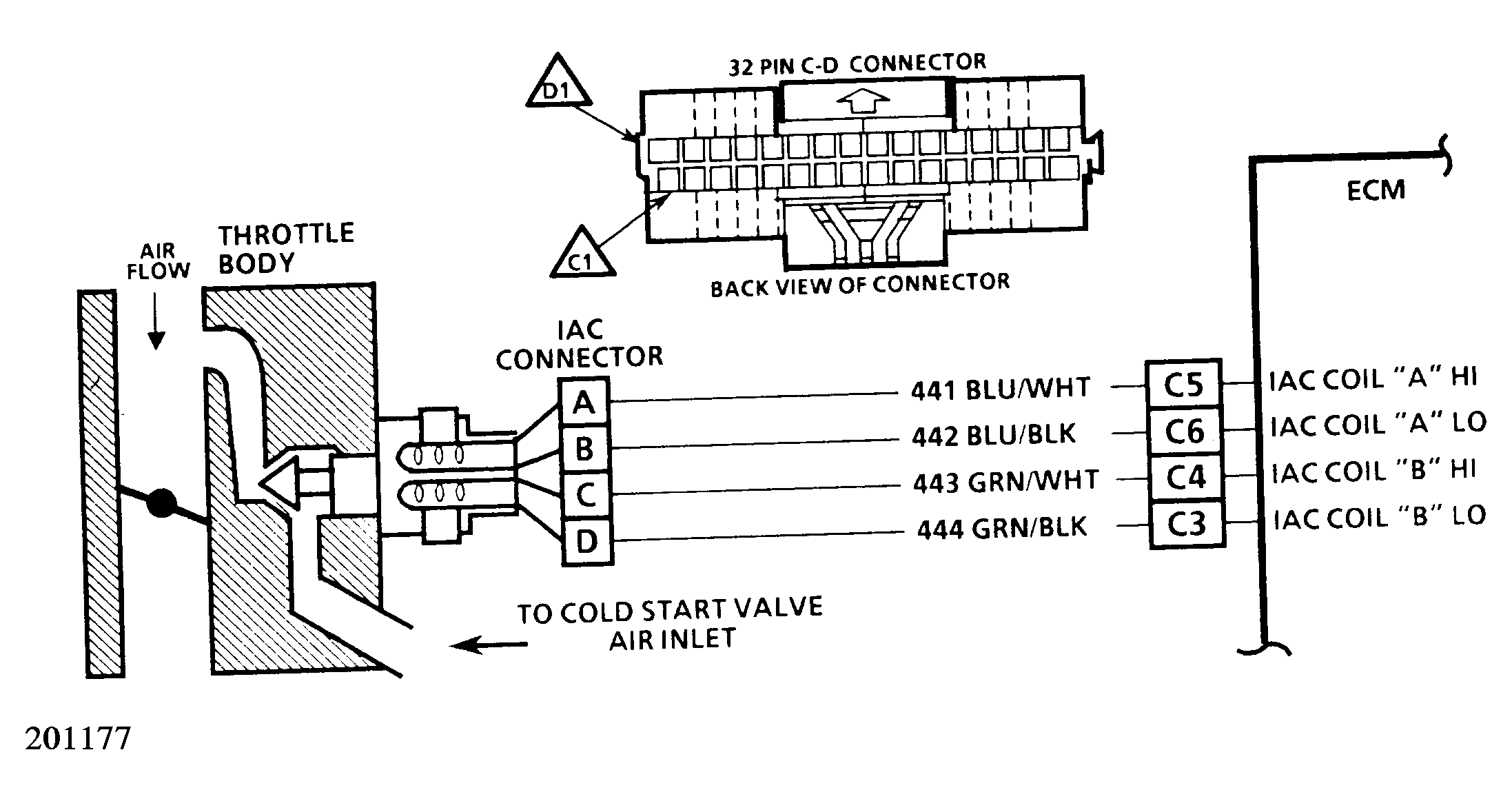

Fig 2: Code 35 Schematic, Idle Air Control (2.8L)
G201177
