Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | Taped in A/C compressor connector. |

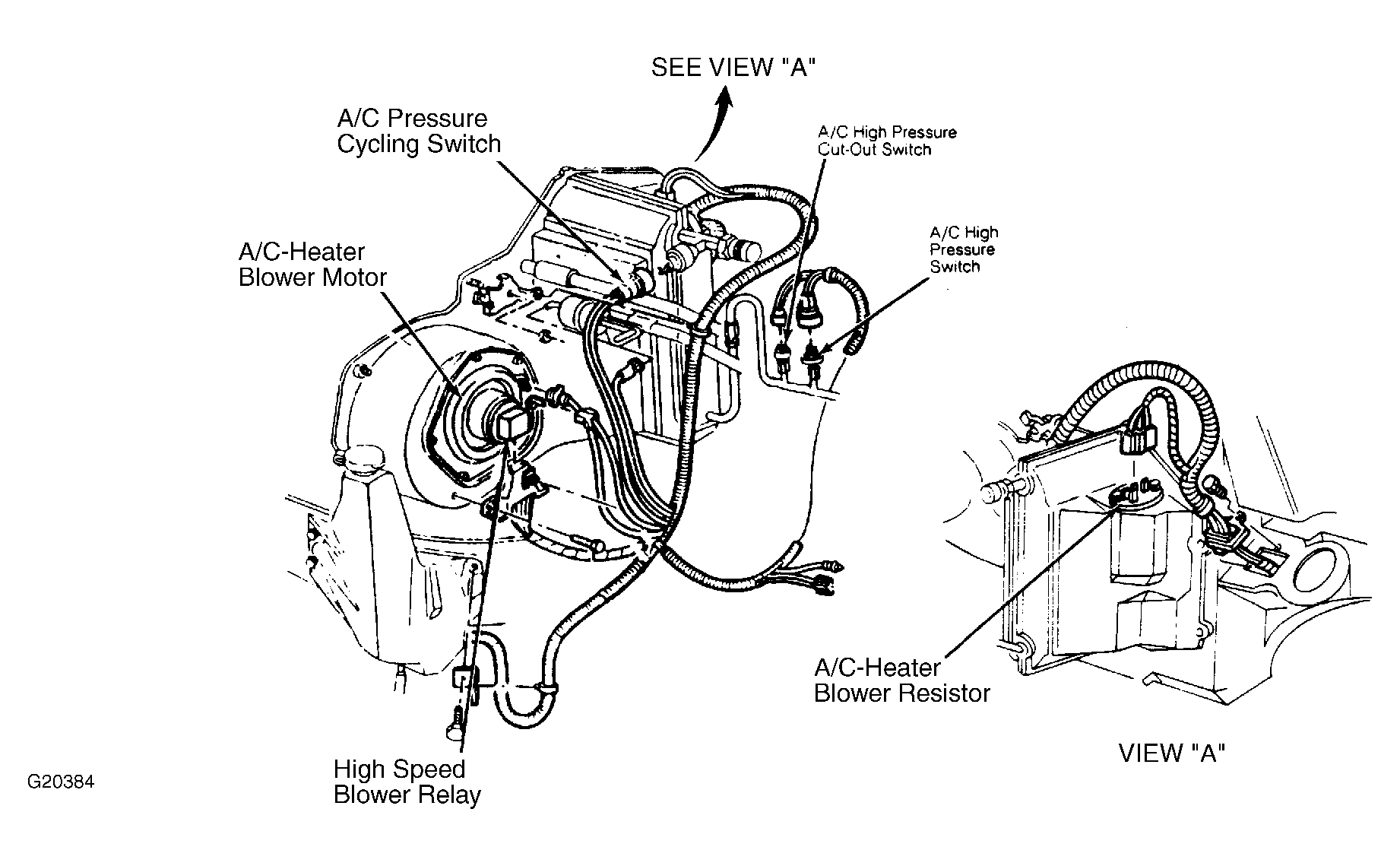

| A/C-Heater Blower Resistor | On A/C-heater plenum, in engine compartment. See Figure. |
| Assembly Line Data Link Connector | Under left side of dash. |
| Convenience Center | Behind center of instrument panel. See Figure. |

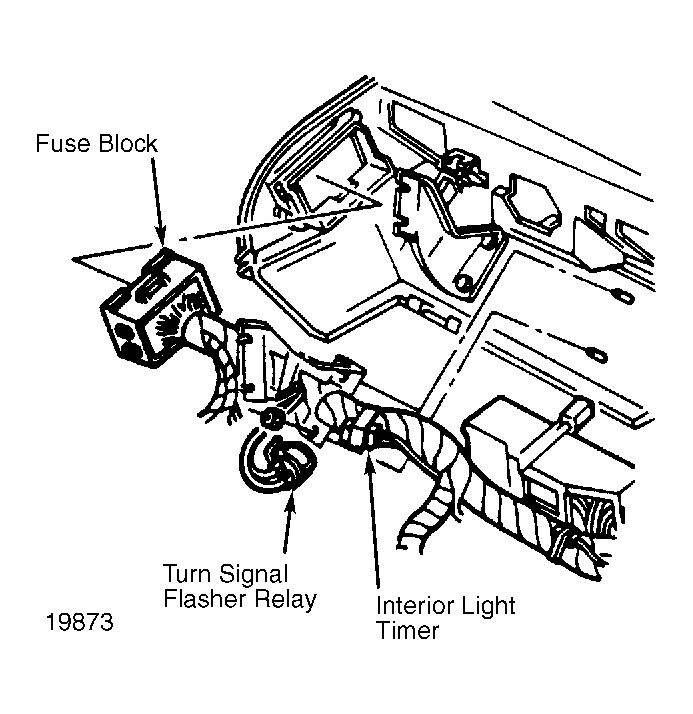

| Fuse Block | Under right side of dash. See Figure. |

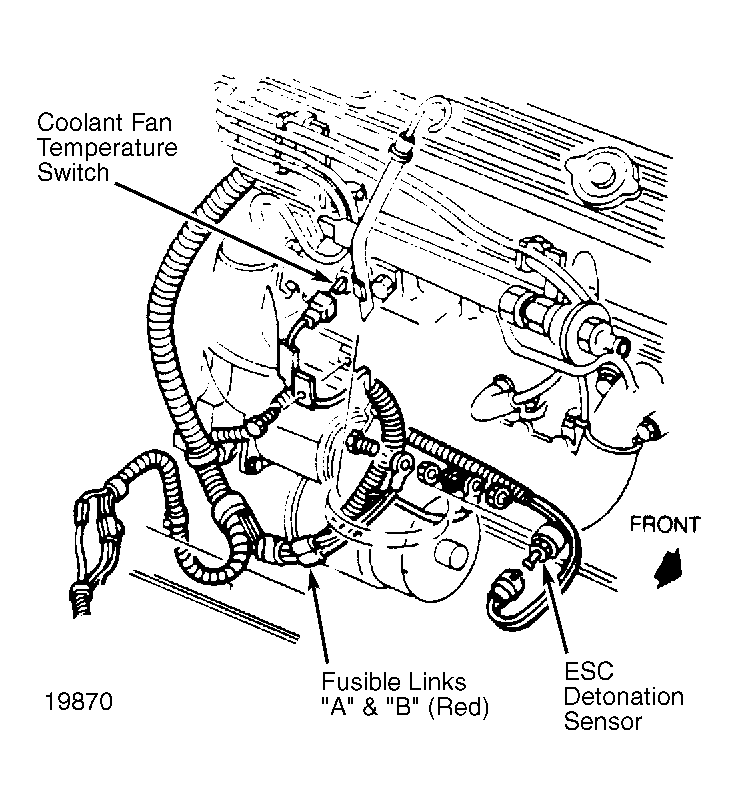

| Fusible Links "A" & "B" (Red) | At starter solenoid. See Figure. |
| Fusible Links "C" (Blue) | At starter solenoid. See Figure. |
| Fusible Links "D" & "E" (Orange) | In left rear corner of engine compartment, near battery. |

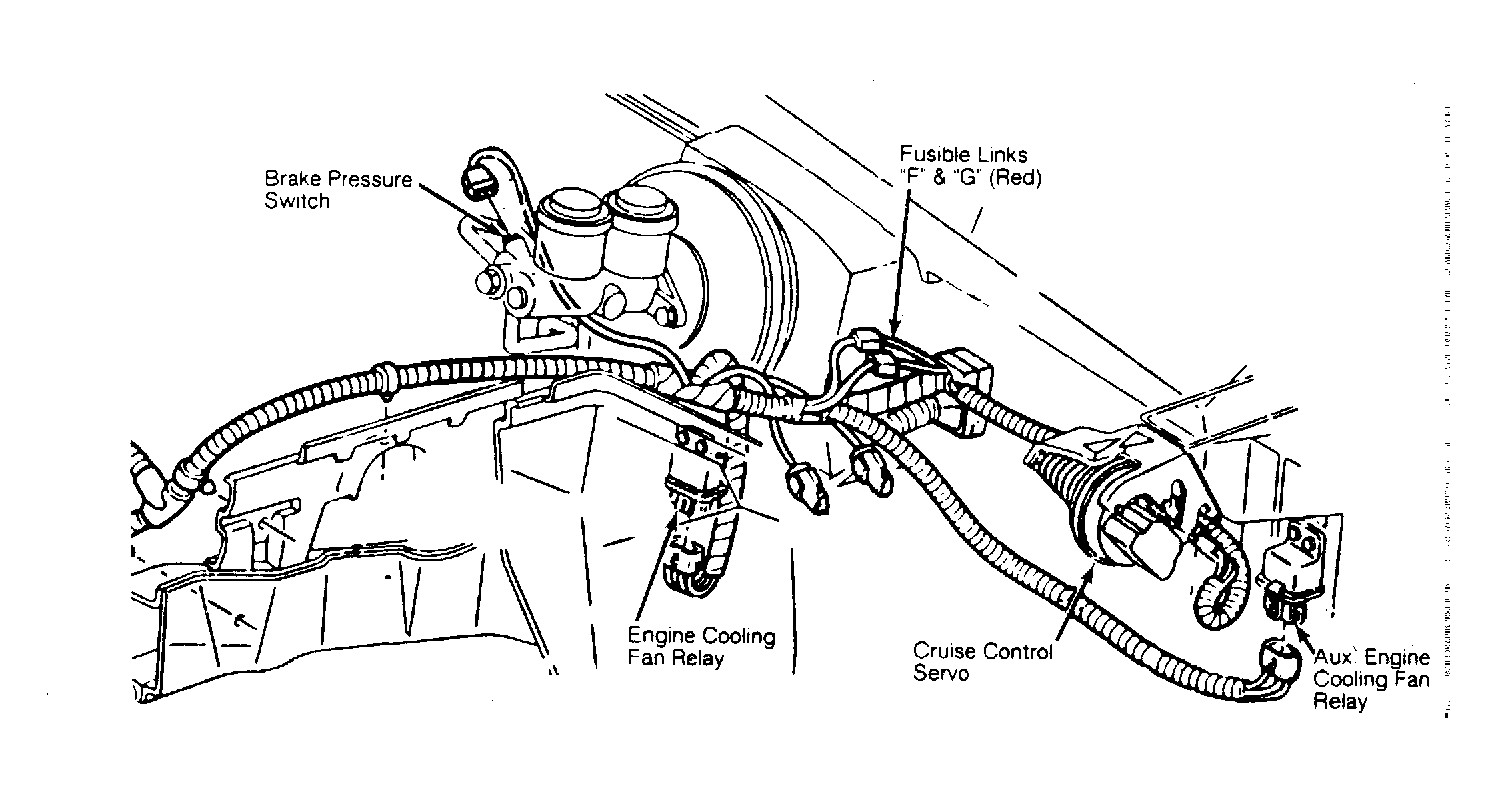

| Fusible Links "F" & "G" (Red) | At connector, in left rear corner of engine compartment. See Figure. |
| Fusible Links "H" (Orange) | In left rear corner of engine compartment, near battery. |
| Headlight Actuators | Next to each headlight assembly. |
| Horn In-Line Fuse | Behind center of instrument panel. See Figure. |
| Power Acc. Circuit Breaker | In fuse block. |
| Power Window Circuit Breaker | In fuse block. |
