4L60 (700-R4) Automatic Transmission

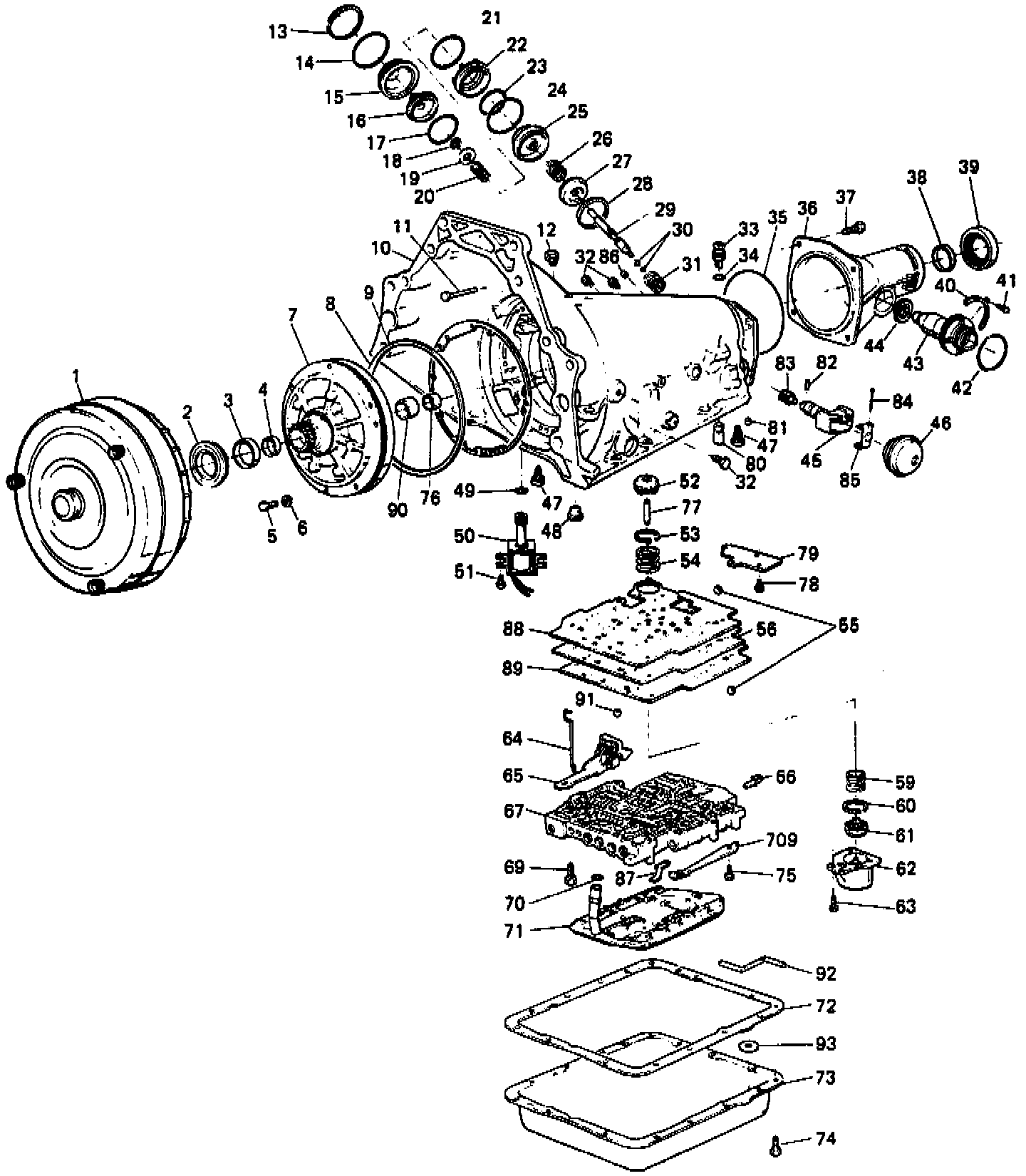

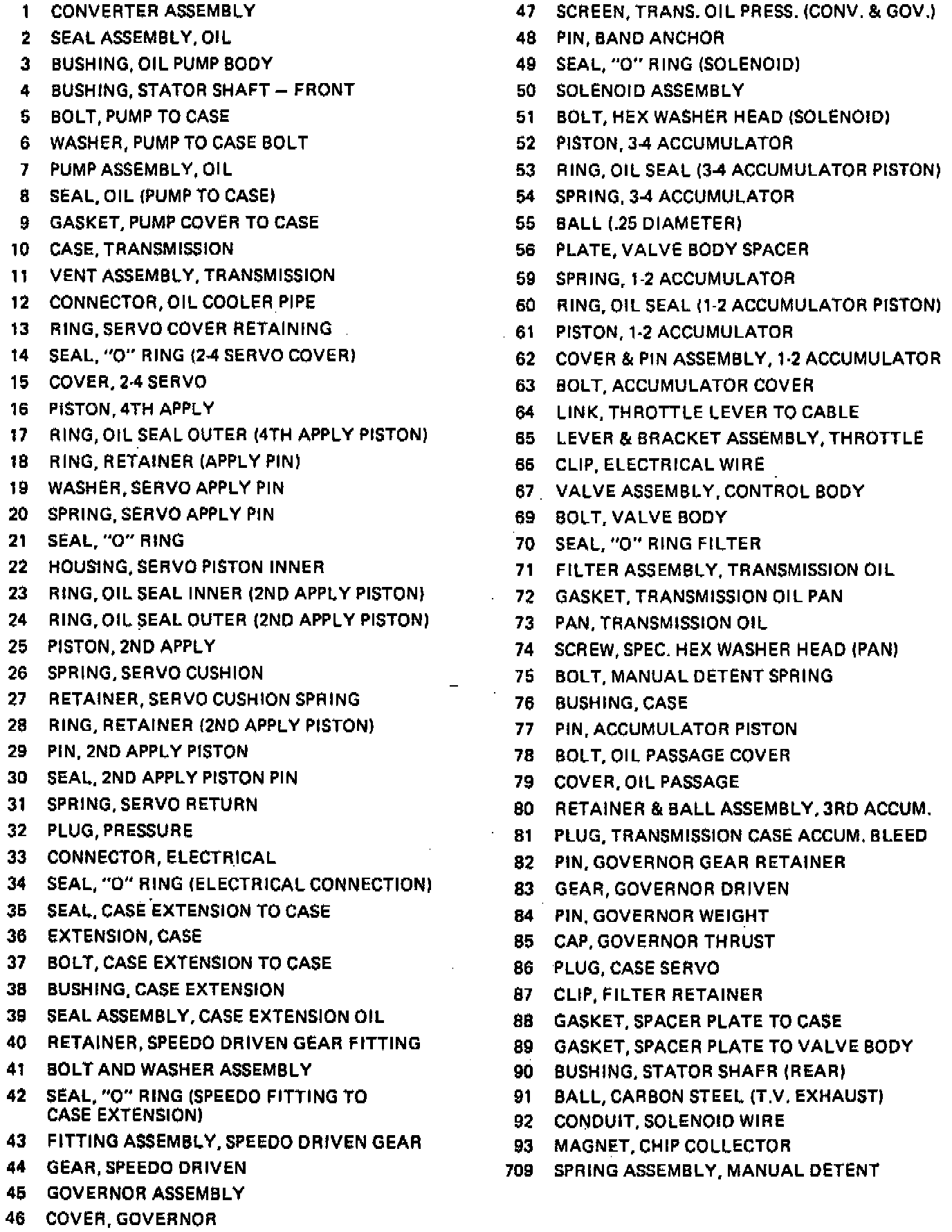

Refer to the "Service Bulletins" section prior to performing the following procedures.Fig. 1, Transmission case & external parts exploded view (Part 1 of 2). 1986 Models:
Fig. 1, Transmission case & external parts exploded view (Part 2 of 2). 1986 Models:

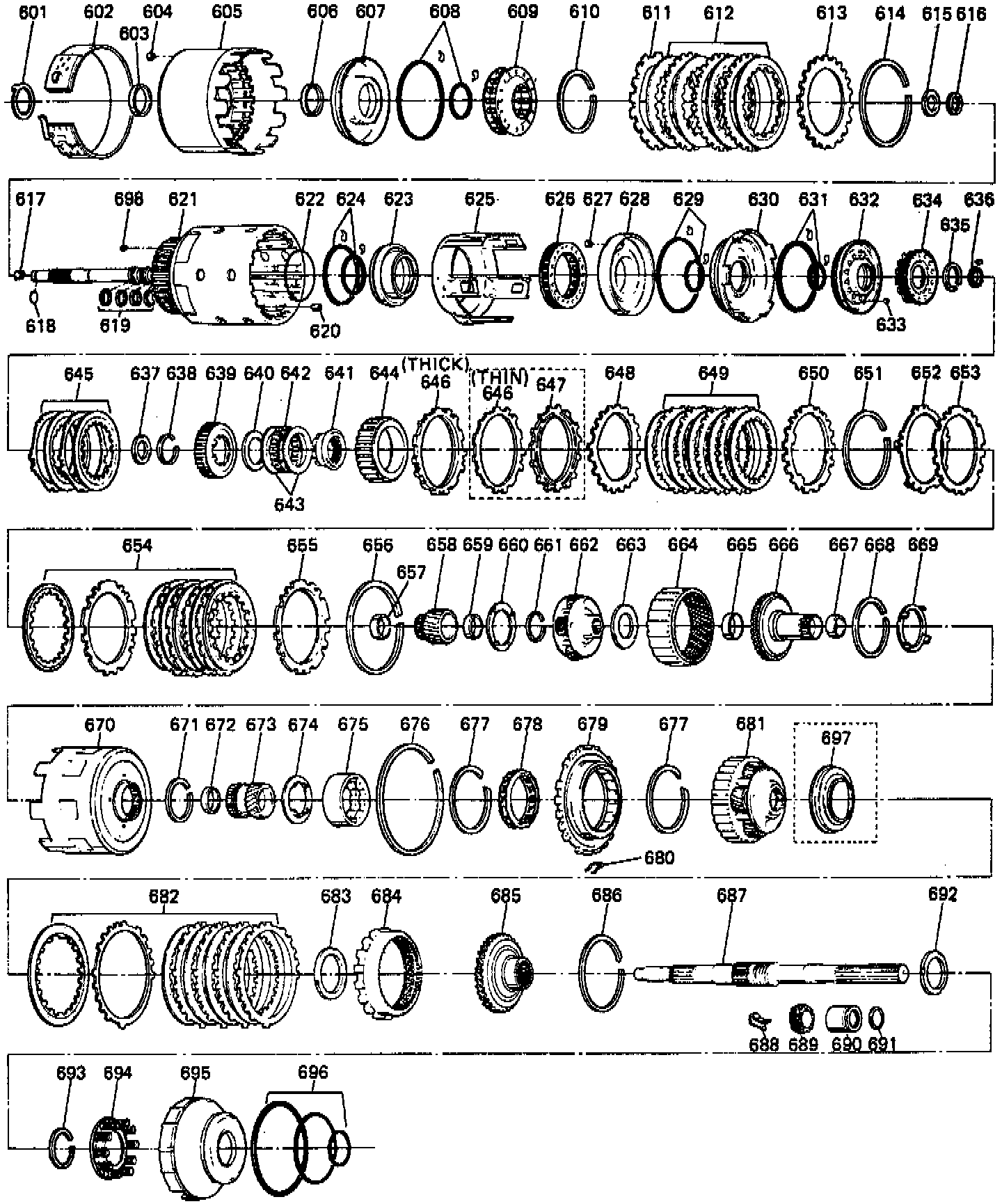

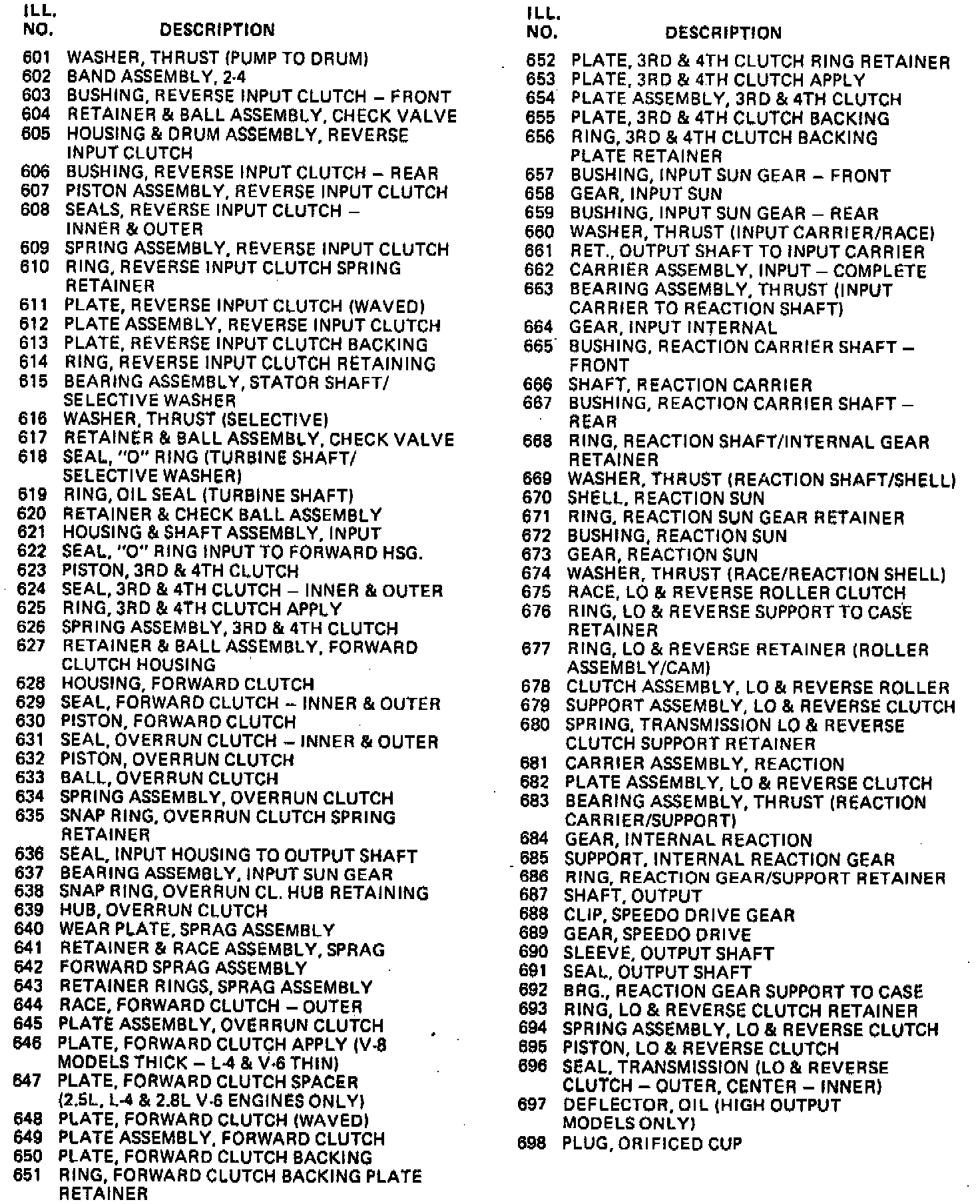

Fig. 4, Transmission internal parts exploded view (Part 1 of 2):
Fig. 4, Transmission internal parts exploded view (Part 2 of 2):
Refer to Figs. 1 and 4 during subassembly service and transmission assembly procedures.
