Charging Relay

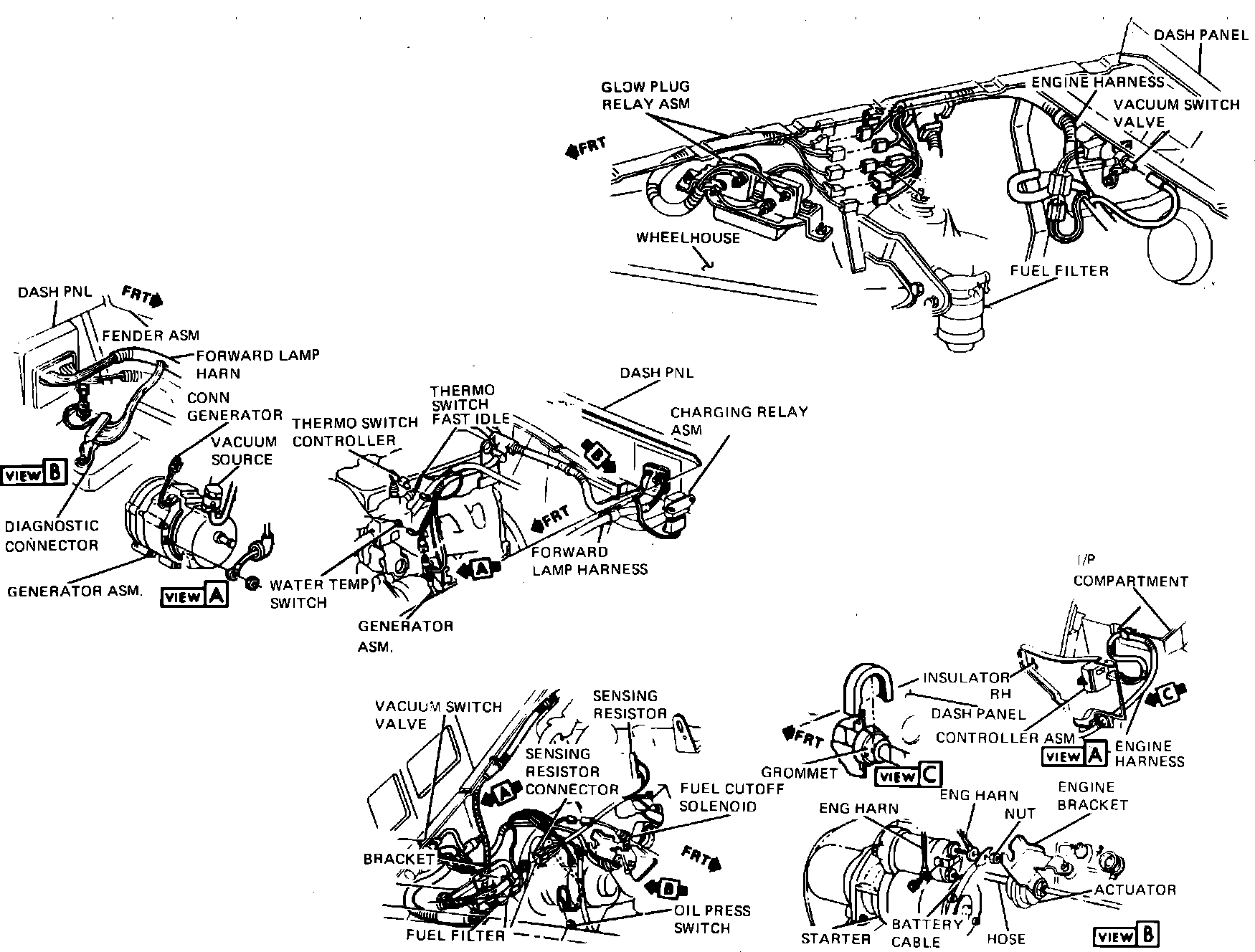

Diesel Engine Wiring Harness & Related Components.:




Near Engine Wire Harness

Applicable to: 1986 Chevette & 1000
