Torque Specifications

MX-1 TRANSMISSION SPECIFICATIONS
TORQUE SPECIFICATIONS



^ Drive Plate Bolts - 19 N.m (14 lb ft)

^ Mounting Member Bolts - 55 N.m (40 if. lbs.)

^ Transaxle Mounting Nuts - 45 N.m (33 lb ft)

^ Transaxle Mounting Bolts (8mm) - 55 N.m (40 lb ft)

^ Transaxle Mounting Nuts - 55 N.m (40 if. lbs.)

^ Stabilizer Shaft Mount Bolts - 42 N.m (31 lb ft)

^ Ball Stud Bolt - 60 N.m (44 lb ft)

^ Wheel Nuts - 55 N.m (40 lb ft)

Oil Pan Bolt Torque:

Filter Bolt Torque:

Pump Cover Bolt Torque:

Valve Body Bolt Torque:

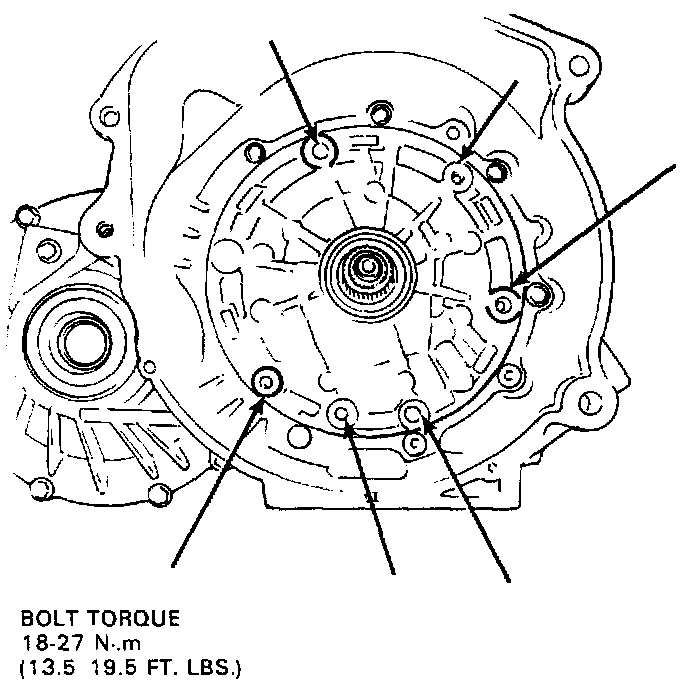

Pump Bolt Torque:
