Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Module Under dashboard on bracket at right of steering column.

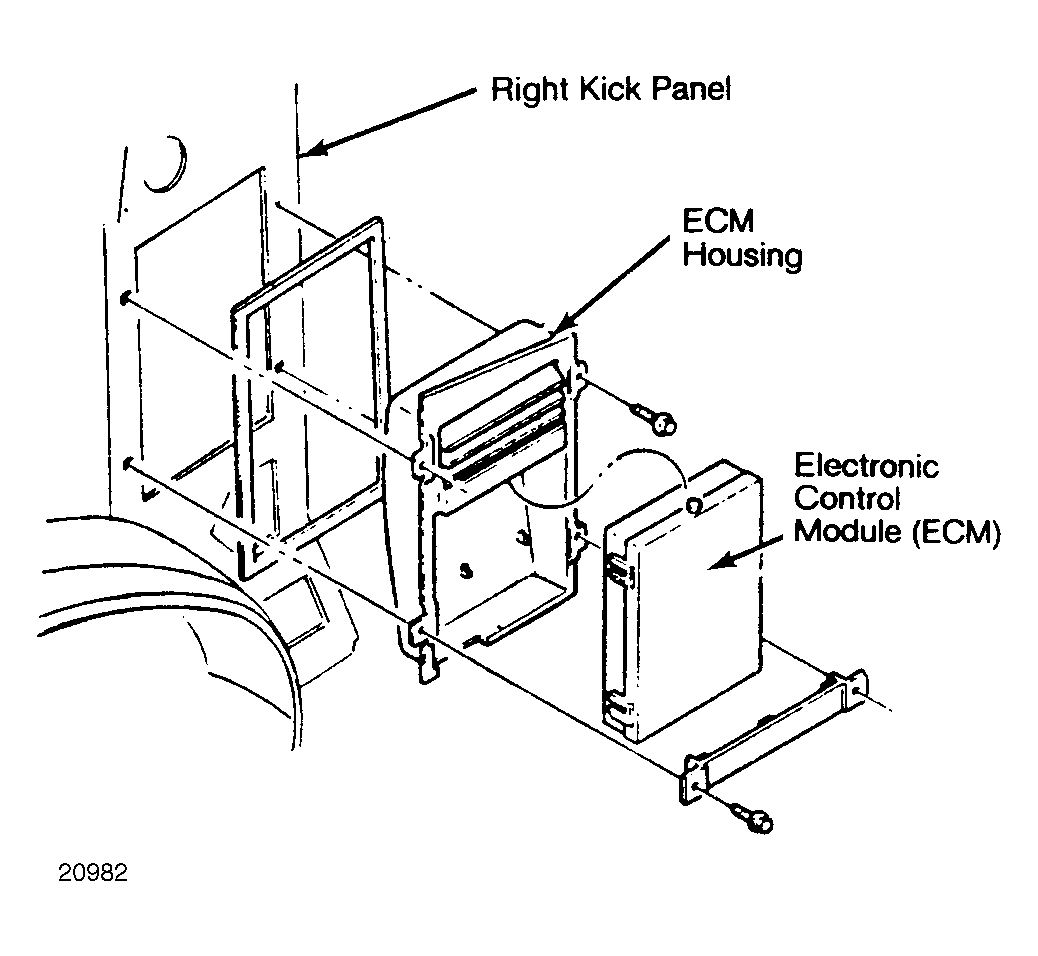

Electronic Control Module (ECM) Behind right kick panel. See Figure.

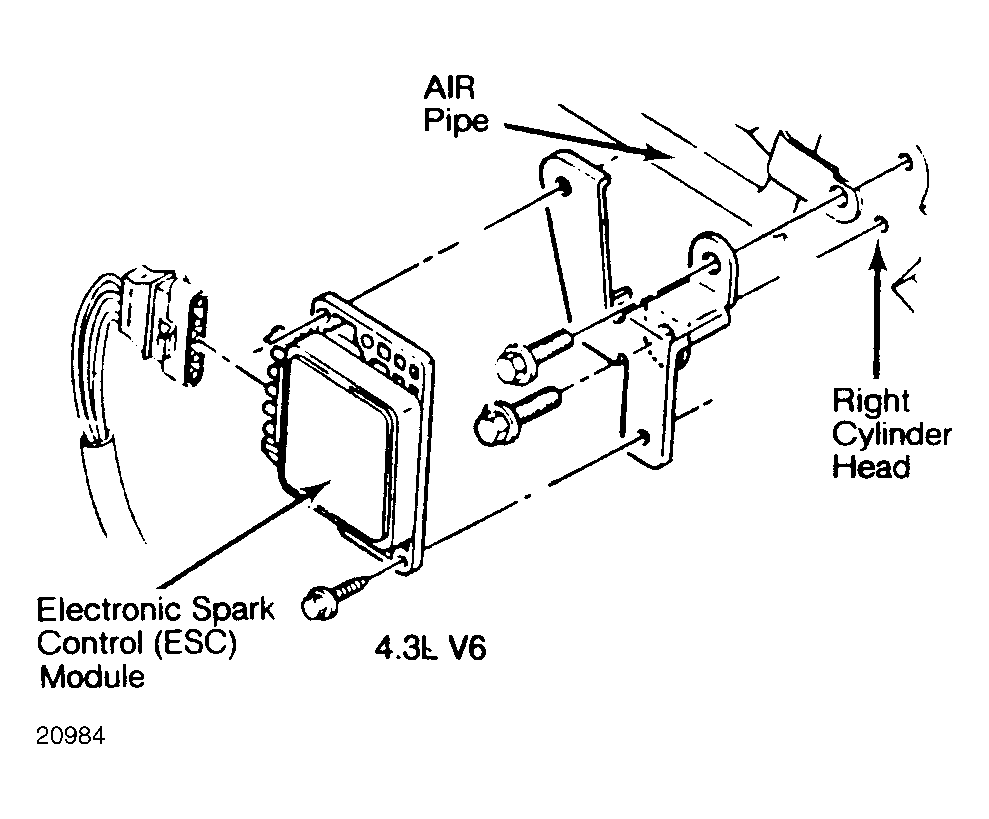

Elect. Spark Cntrl. (ESC) Module (4.3L) On bracket at rear of right cylinder head. See Figure.
Power Door Lock/Mirror Module Under left side of dashboard.
