Engine Control Module

VINs 499,999 and under

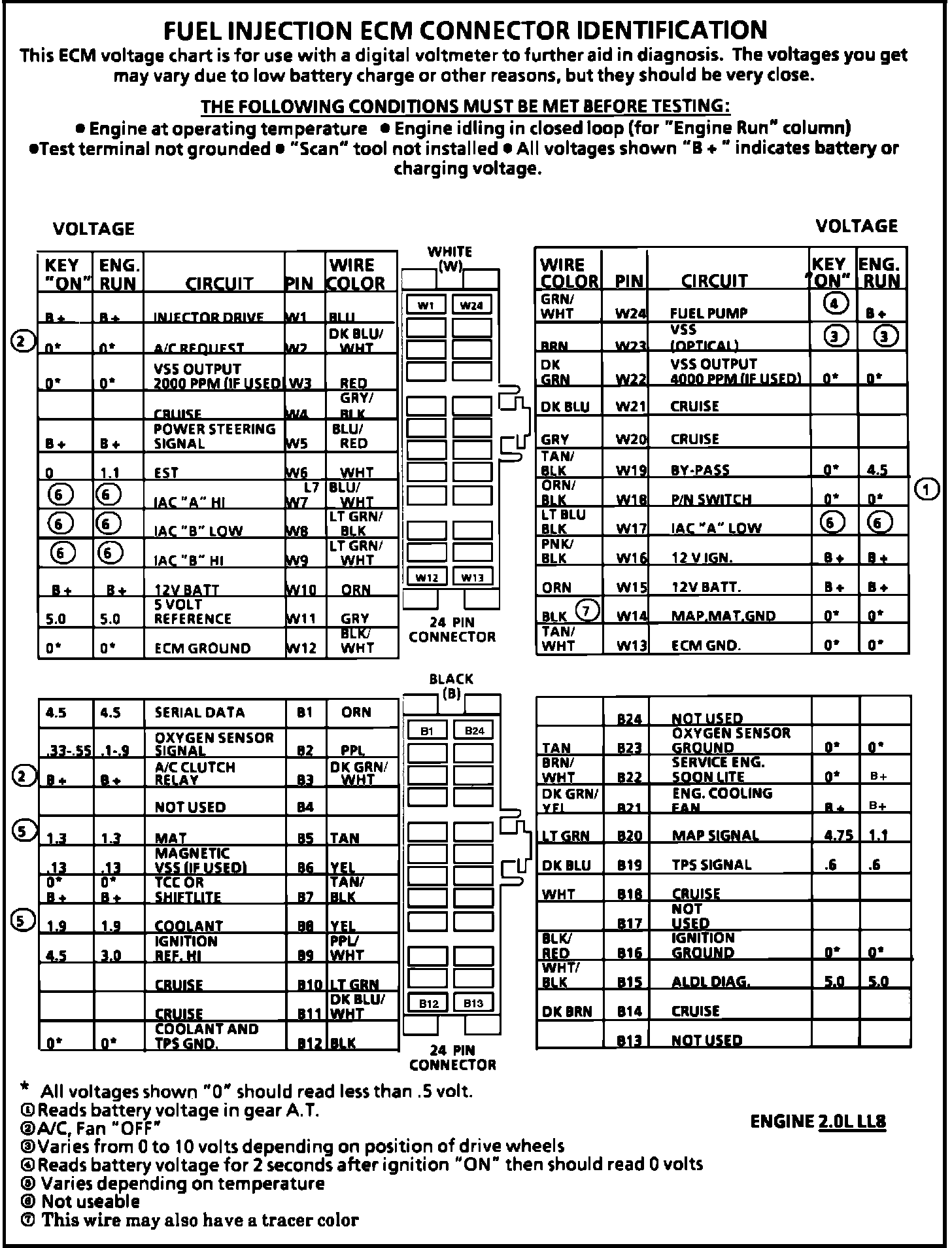

Fig. 010 ECM Connector Terminal I.D. & Volt. Specifications (1 of 2):





Fig. 011 ECM Connector Terminal I.D. & Volt. Specifications (2 of 2):






VINs 500,000 and over

Fig. 015 ECM Connector Terminal I.D. & Volt. Specifications:
