Air Flow Meter/Sensor Relay: Locations

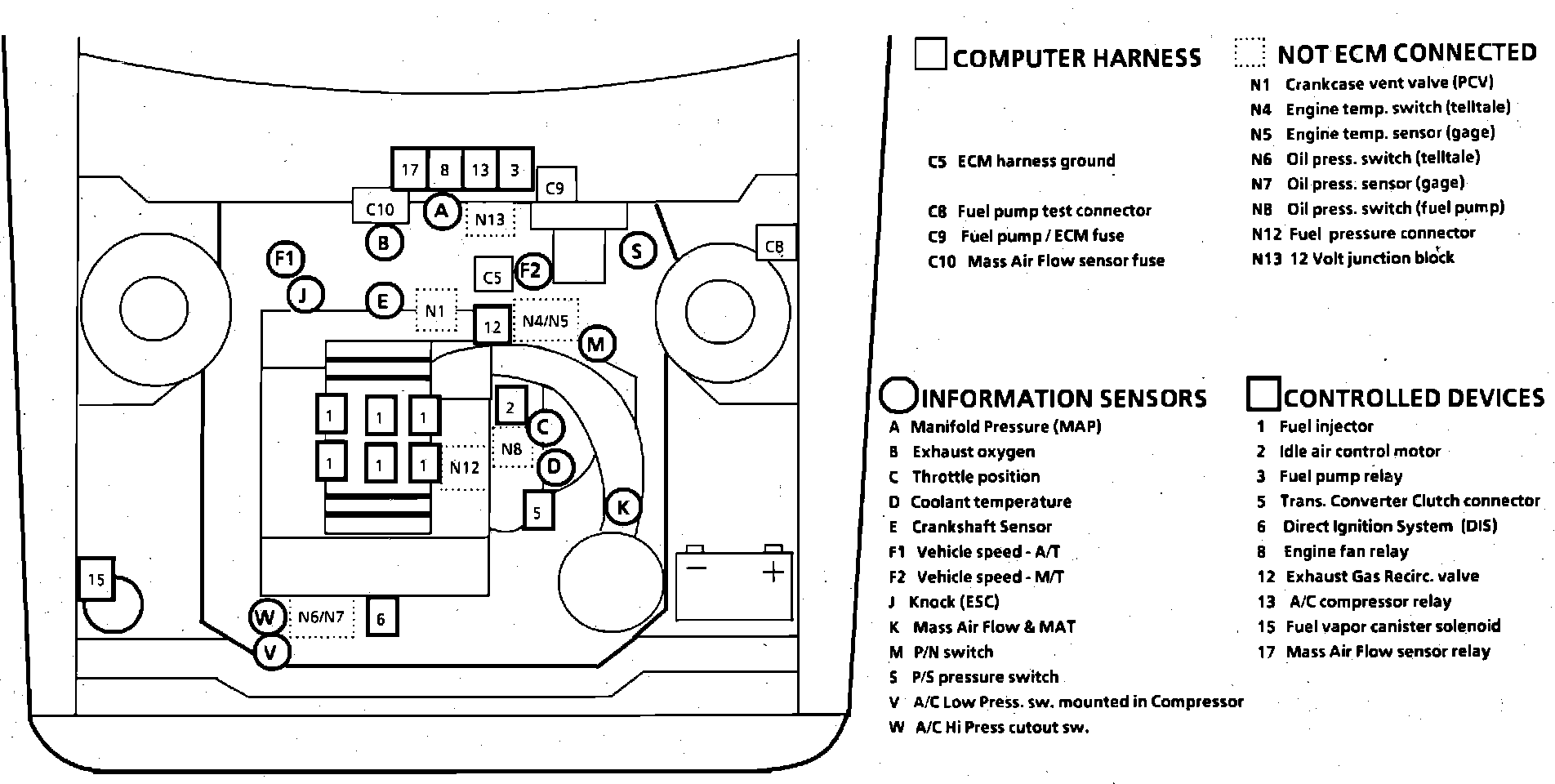

Engine & Underdash Components.:
On Firewall, Above Heater Module
Applicable to: V6-173/2.8L
