Engine Control Module

Speed/Density System

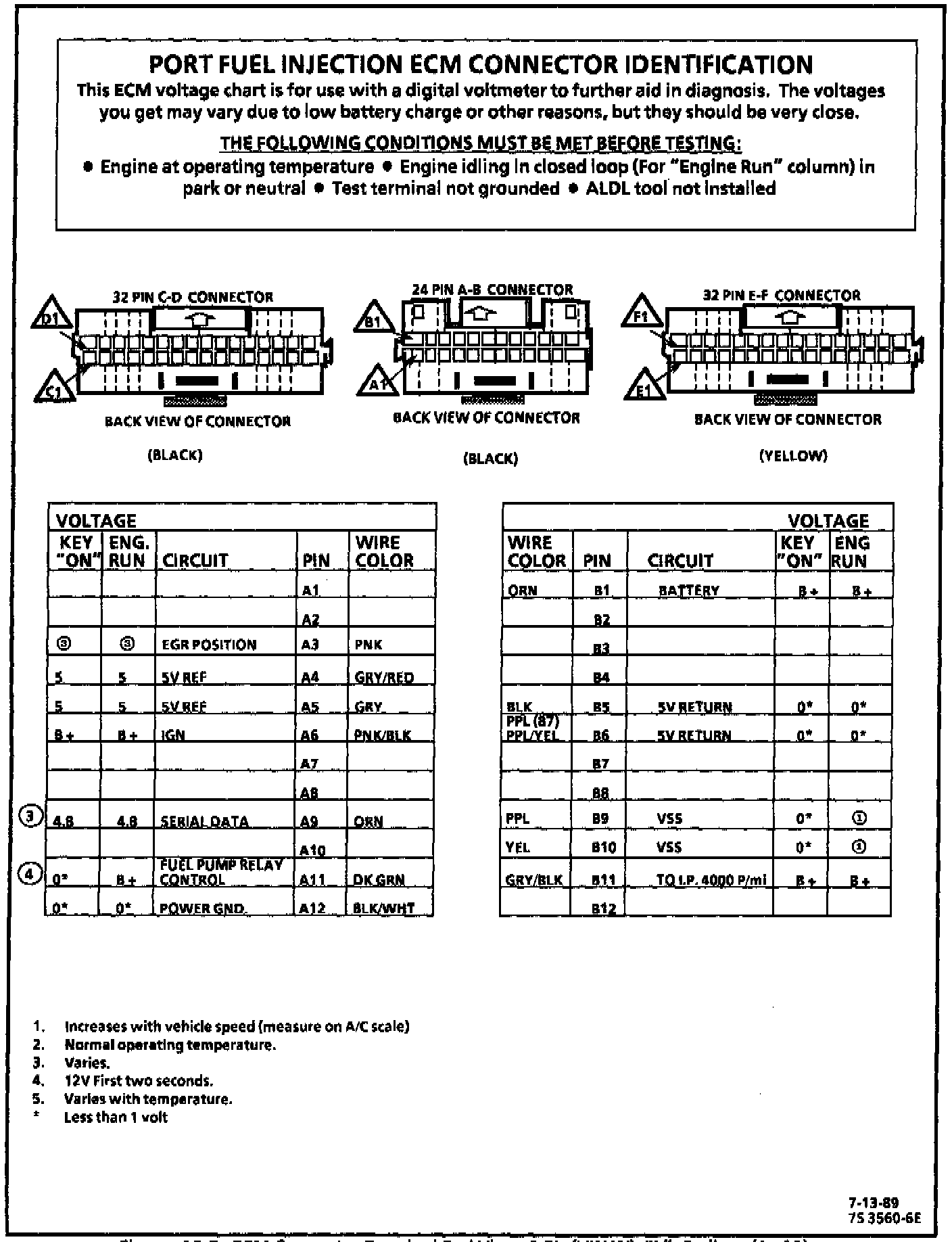

ECM Connector Identification:

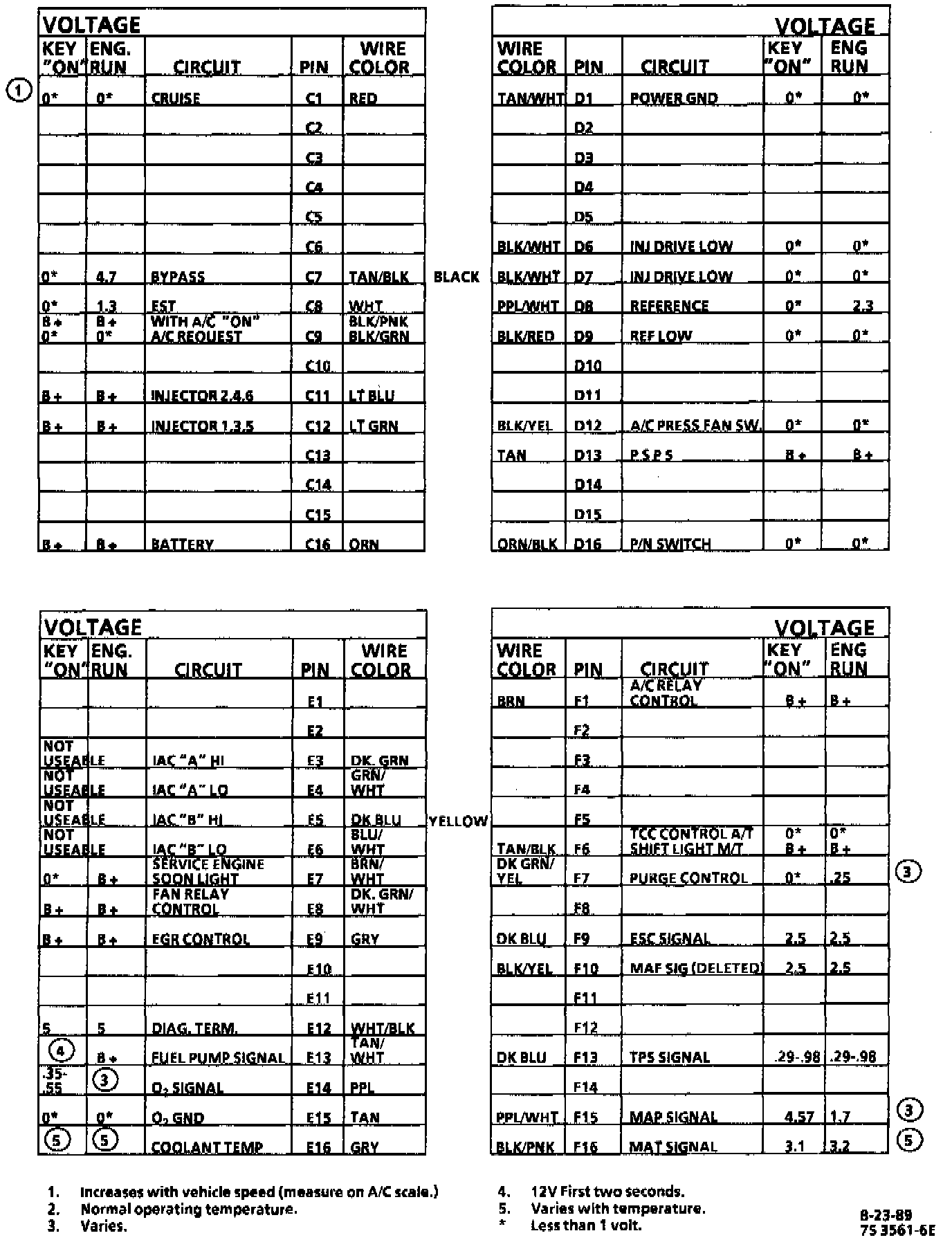

ECM Connector Terminal End View:






Mass Airflow System

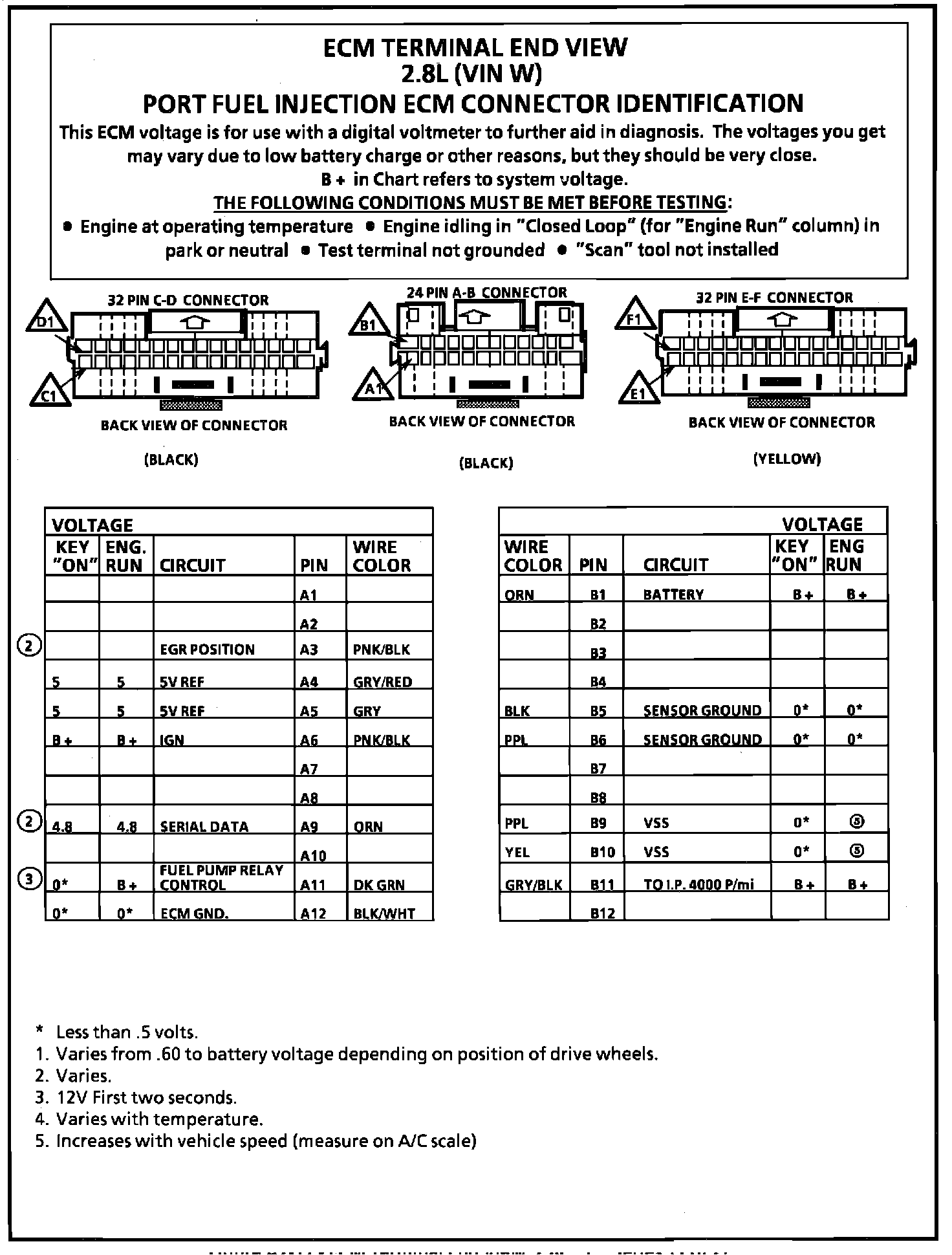

ECM Terminal ID and Voltage Specifications (Part 1 of 2):





ECM Terminal ID and Voltage Specifications (Part 2 of 2):
