System Specifications

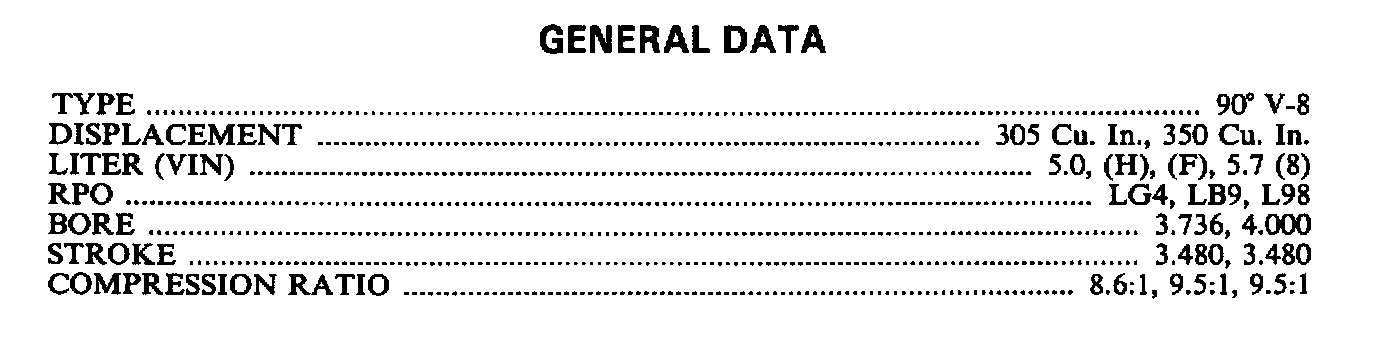

Engine Specifications:

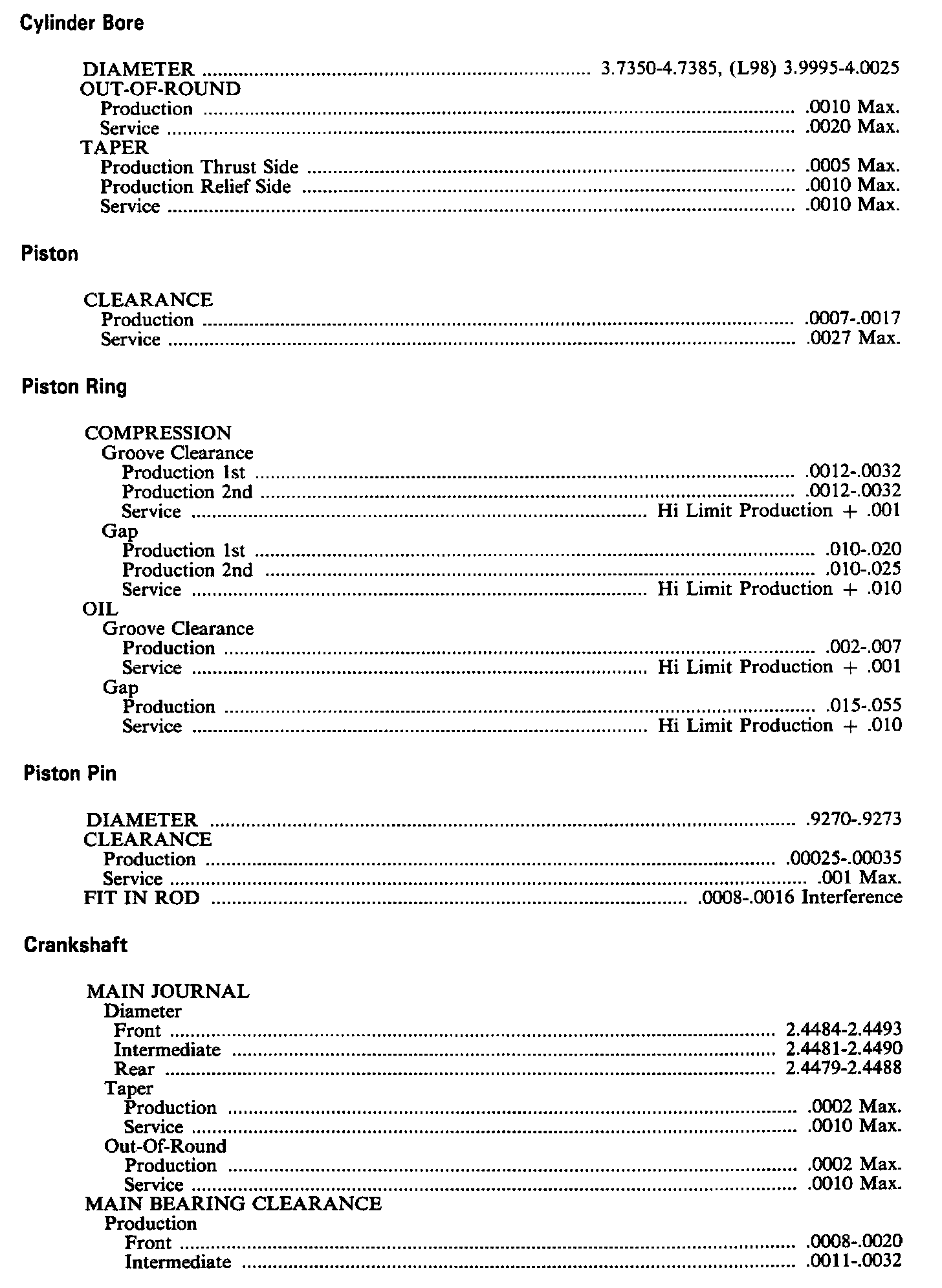

Continued Engine Specifications:

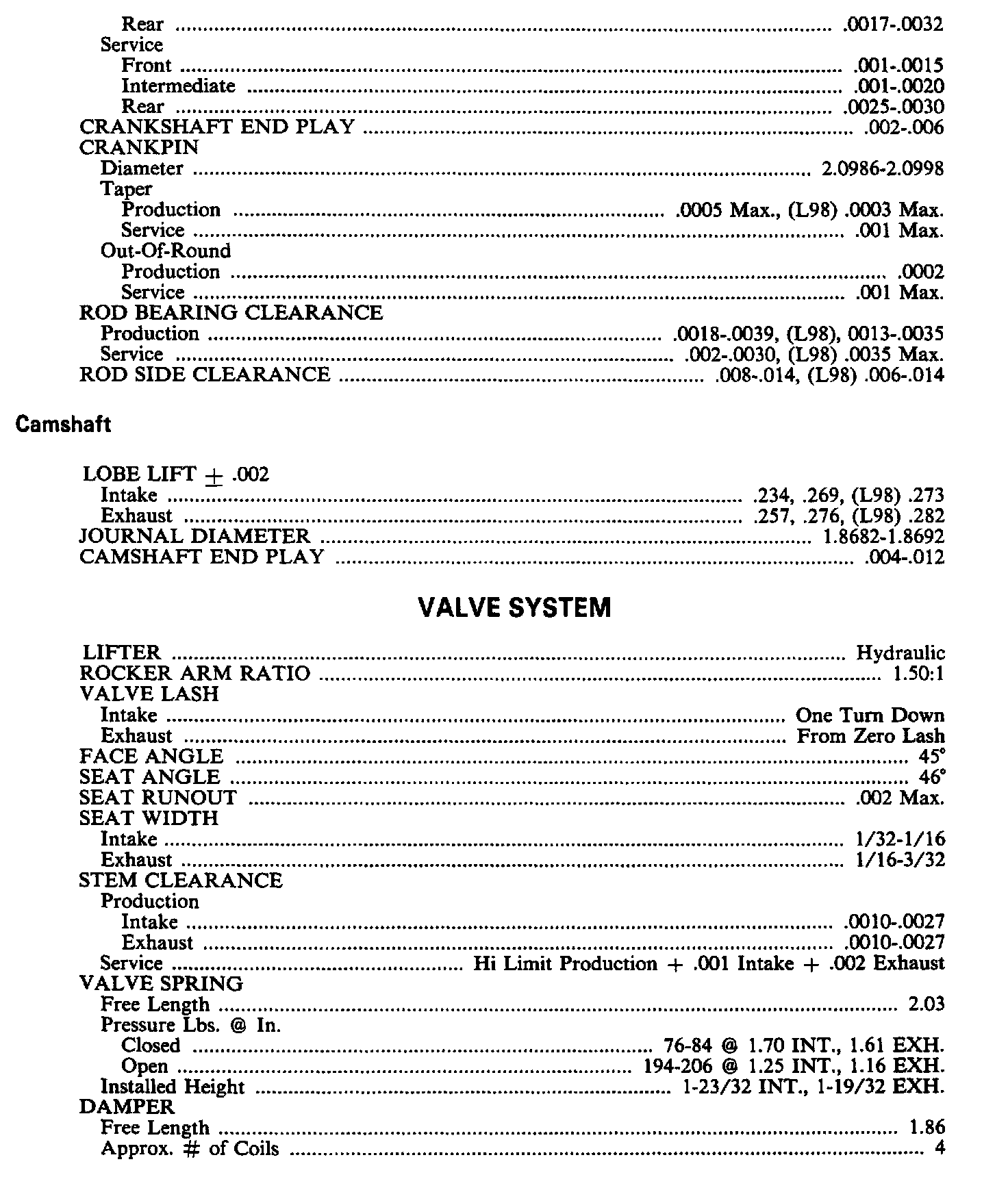

Continued Engine Specifications:

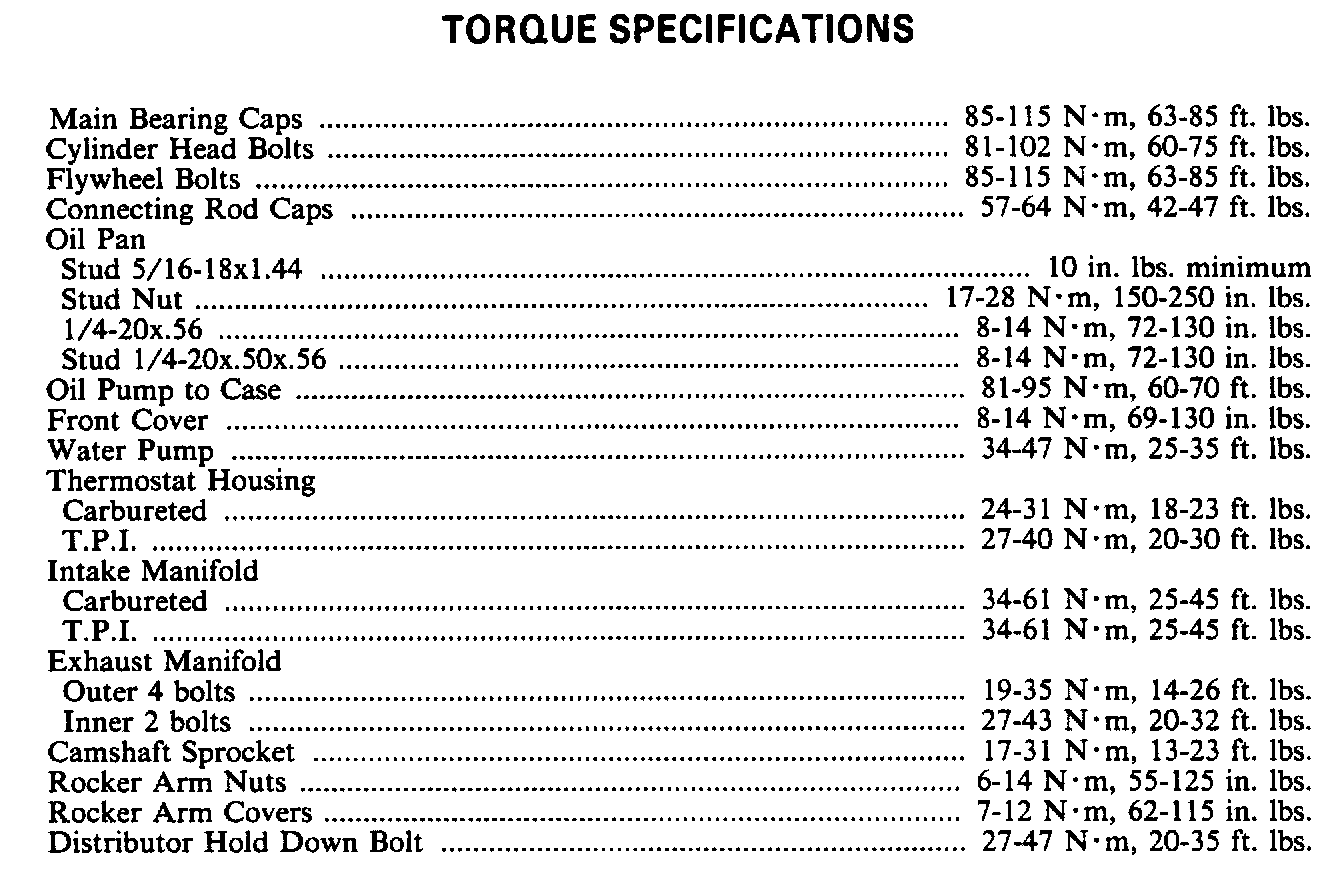

Torque Specifications:

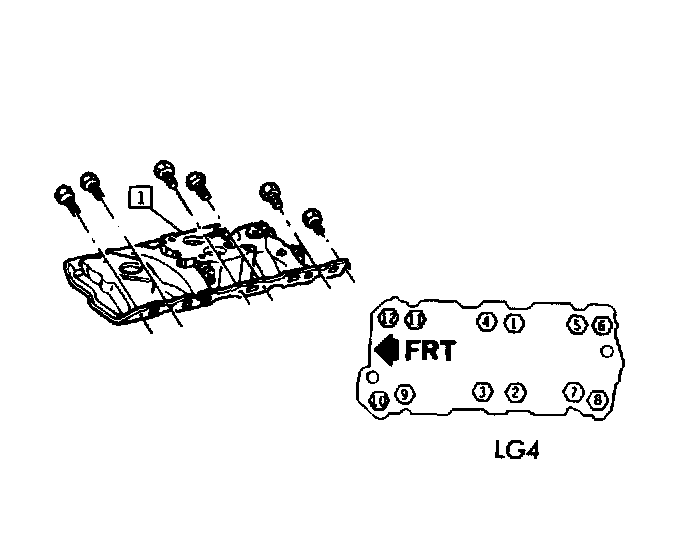

Intake Manifold Sequence (Carbureted):

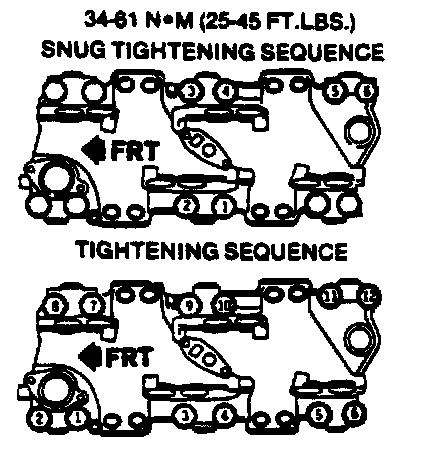

Intake Manifold Sequence (PFI):

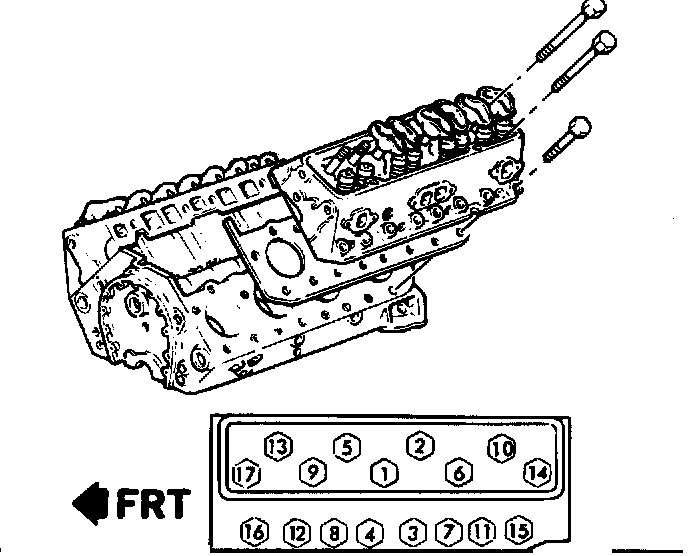

Cylinder Head Sequence:
