Electronic Spark Control (ESC) Module

Rear RH Of Engine.:





On Top Of RH Wheelhouse

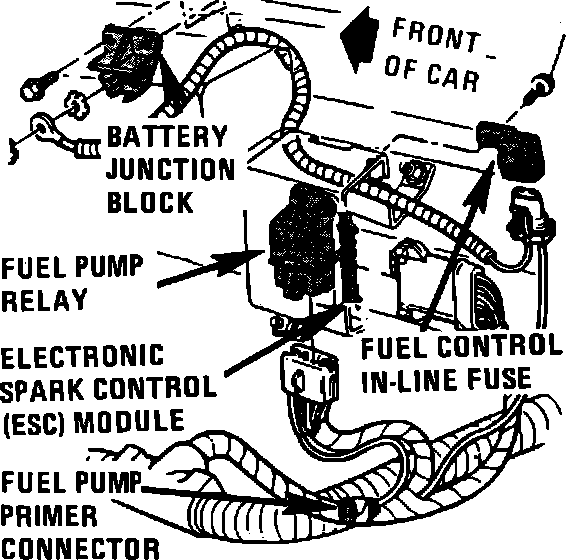

RH Inner Fender Panel.:





Engine Compartment, On RH Wheelwell

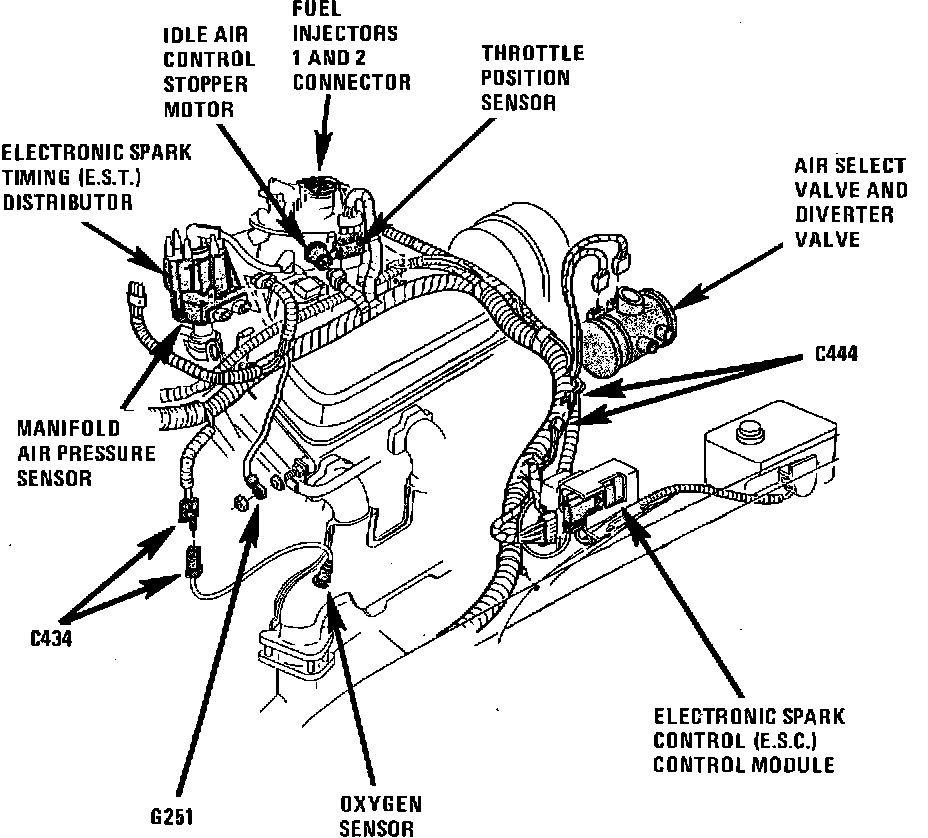

Engine & Underhood Components.:





On Top Of RH Wheelhouse

Applicable to: 1986 Parisienne & 1986-87 Caprice With V6-262/4.3L
