Chart C4D - Ignition System Check

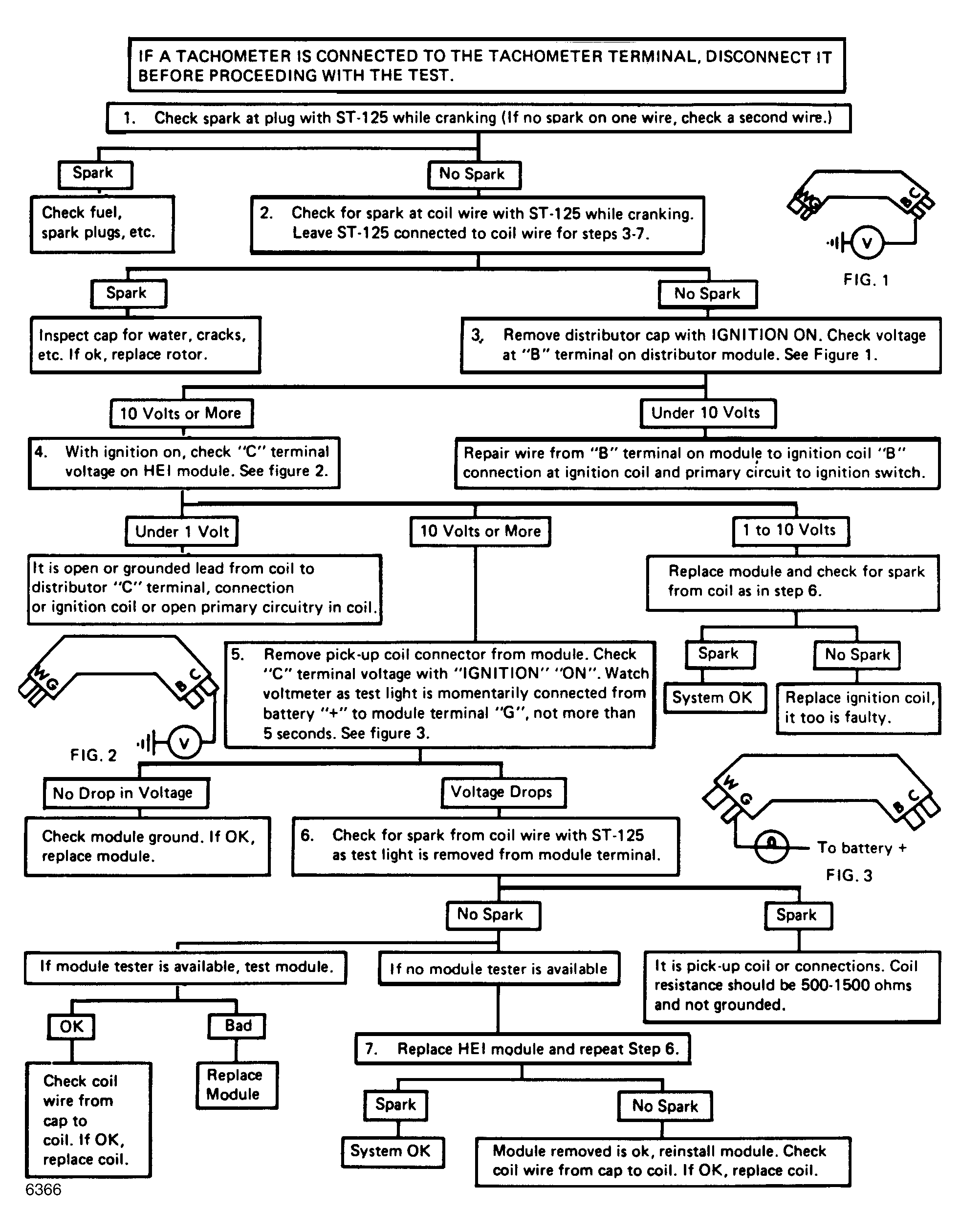

Fig 1: Flow Chart C4D, Ignition System Check
Fig 2: Flow Chart C4D, Ignition System Check (1 Of 2)

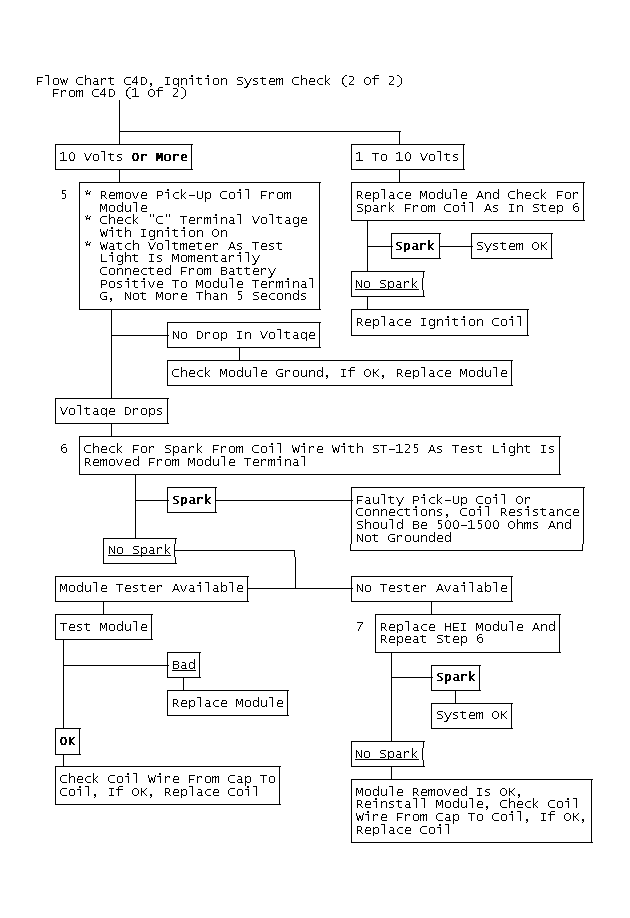

Fig 3: Flow Chart C4D, Ignition System Check (2 Of 2)
