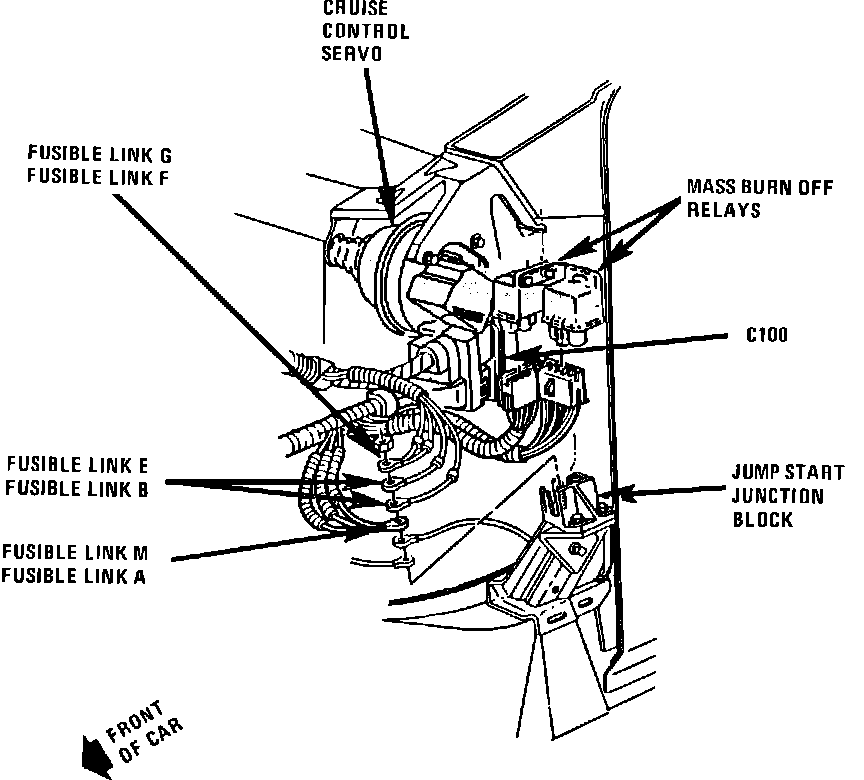

Air Flow Meter/Sensor Relay: Locations
LH Rear Of Engine Compartment:
LH Rear Of Engine Compartment, Above Jump Start Junction Block
