Glow Plug Controller

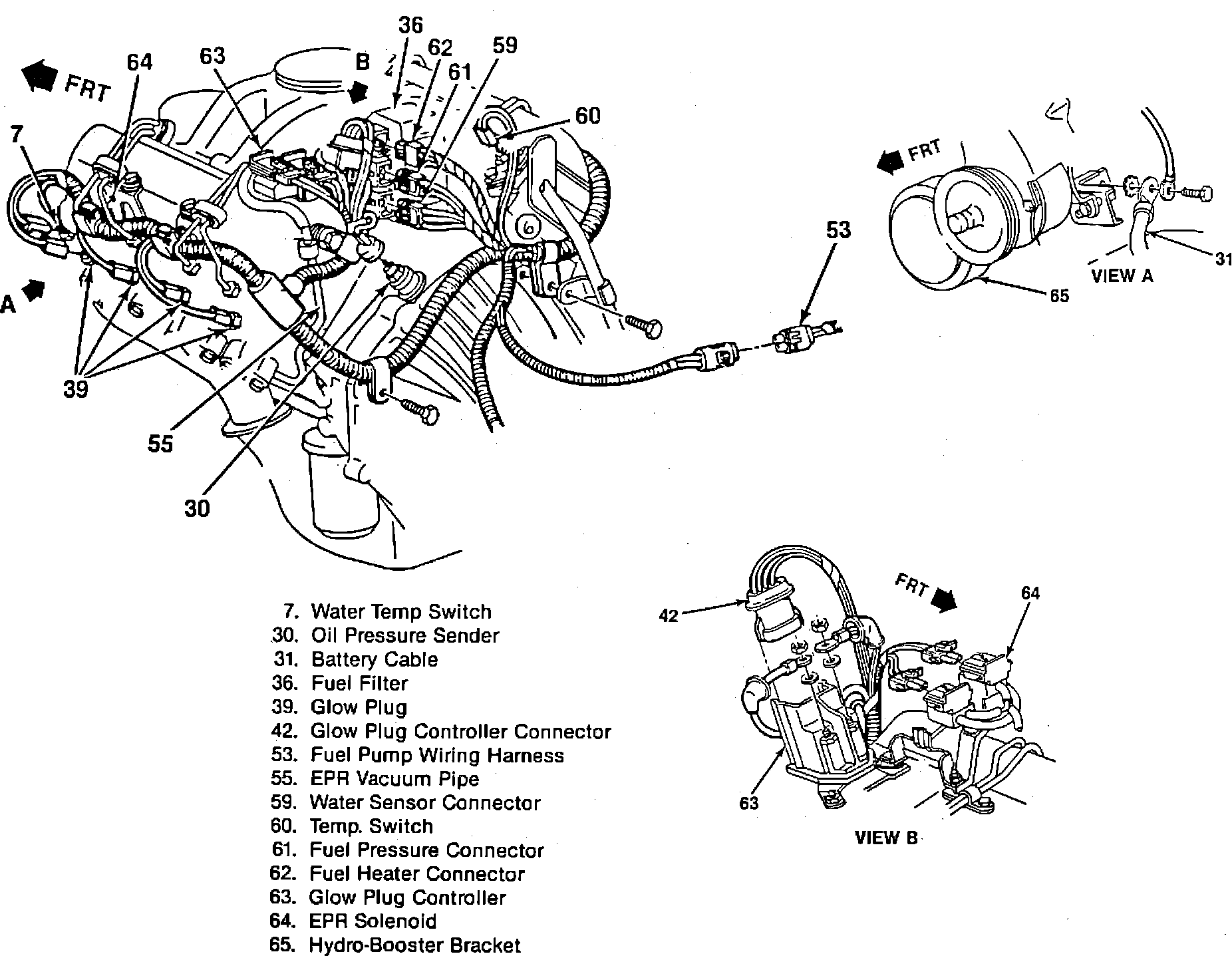

Top & LH side of V8-379/6.2L:
Top Of Engine
Applicable to: 2L engine. 1987 G series
