Vehicle Speed Sensor: Testing and Inspection

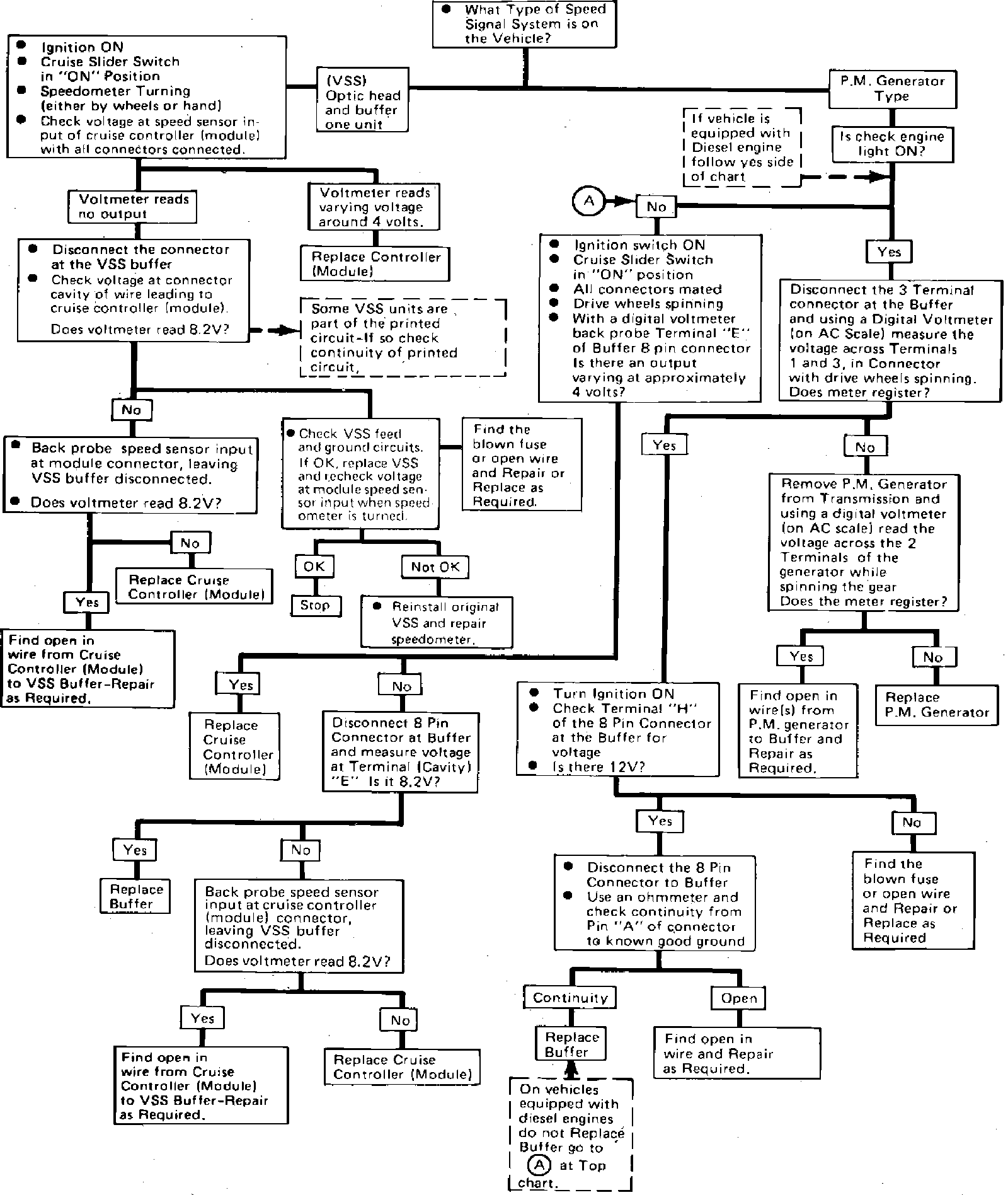

Fig. 17 Speed Sensor System Test (Custom Cruise III):





Refer to Fig. 17 to check speed sensor and related wiring.
