ECM Terminal Identification

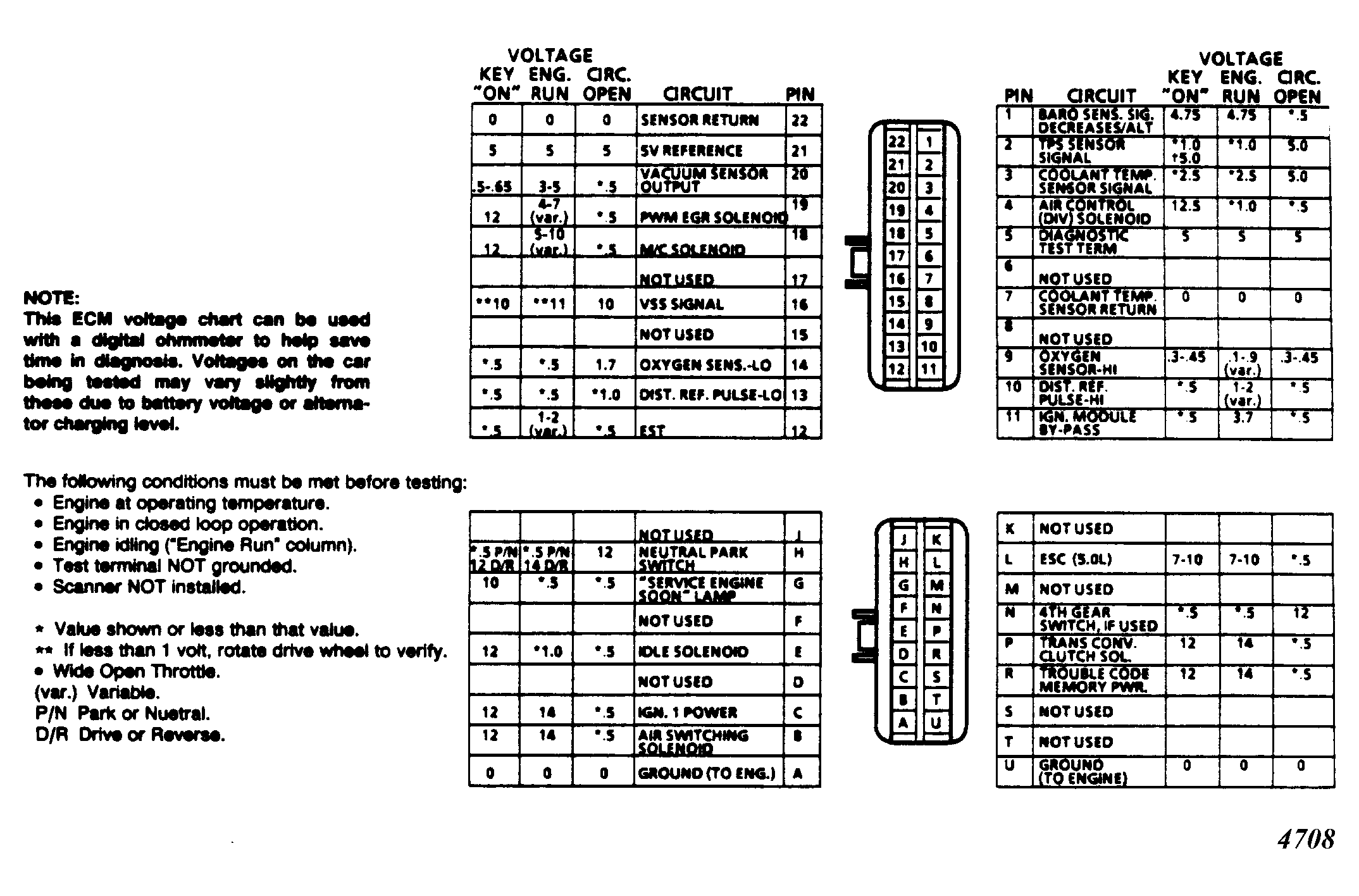

Fig 1: ECM Terminal Pin Voltage (1986 5.0L VIN G & H)
G4708

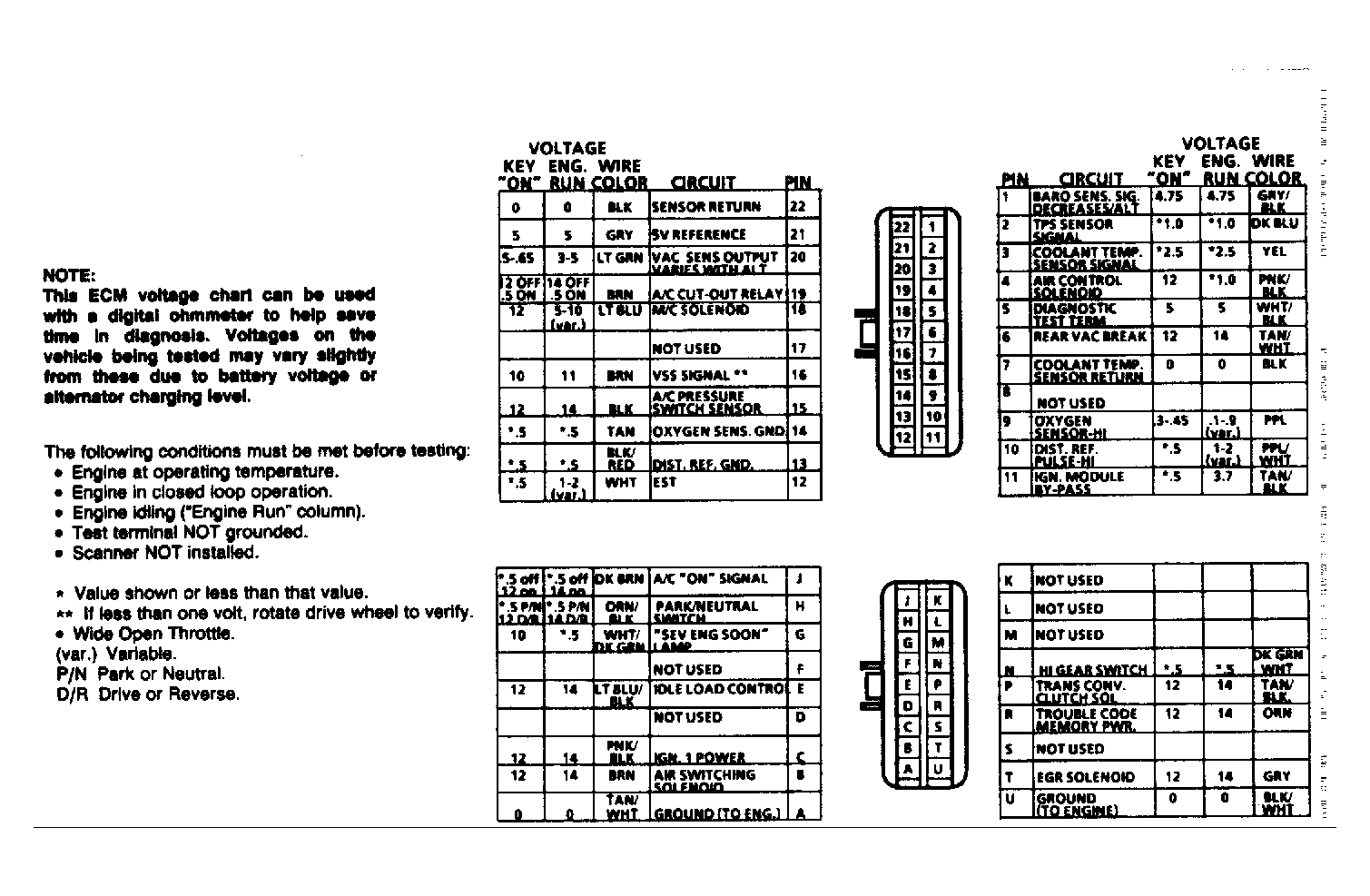

Fig 2: ECM Terminal Pin Voltage (1986 5.0L VIN Y & 9)
G4709

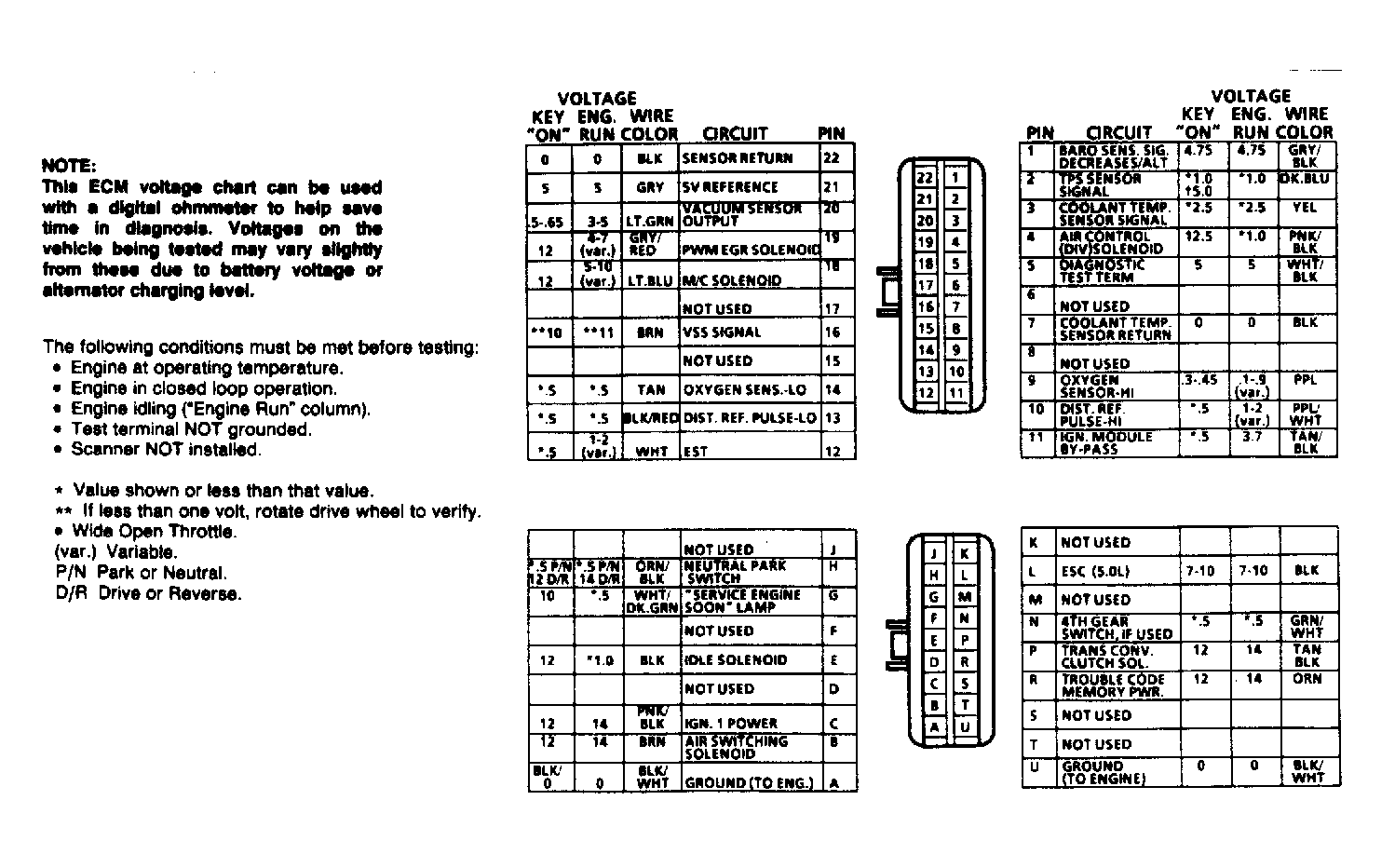

Fig 3: ECM Terminal Pin Voltage (1987 5.0L VIN G & H)
G7004

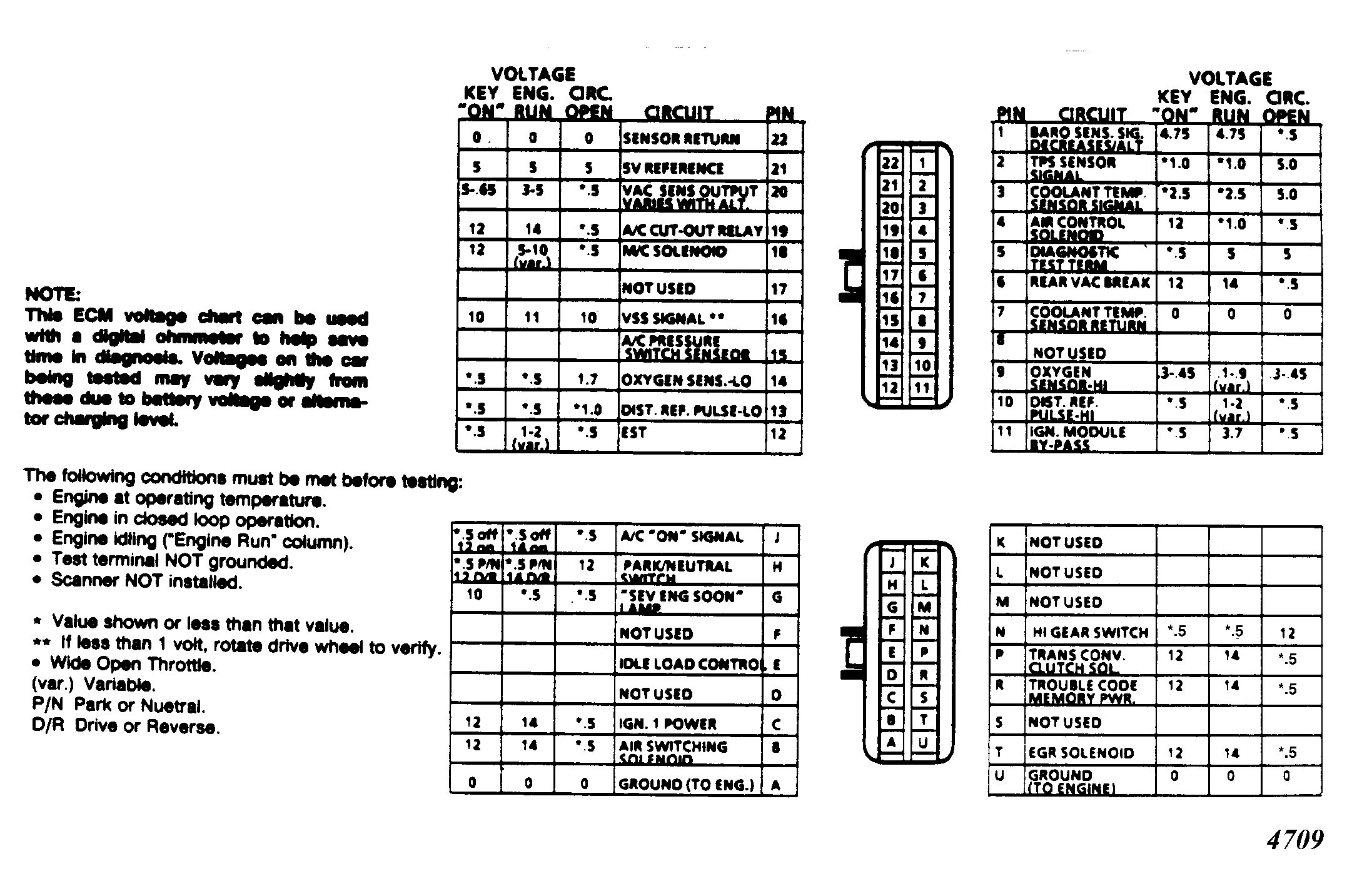

Fig 4: ECM Terminal Pin Voltage (1987 5.0L VIN Y & 9)
G7005
