Alternator Diode

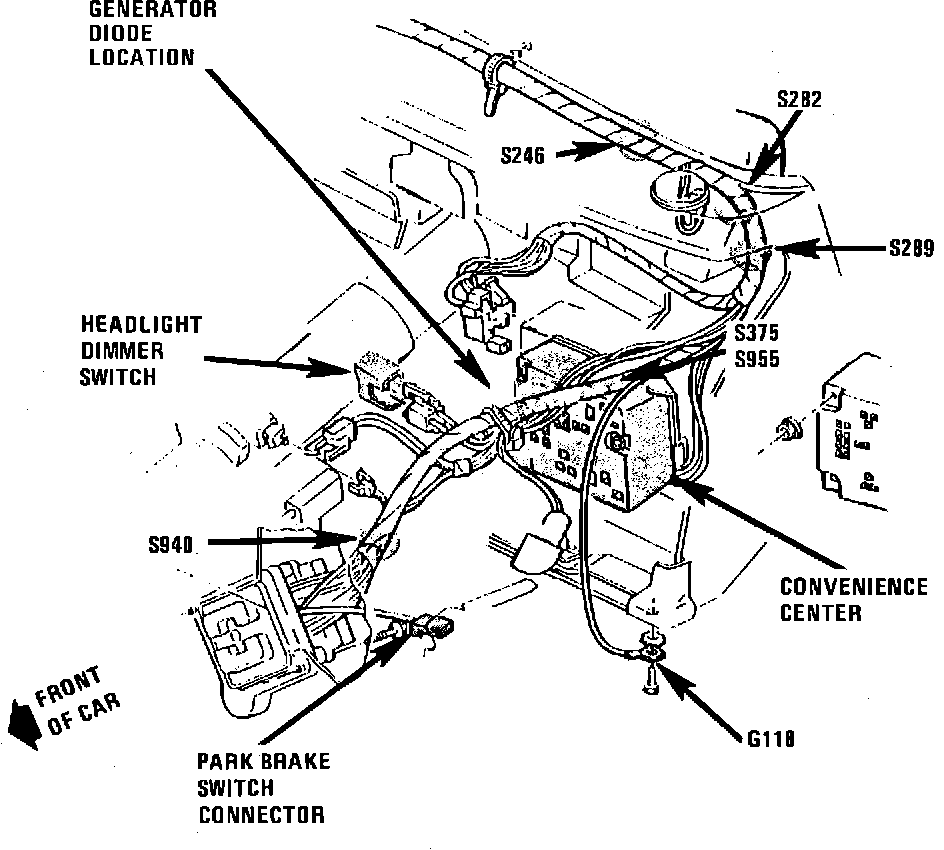

Behind LH Side Of I/P.:




In I/P Harness, Behind LH Side Of I/P

Applicable to: 1987 Caballero, El Camino & Monte Carlo
