ESC Half Function Box

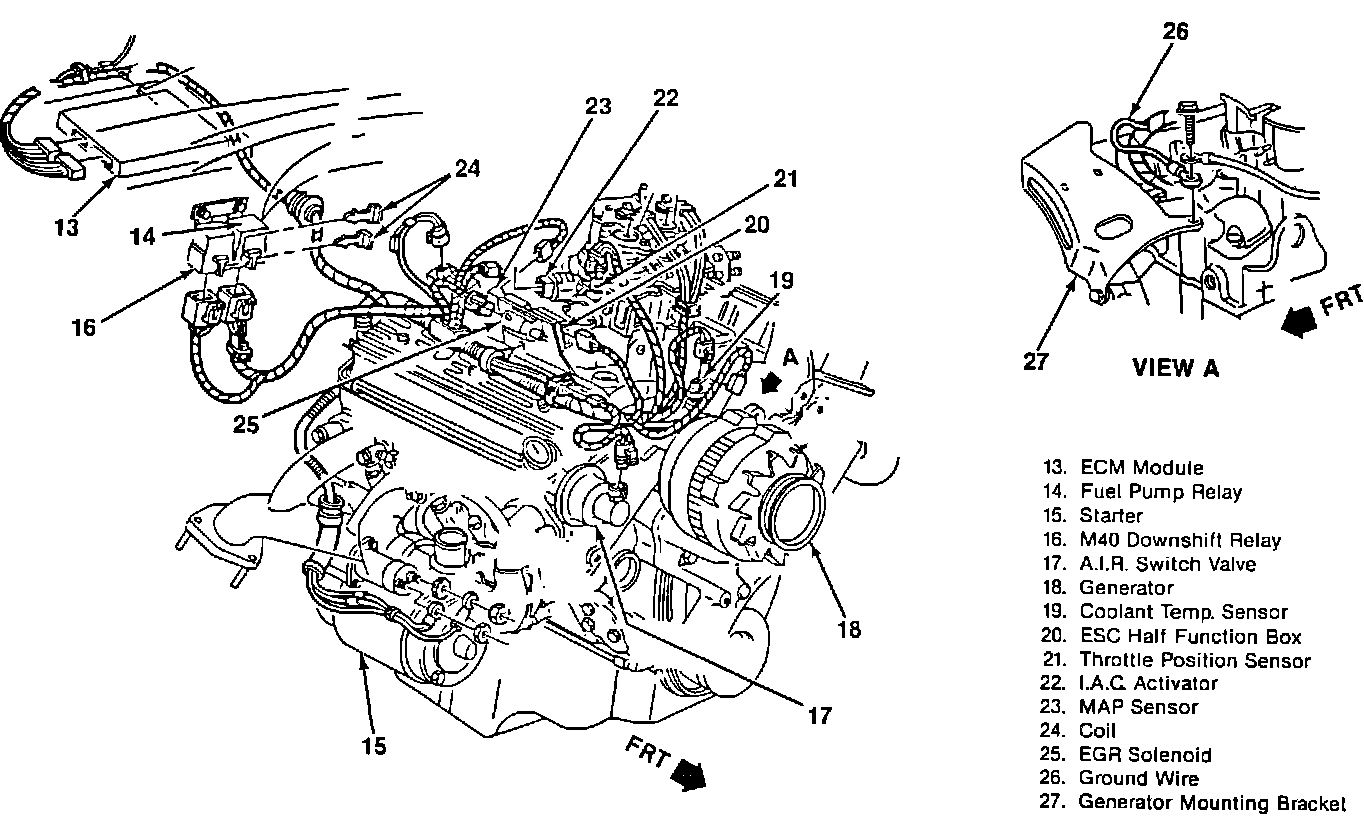

Firewall components & RH side of V6-262/4.3L:
Top Of Engine
Applicable to: 3L engine. 1987 R & V series
