Electronic/Powertrain Control Module (ECM/PCM)

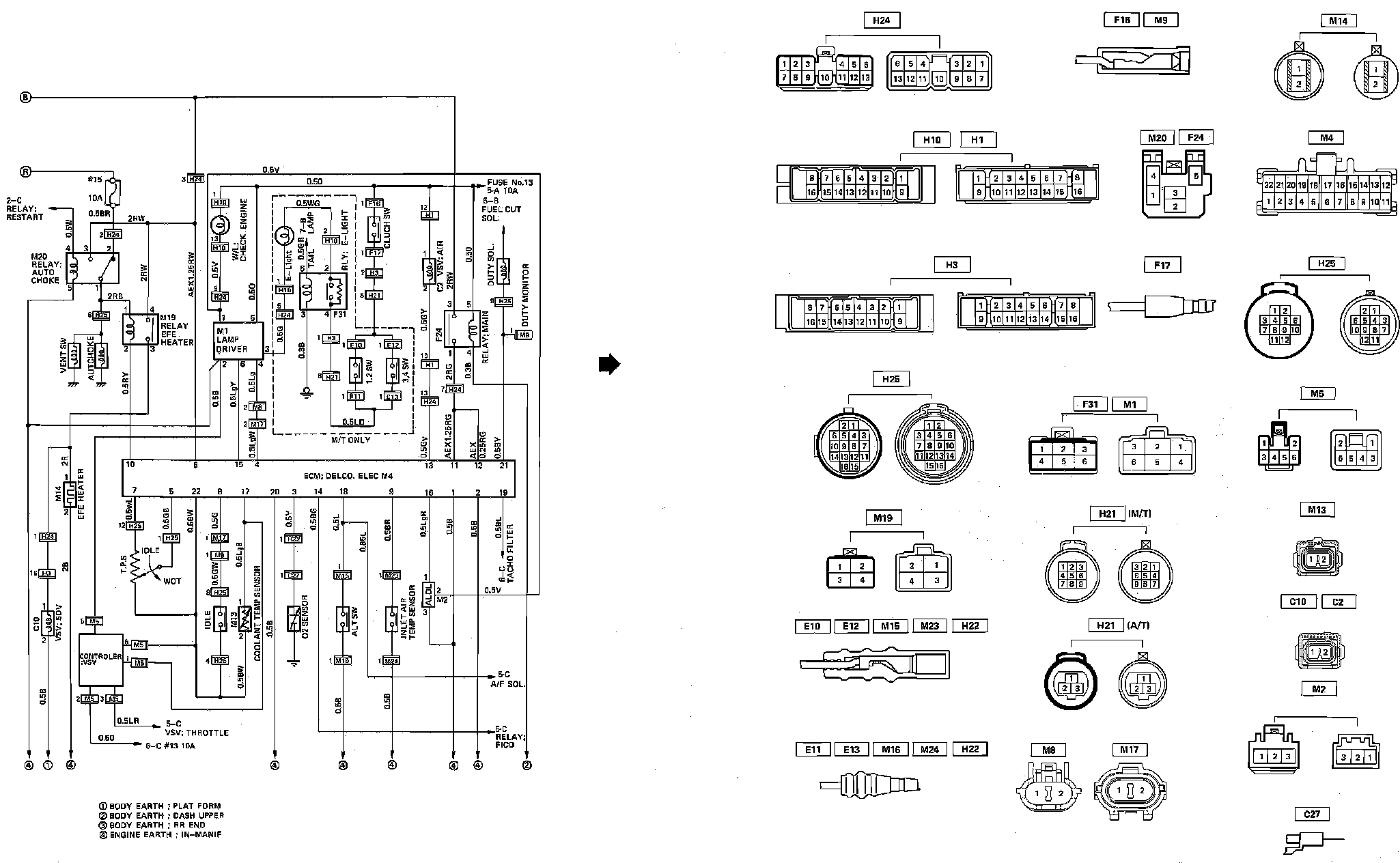

Fig. 018d Electronic Control Module Wiring Circuit. Non-Turbocharged Models:
