Control Valve

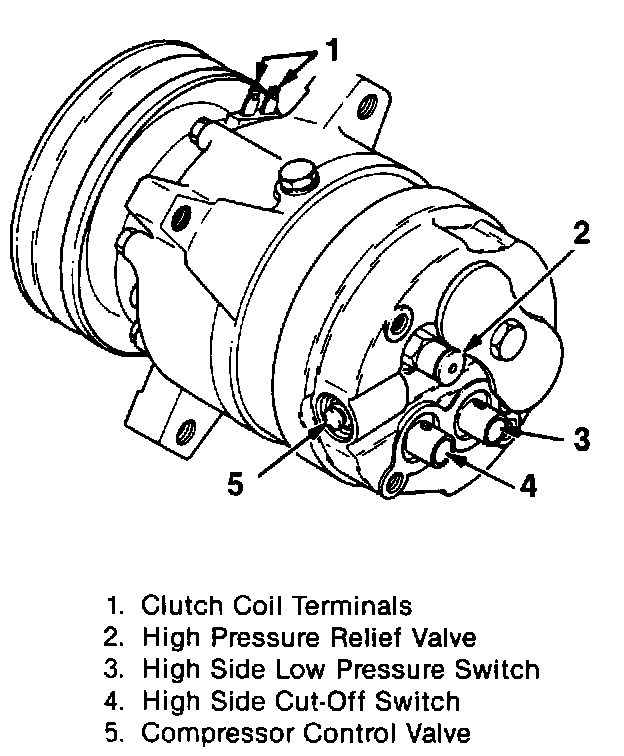

Rear Head Details:

DA-V5 Compressor Component View:

Remove or Disconnect

Tools Required:
J 5403 Snap Ring Pliers
J 9553-01 O-ring Seal Remover

1. Retainer ring with J 5403.
2. O-ring seal (44) with J 9553-01.
3. Valve (5).

Install or Connect

Tools Required:
J 5403 Snap Ring Pliers
J 33011 O-ring Seal Installer

1. Valve (5).
2. O-ring seal (44) with J 33011.
^ Dip the seals into new clean 525 refrigerant oil.
3. Retainer (45) with J 5403.
