Throttle Position Sensor: Locations

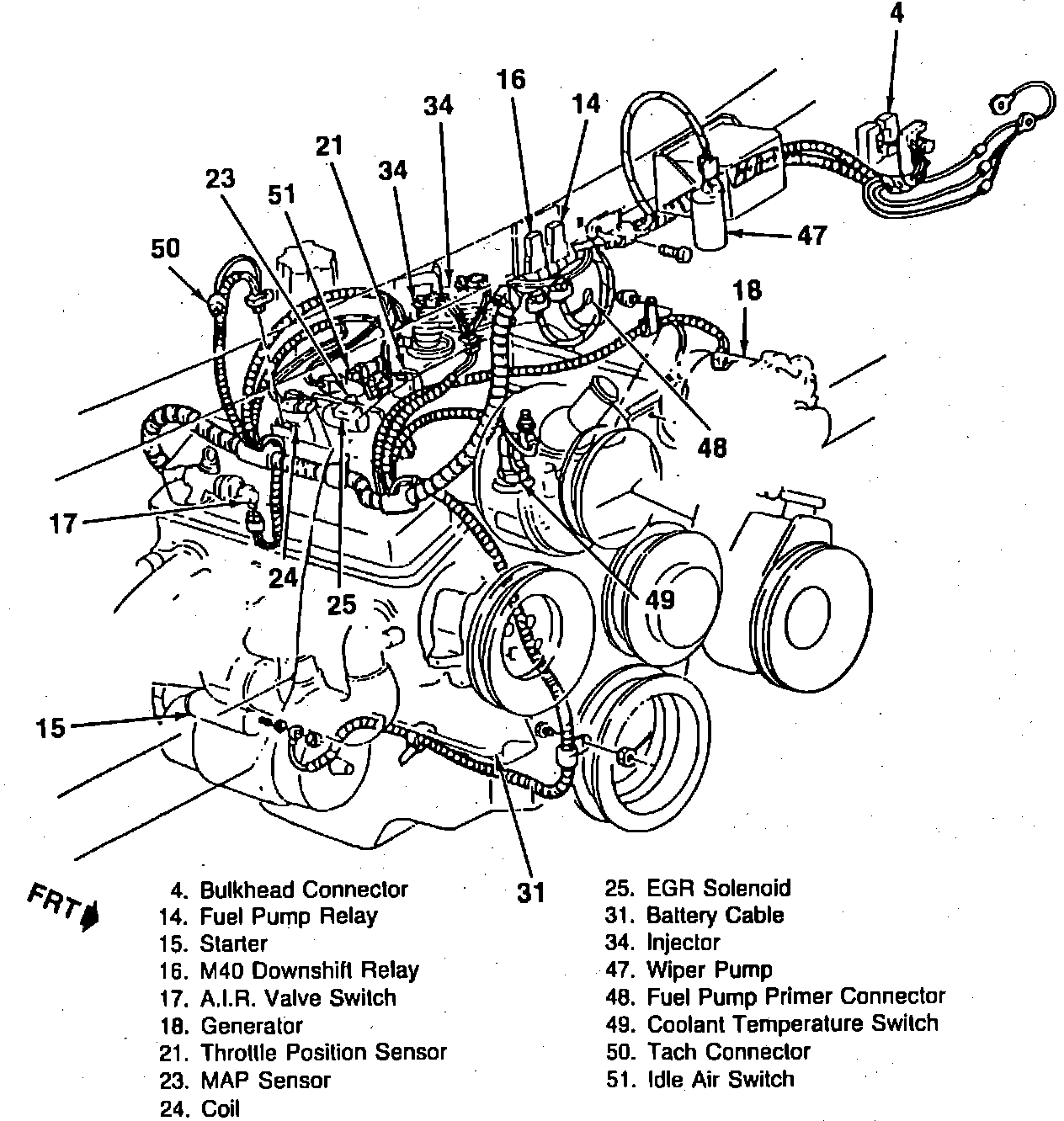

Engine Wiring (RH Side):

Top Of Engine

Applicable to: G Series w/V6-262/4.3L TBI Engine
