Nova/Chevy II L4-1600cc 4ALC Nummi
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

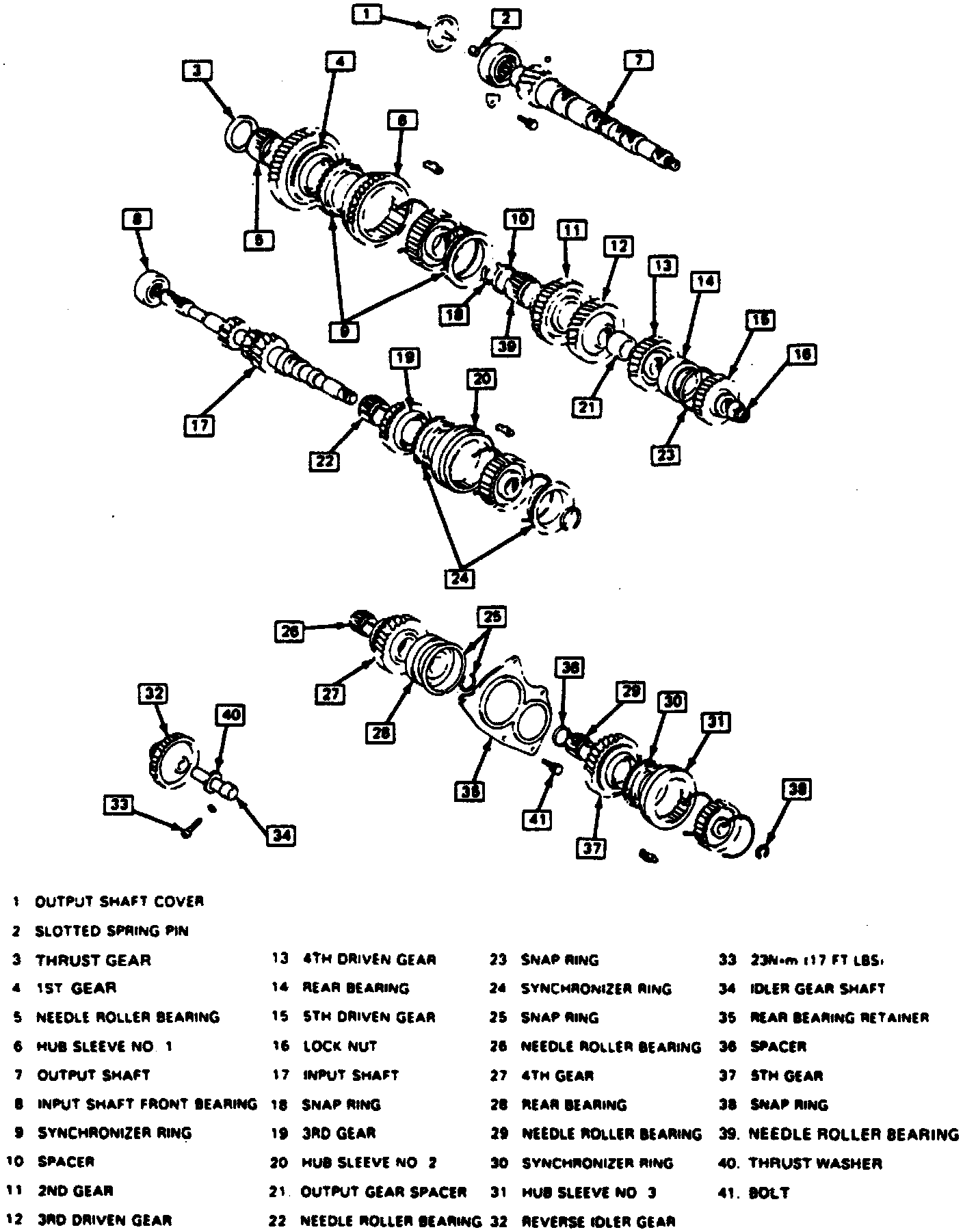

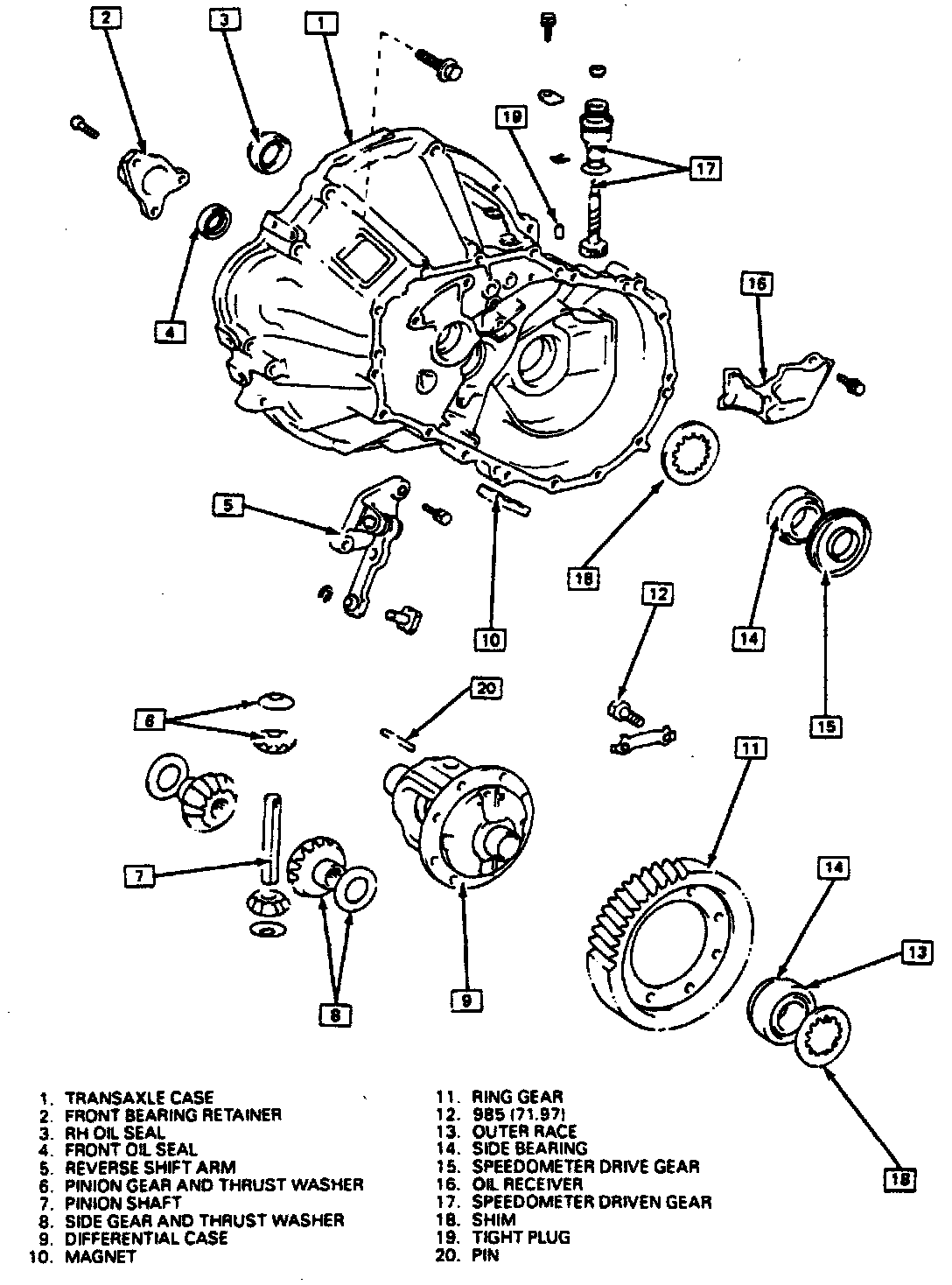

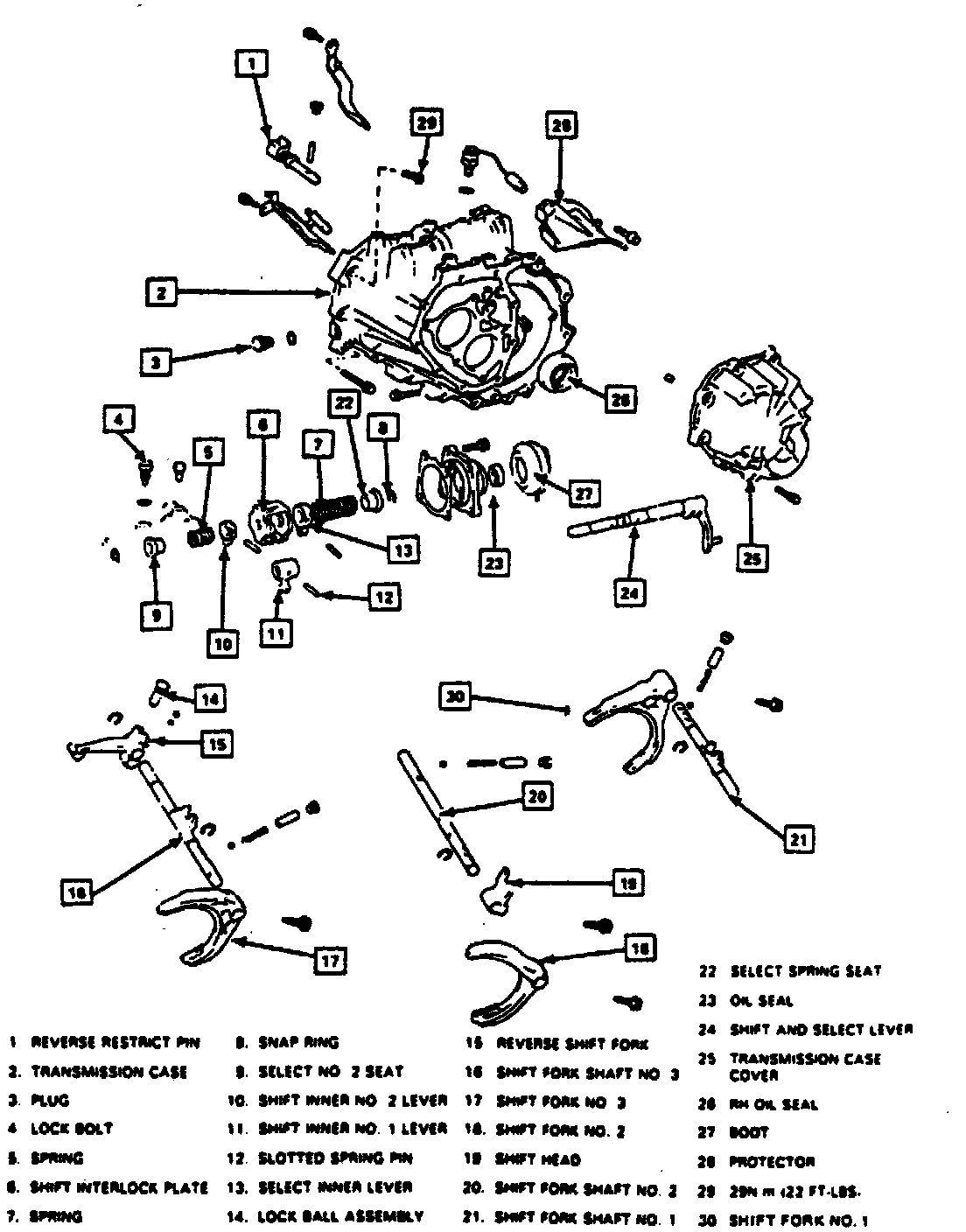

Manual Transmission/Transaxle
Description:
Description:
Description:
