Distributor: Locations

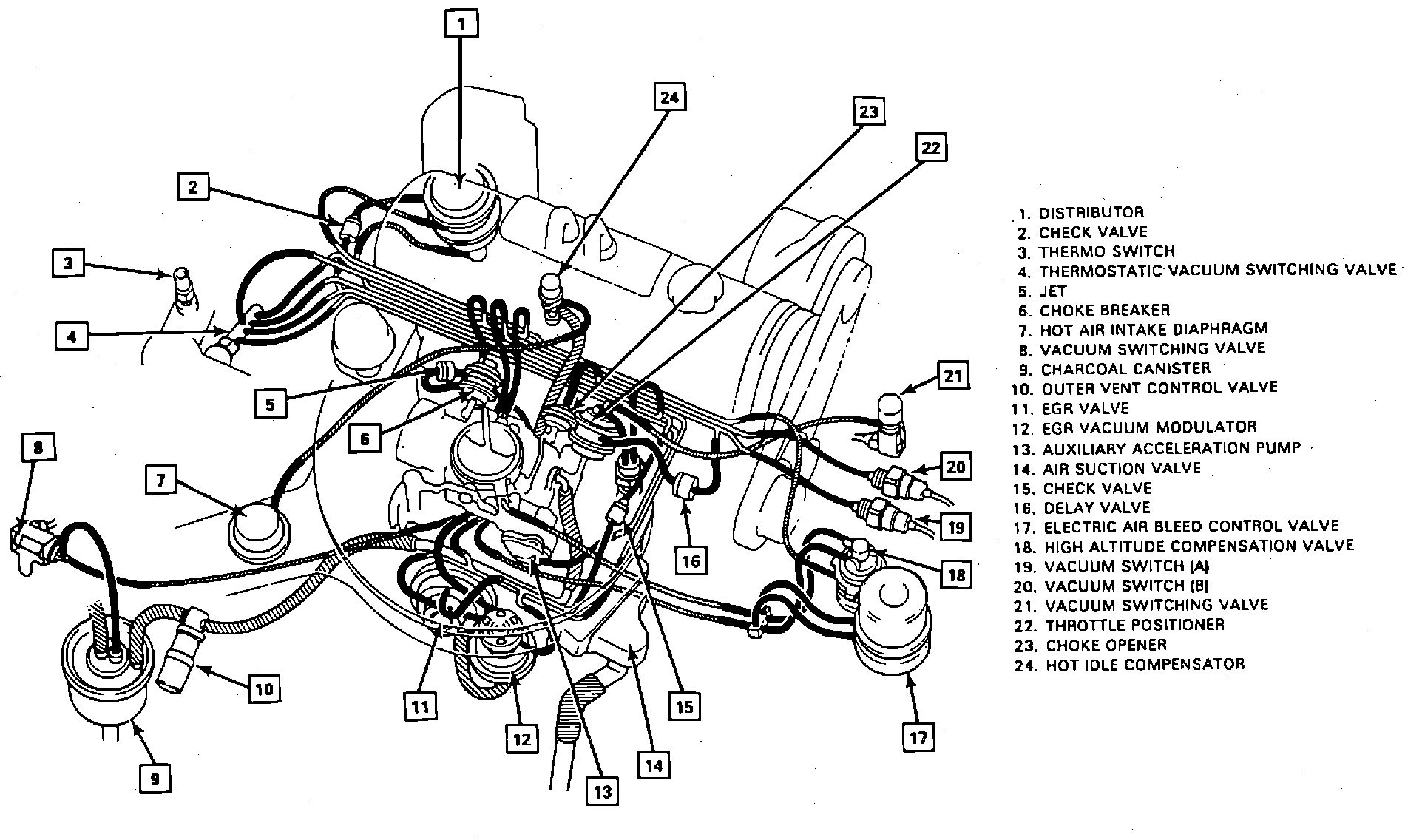

Engine Components:




LH Side Of Engine

Applicable to: Calif. Models w/Auto. Trans.

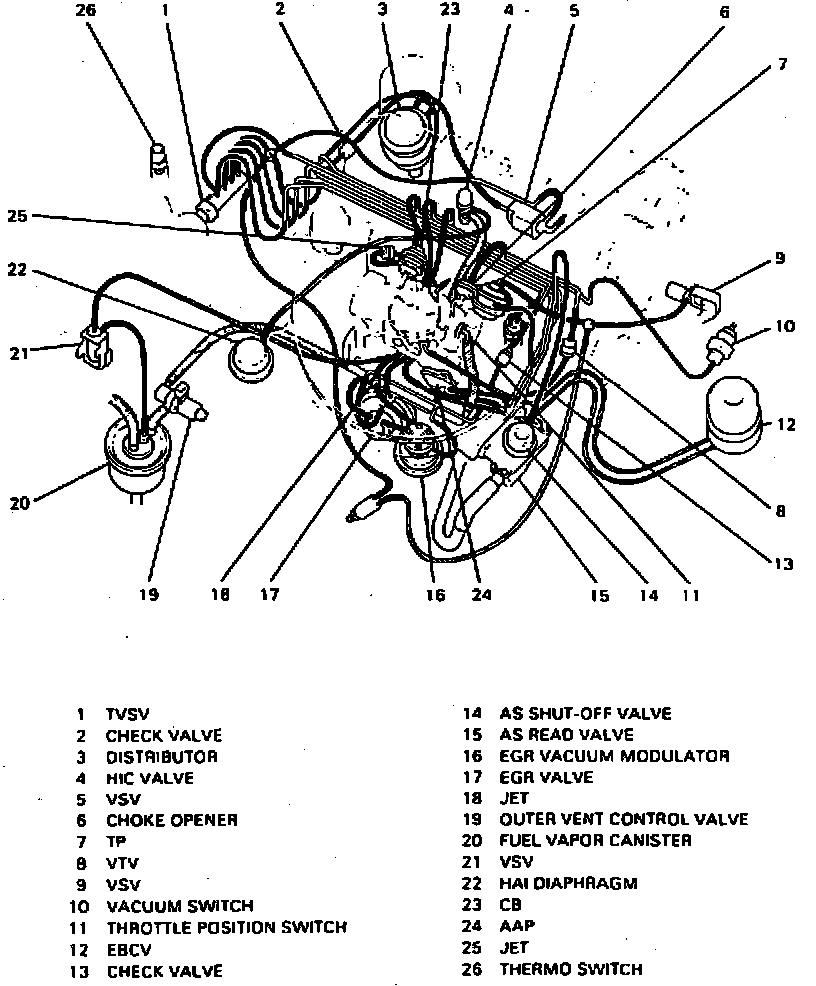

Engine Components:




LH Side Of Engine

Applicable to: Federal Models w/Auto. Trans.

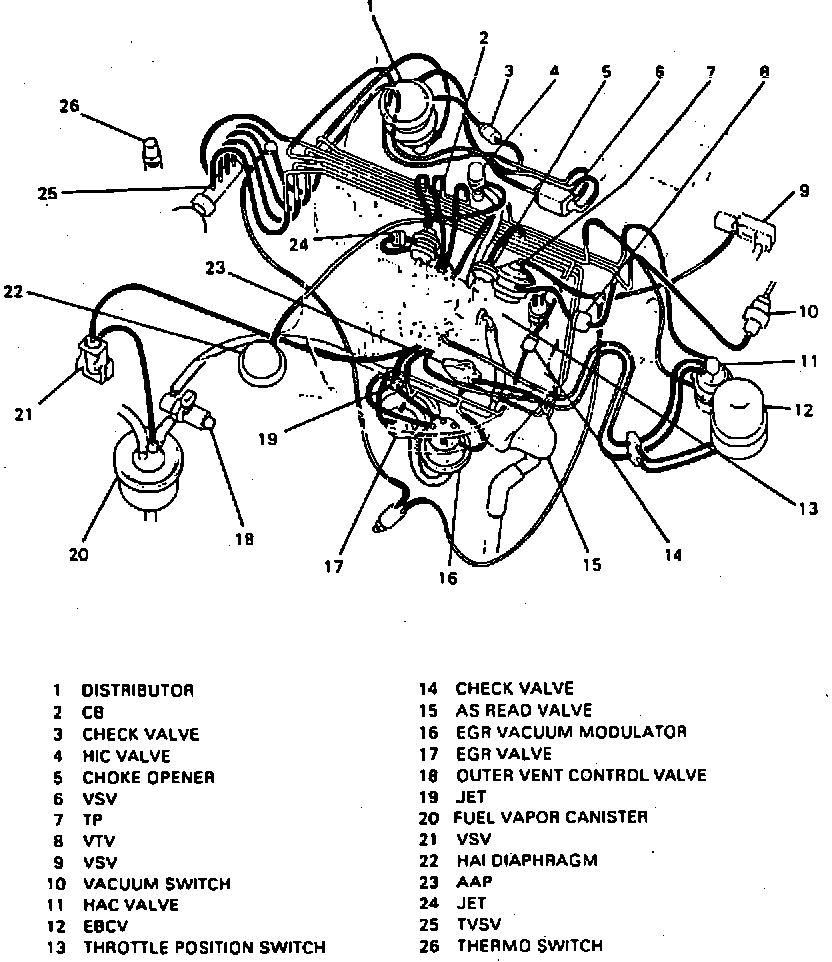

Engine Components:




LH Side Of Engine

Applicable to: Calif. Models w/Man. Trans.

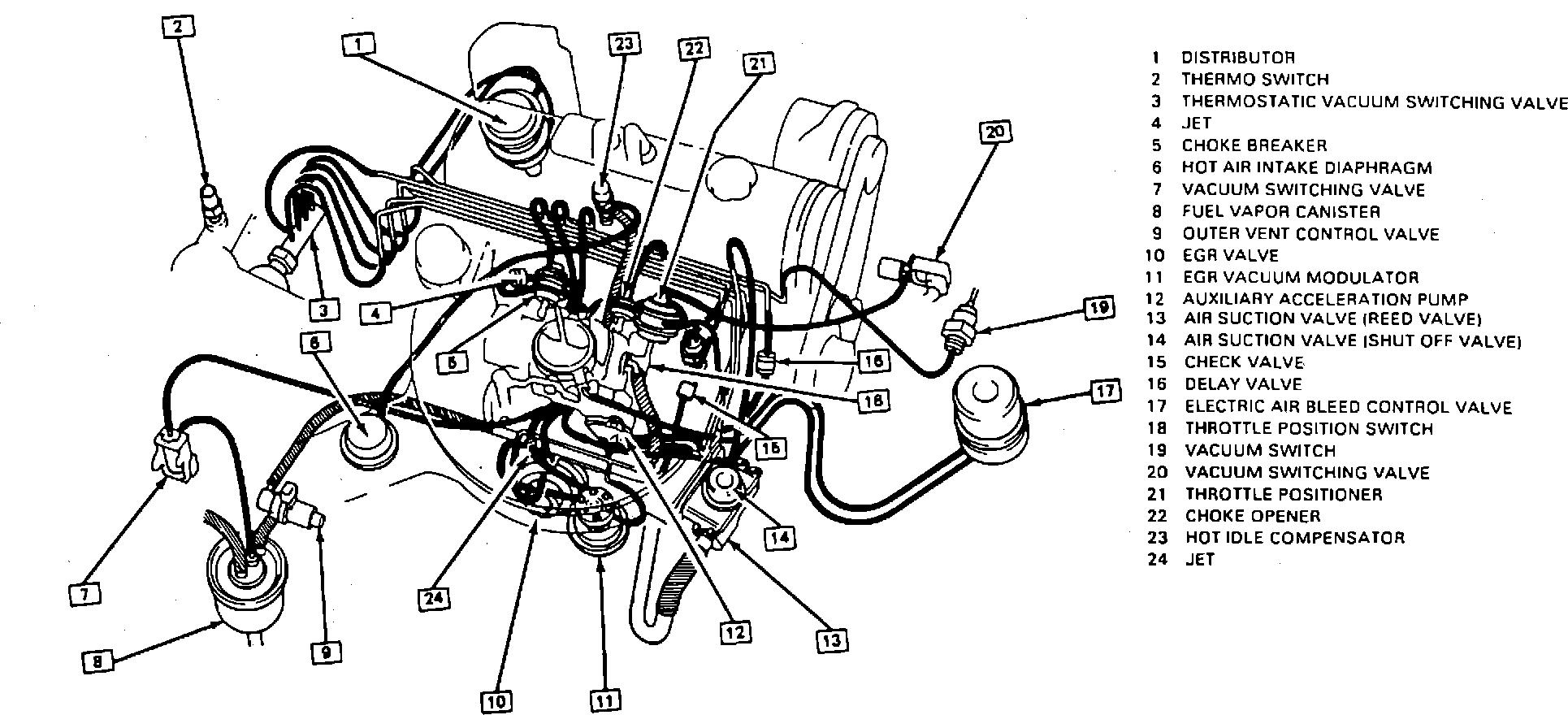

Engine Components:




LH Side Of Engine

Applicable to: Federal Models w/Man. Trans.
