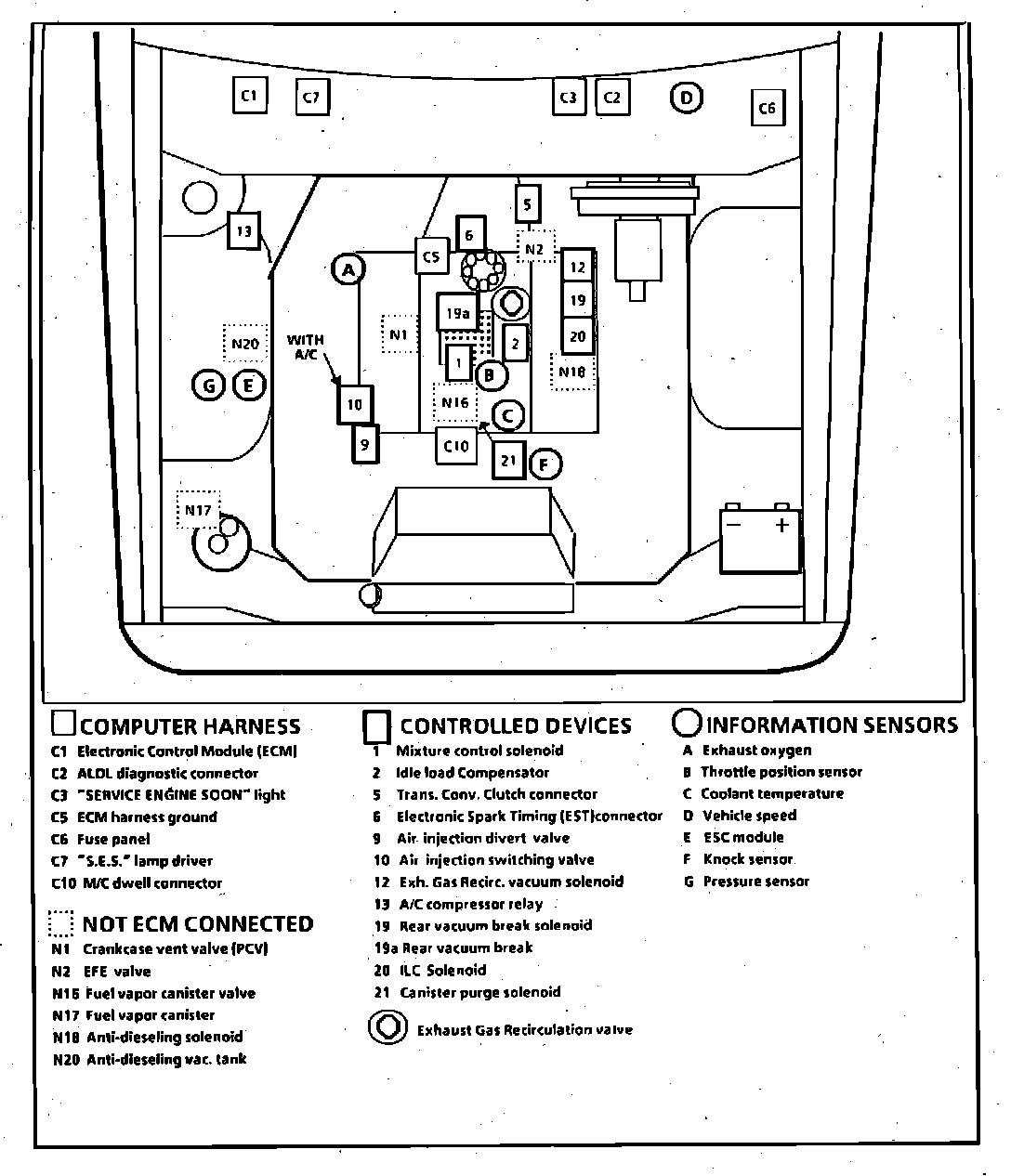

ECM Module
Engine & Underhood Components:
Under RH Side Of I/P, Near Glove Box
Applicable to: 1989 Models w/V8-307/5.0L Carbureted
