Timer Module

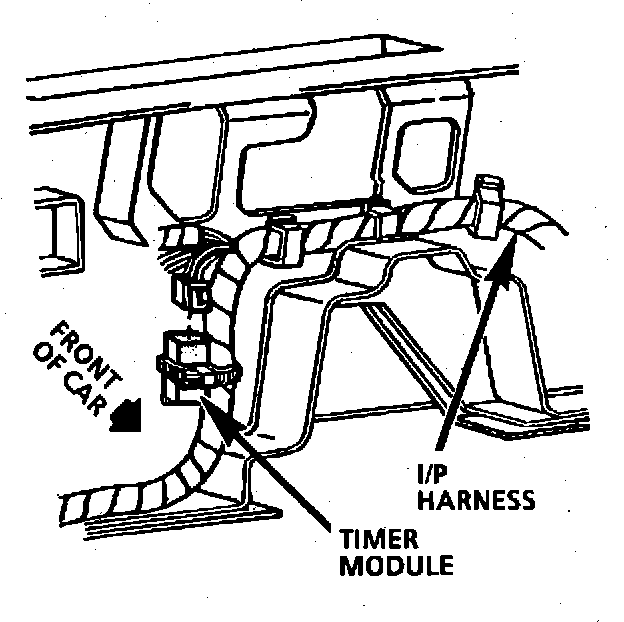

Timer Module.:

Behind I/P, Right Of Steering Column

Applicable to: 1990 Caprice & Estate Wagon
