Caprice V8-307 5.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control Module

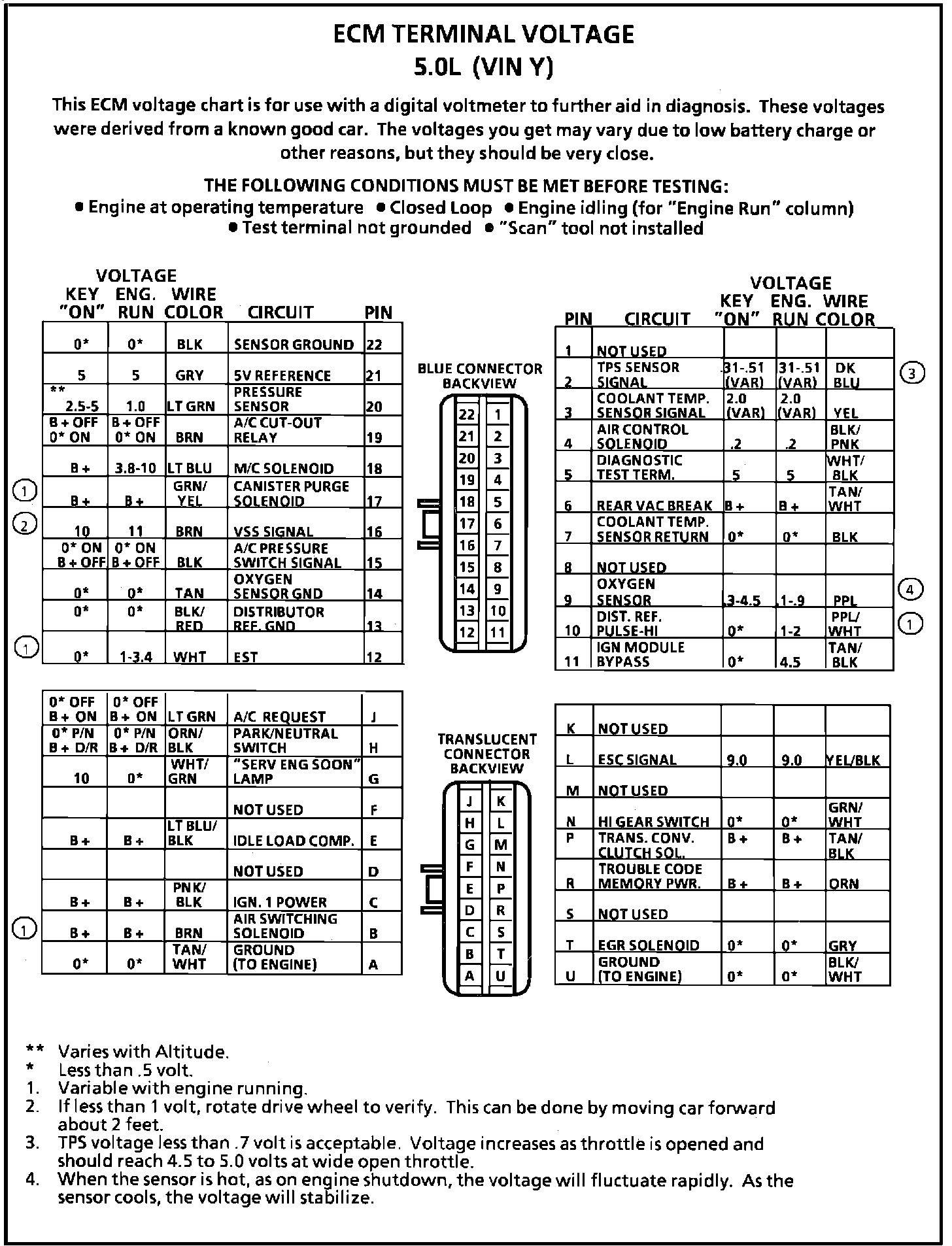

ECM Terminal Voltage:
