Compressor Replacement

Compressor 2.2l:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Recover refrigerant from A/C system.
3. Serpentine drive belt.
4. Raise vehicle and remove right air dam and splash shield.
5. Electrical connector at compressor clutch.
6. Refrigerant line connection at rear of compressor.

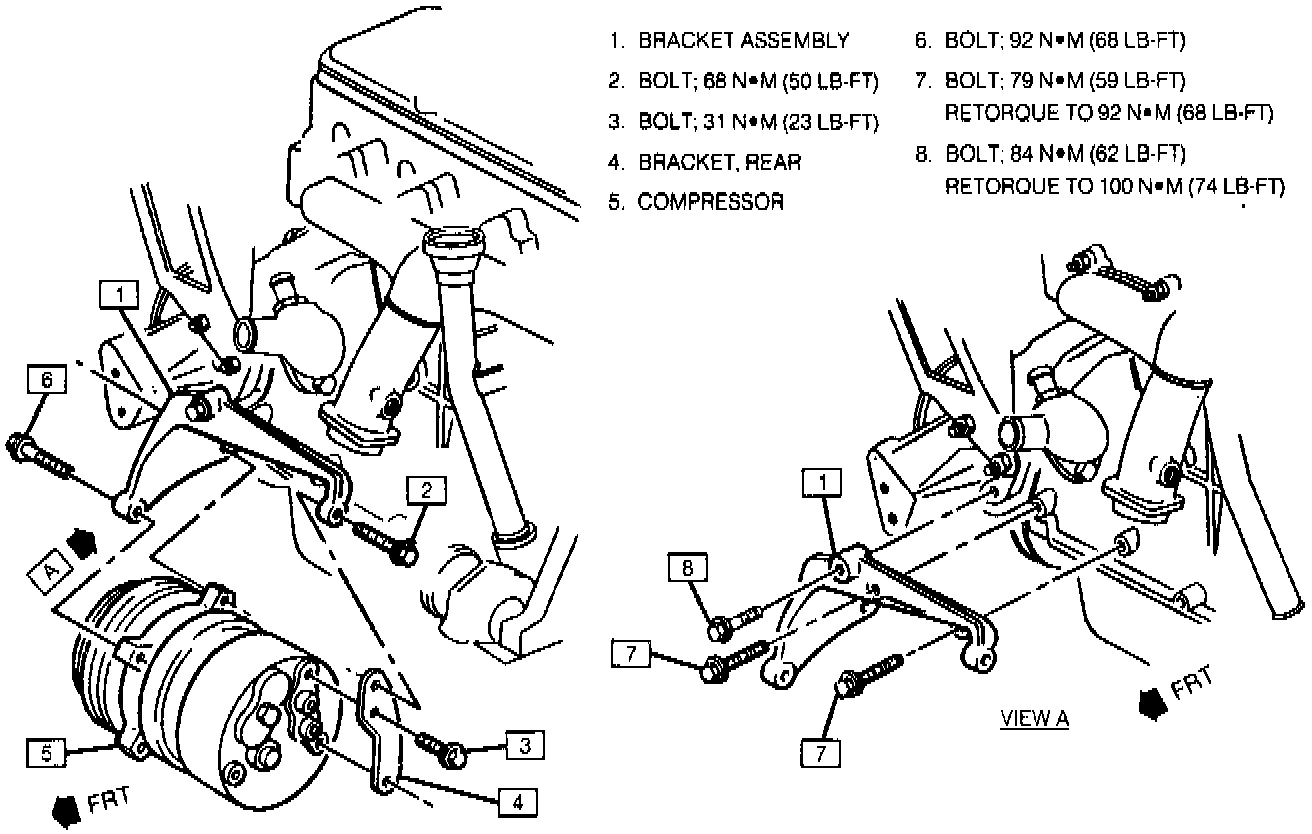

7. Compressor attaching bolts and compressor.

INSTALL OR CONNECT
1. Compressor and attaching bolts.
2. Serpentine drive belt.
3. Refrigerant line at rear of compressor.
4. Electrical connector at compressor clutch.
5. Right air dam, splash shield and lower vehicle.
6. Negative battery cable.
7. Evacuate, charge, and leak test A/C system.
