Oil Pressure Sensor: Service and Repair

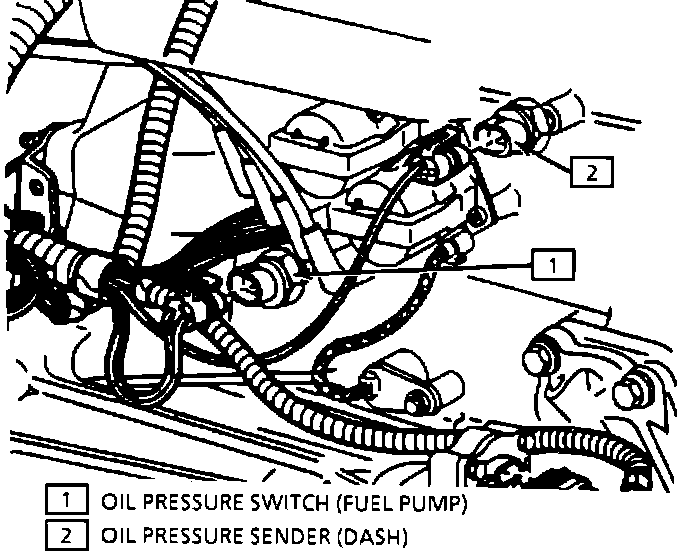

Oil Pressure Switch Located On RH Side Of Engine.:

Oil sender is located on right hand side of engine, under the DIS coils, under the intake manifold.
Remove oil sender by using correct tool on the base of the sending unit. Do not use the body of the oil sender for installation/removal. Use appropriate sealer on threads.
