Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

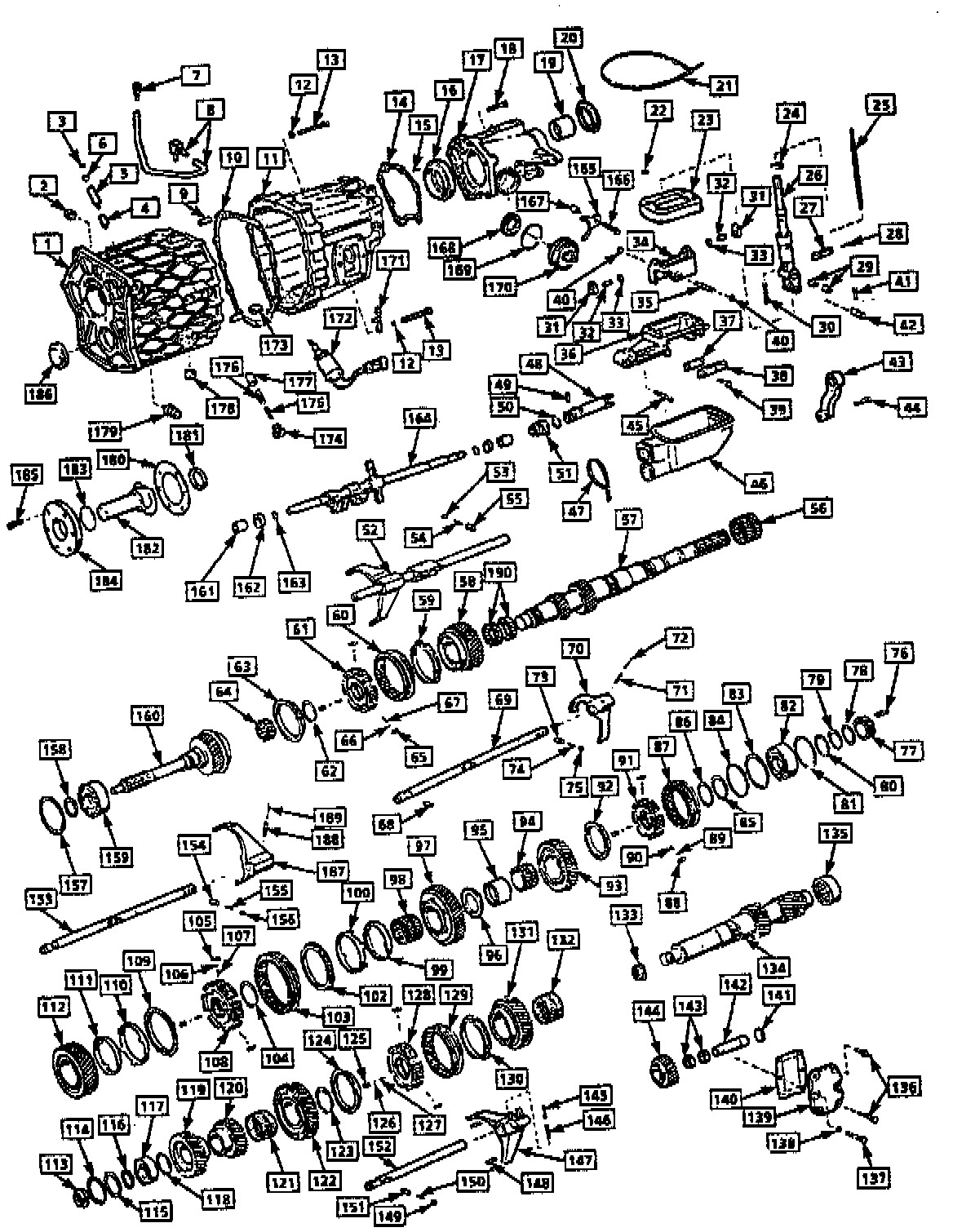

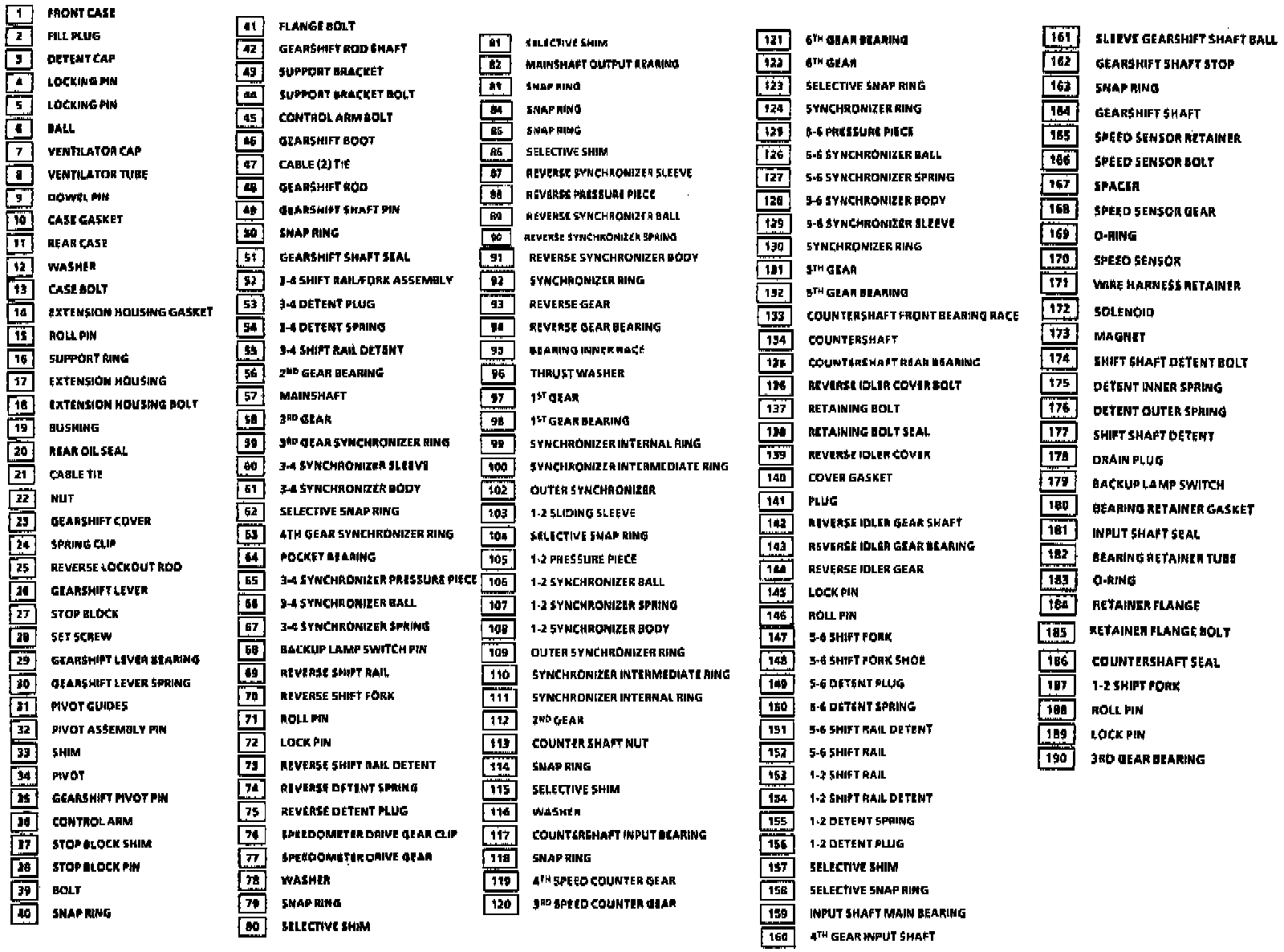

Manual Transmission/Transaxle
1 of 2:
2 of 2:
