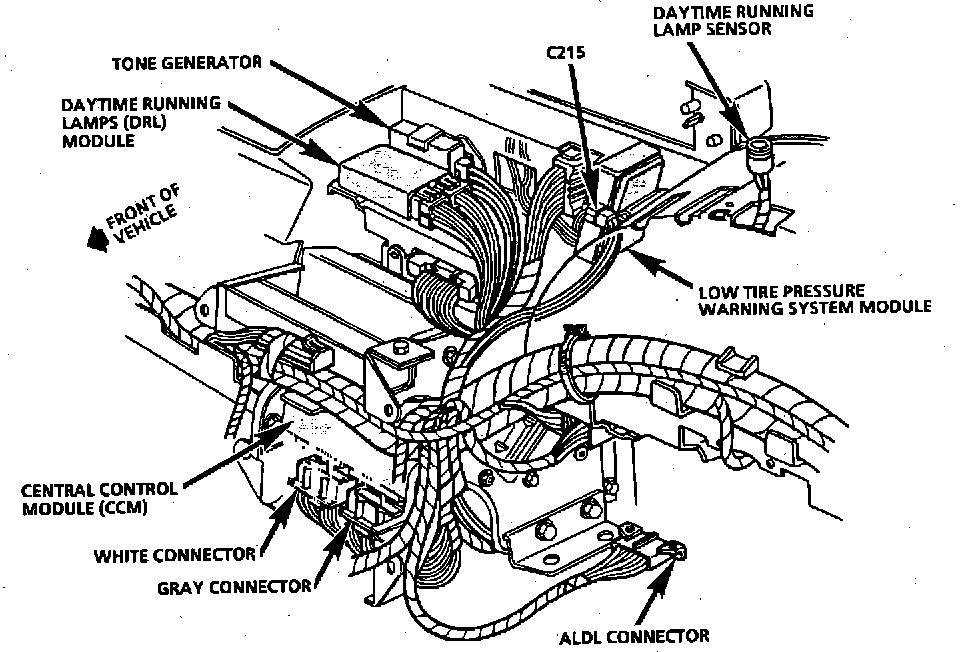

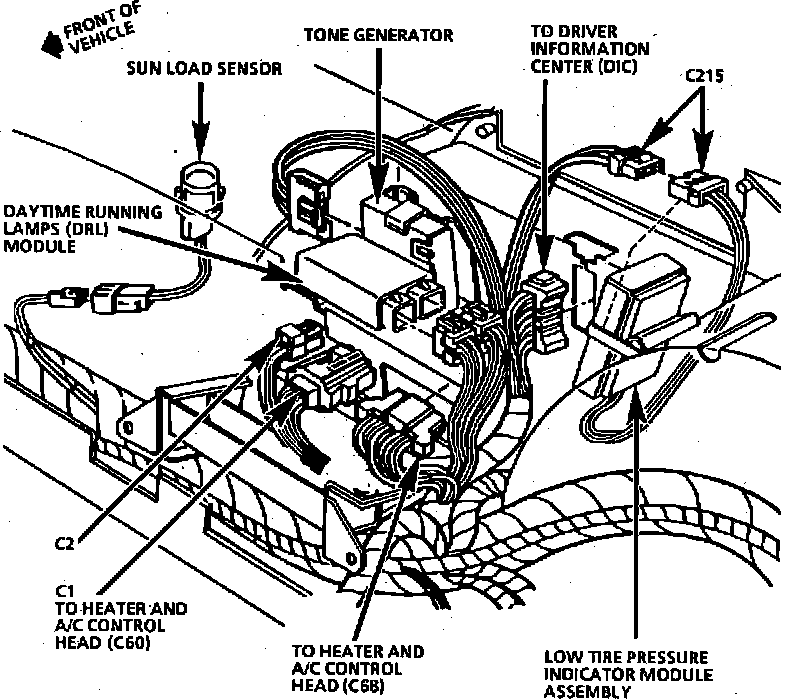

Low Tire Pressure Warning System Module

Tone Generator.:




Central Control Module Component Location.:





Behind Center Of I/P Carrier
