Vehicle Speed Sensor: Locations

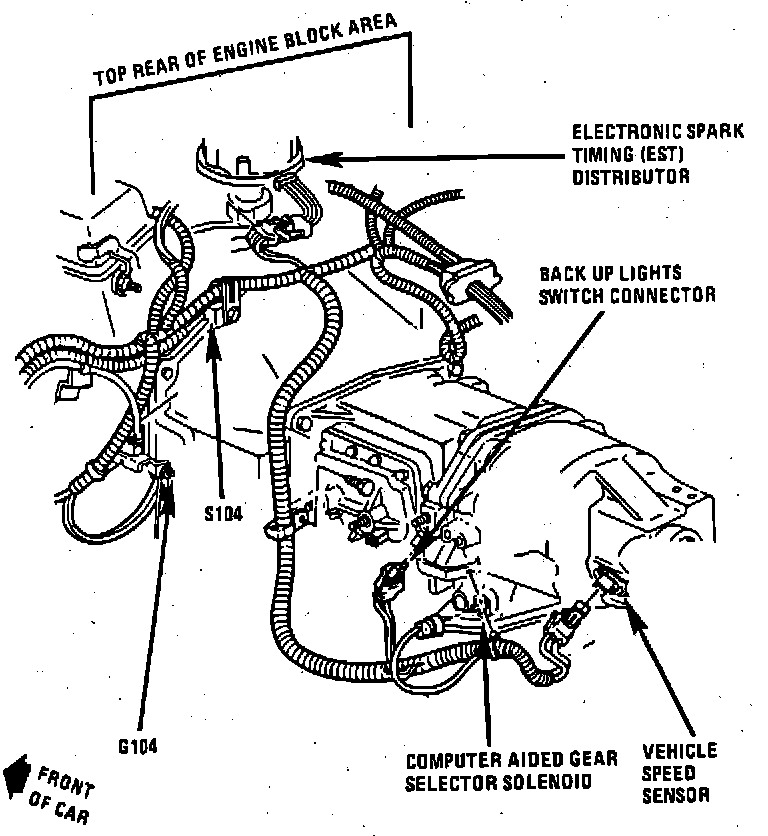

LH Rear Of Engine Wiring & Component Locations.:




LH Rear Of Transmission Tailshaft Housing

Applicable to: 1989
