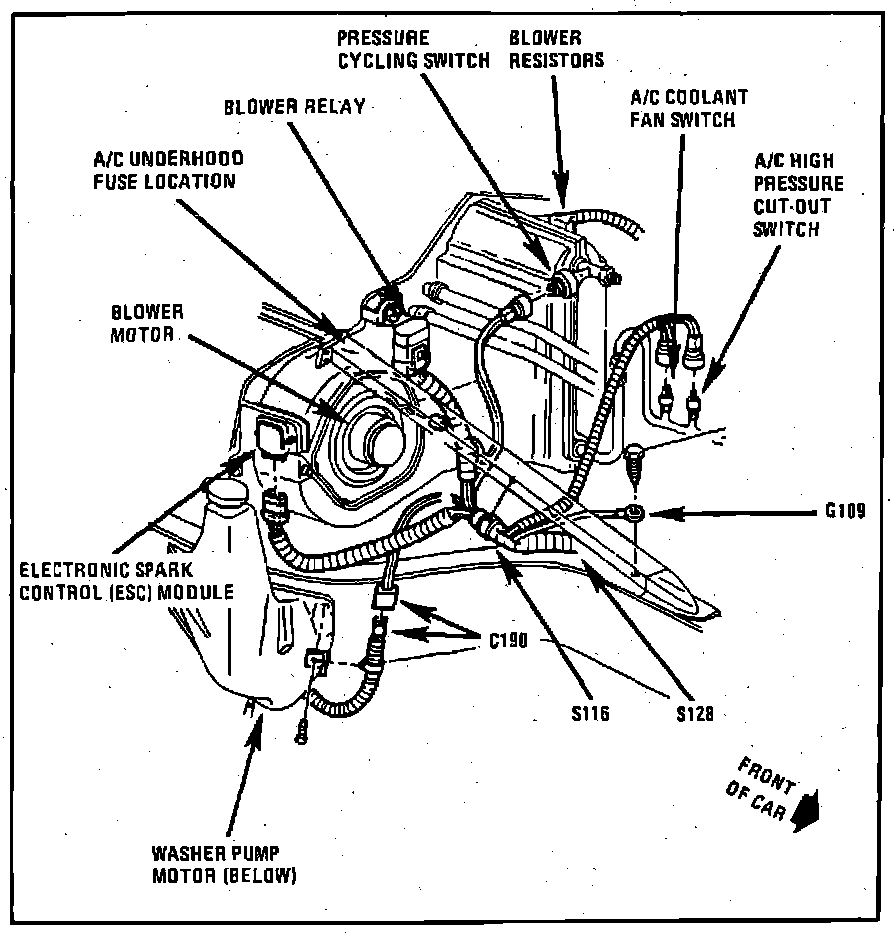

Electronic Spark Control Module

A/C Component Locations.:

RH Front Of Dash, On RH Side Of Evaporator Housing

Applicable to: 1989
