PCV System

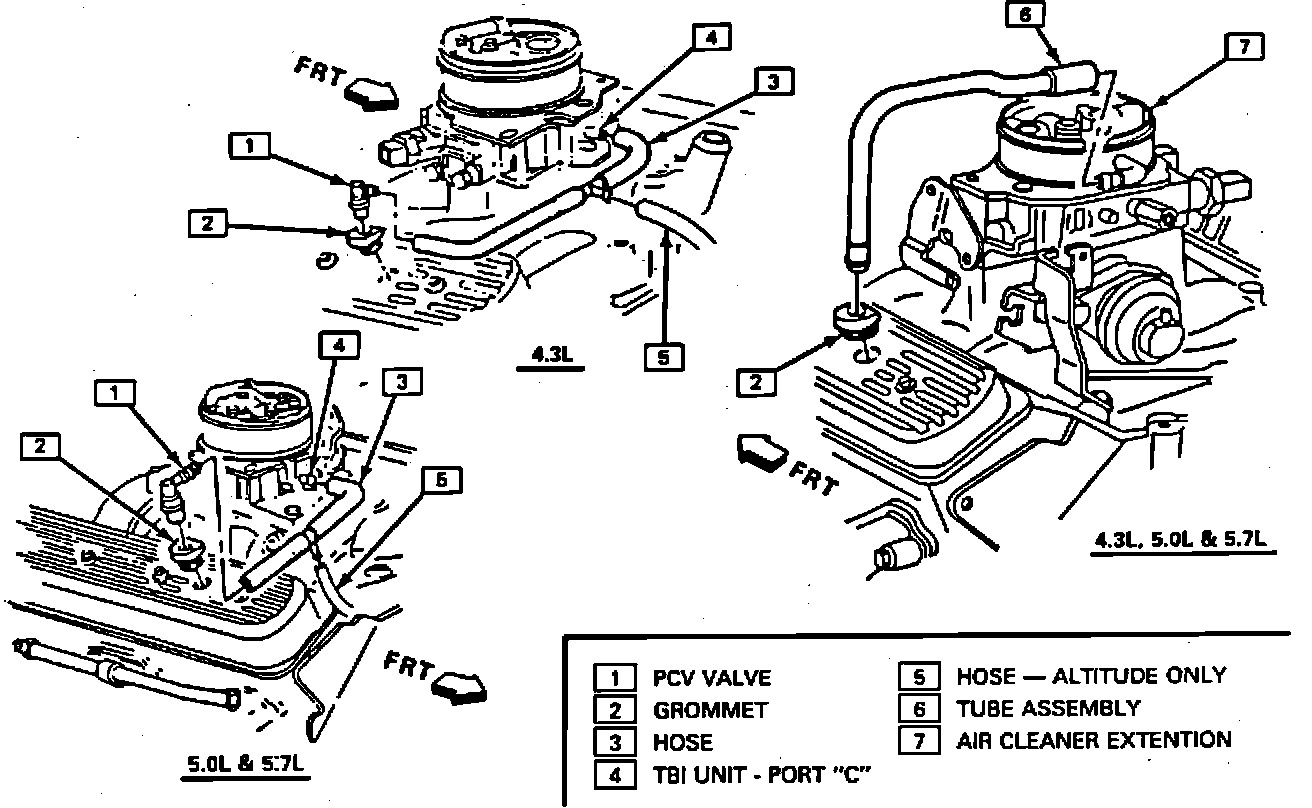

PCV System:
Top Of Engine On Valve Cover
Applicable to: V6-262/4.3L, V8-305/5.0L & V8-350/5.7 Engines
