Throttle Position Sensor: Locations

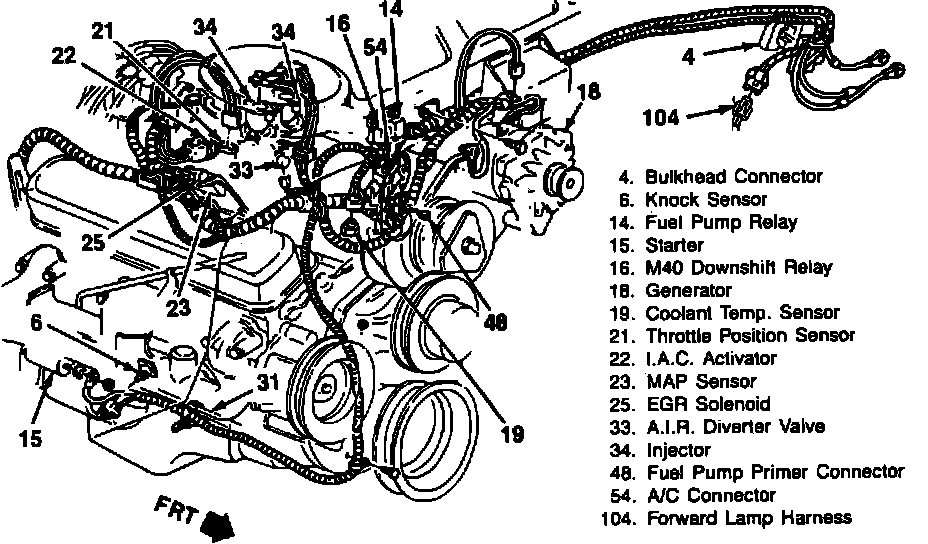

Engine Compartment.:




Top Of Engine

Applicable to: G Series w/V8-305/5.0L & V8-350/5.7L Engine

RH Side Of Engine.:




Top Of Engine

Applicable to: G Series w/V8-305/5.0L & V8-350/5.7L TBI Engine
