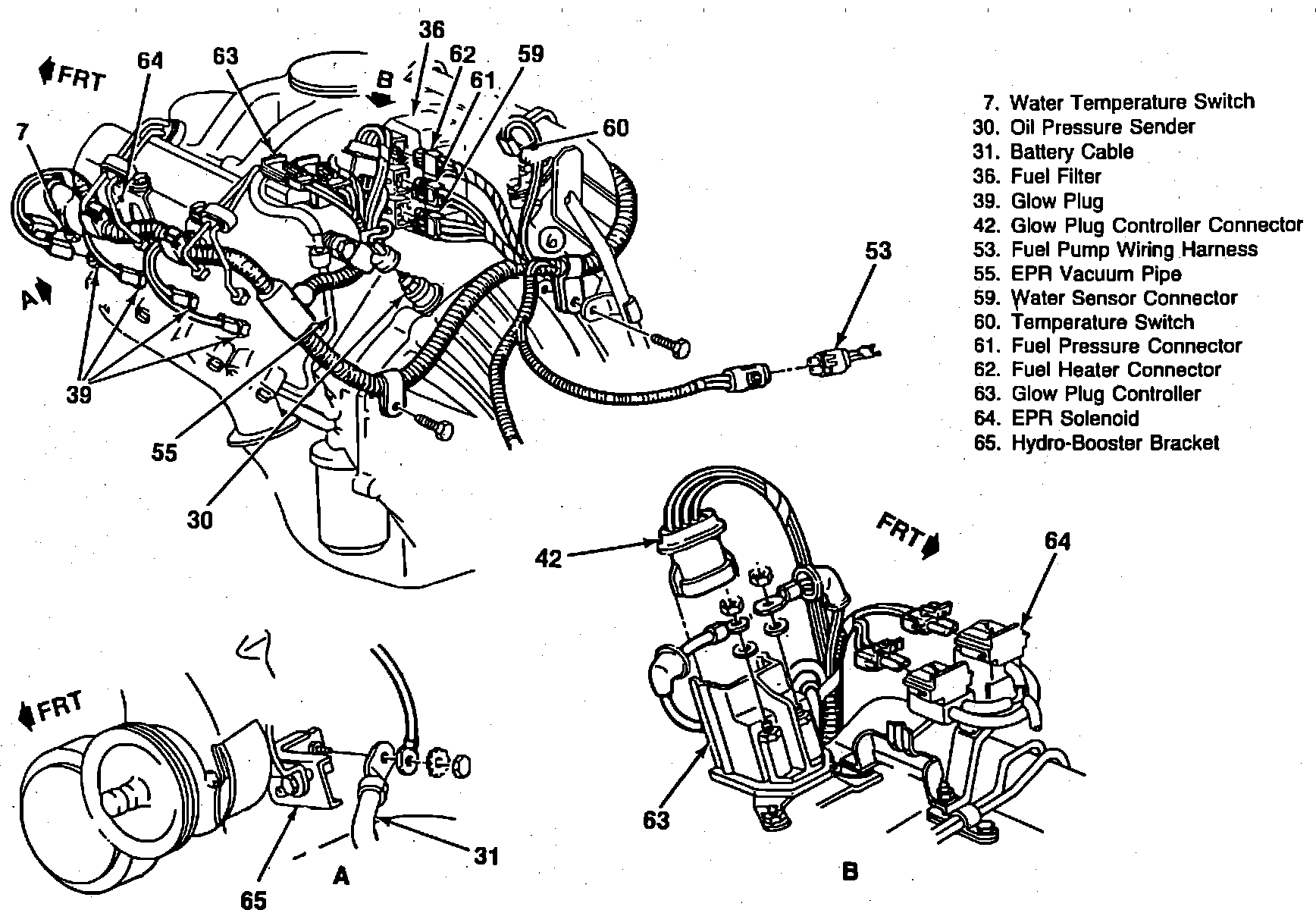

Glow Plug Controller
Engine Wiring (LH Side):
LH Rear Of Engine
Applicable to: G Series w/V8-379/6.2L Diesel
