Front Wiper Motor Test

  1. Remove wiper motor. See FRONT WIPER MOTOR & DRIVE ARM ASSEMBLY  . Apply battery voltage and ground to designated terminals in specified switch positions. It may be necessary to use a 1/2 watt (680 ohm) resistor. See Fig 1 .
  2. A test washer pump may be connected during test procedure. DO NOT use pump from vehicle. When using washer pump, DO NOT hold WASH button longer than 15 seconds in each 2 minute interval. If wiper motor fails to operate in all modes, replace wiper motor.

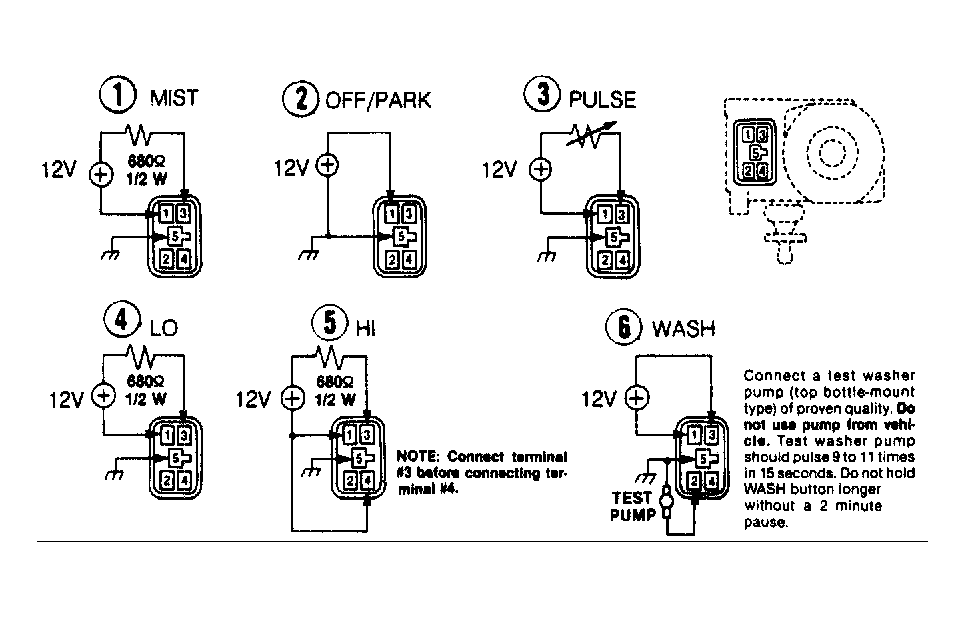

Fig 1: Identifying Front Wiper Motor Test Points
G90I13571Courtesy of GENERAL MOTORS CORP.
