Installation (Front Doors)

Install inside remote handle to module assembly by placing tabs on handle into slots in module and sliding forward.
Install rod to handle.
Install rivet using 3/16 x 1/4 inch peel type rivets.
Install water deflector. See WATER DEFLECTOR .
Install trim panel.

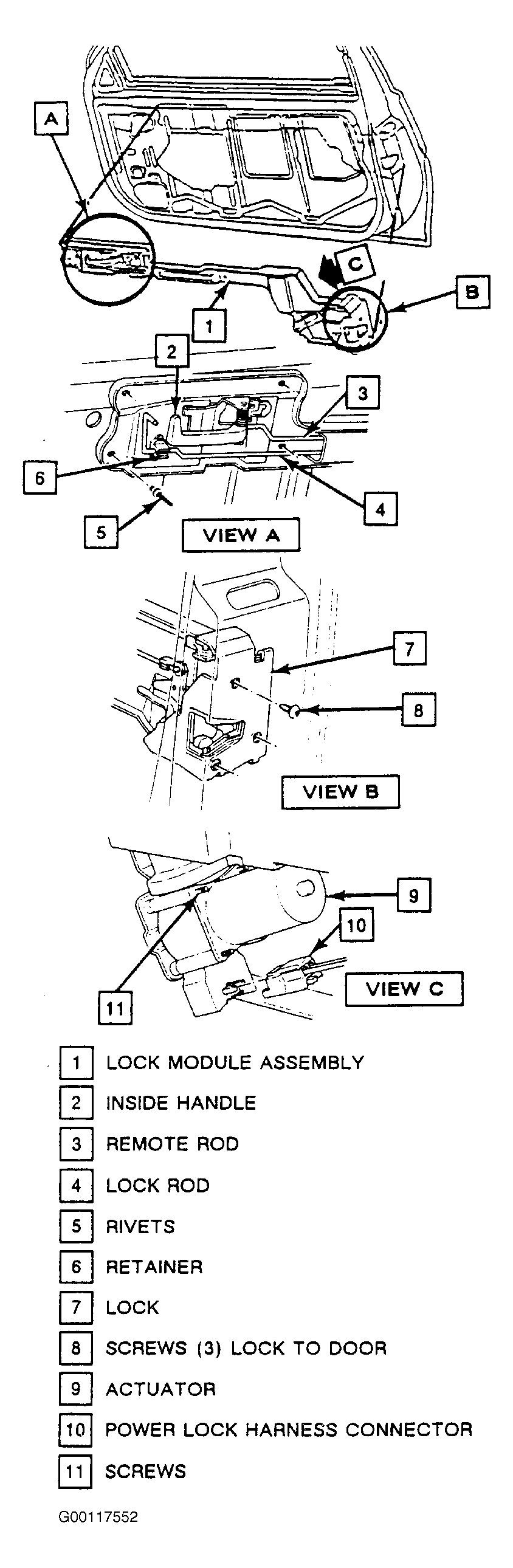

Fig 1: Identifying Front Door Lock Module Assembly(Corsica)

Courtesy of GENERAL MOTORS CORP.

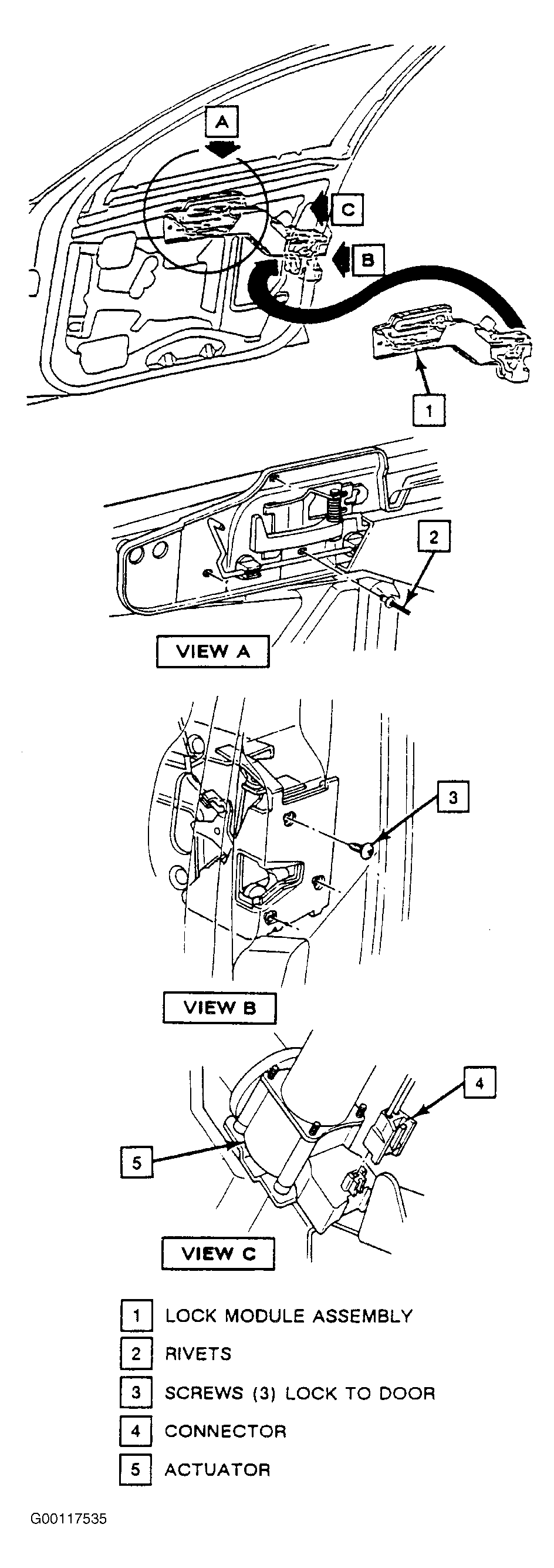

Fig 2: Identifying Door Lock Module (Corsica)

Courtesy of GENERAL MOTORS CORP.

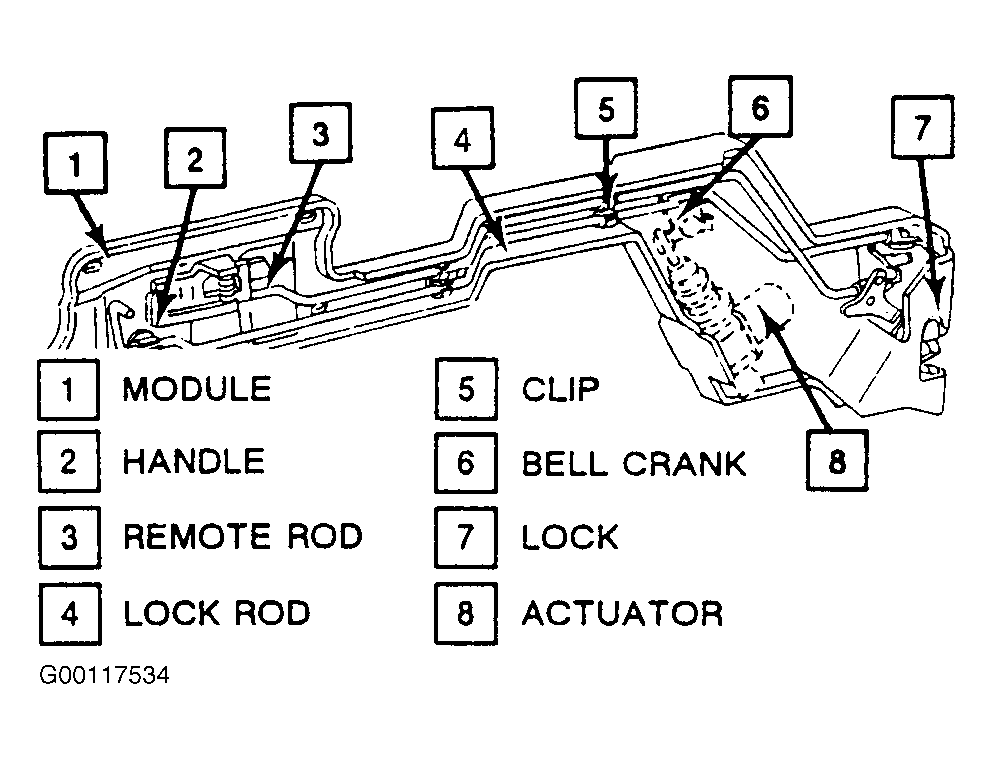

Fig 3: Identifying Door Lock Module Assembly (Beretta)

Courtesy of GENERAL MOTORS CORP.
